E-FORCE SUPERCHARGER FOR 2010-15 CAMARO SS L99 AUTOMATIC TRANSMISSION

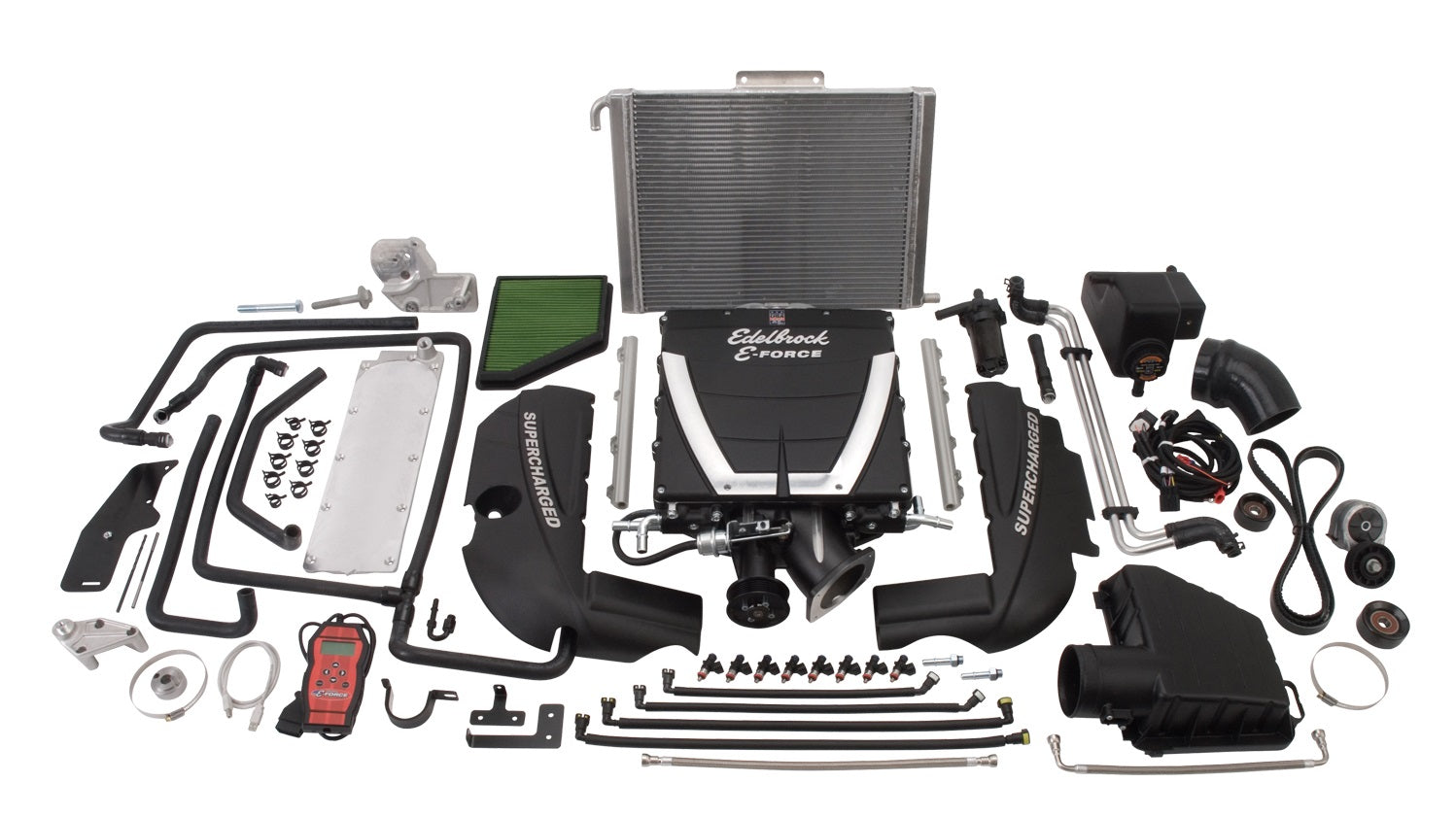

Brand New Edelbrock Stage 1 Supercharger Kit Compatible with 2010-2015 Camaro SS L99 Auto Trans with Tuner (Part #1562).

The Edelbrock supercharger Stage 1 Street System for 2010-15 Camaro SS with an automatic transmission increases the performance of your L99 engine to 421 horsepower and 439 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential.

Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Compatible with:

• Chevrolet:
  • 2010-2015 Camaro SS with L99 Engine & Auto Trans

Specs:

• System Type: Stage 1 - Street System

• Housing Material: Cast Aluminum
• Oil Capacity: 150 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 6-Rib

• Outside Pulley Diameter: 3.875 in

• Maximum Torque: 439RW ft-lb

• Maximum Horsepower: 421 RWHP

• Finish: Black Powder Coated

• Maximum Boost Pressure: 5.5 PSI


You can view and download the complete assembly instruction booklet here and here.
