E-FORCE SUPERCHARGER FOR 2013-19 BRZ/FR-S/86 2.0L - NO TUNER

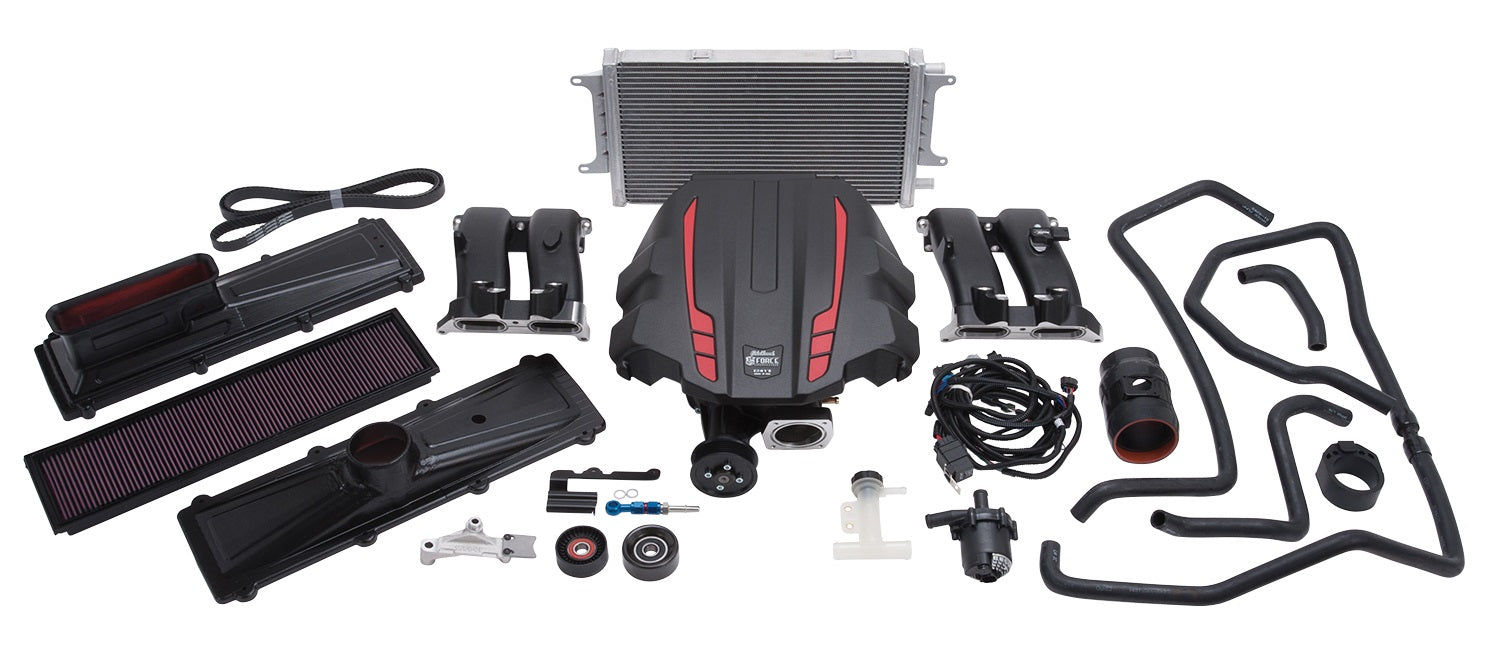

Brand New Edelbrock Stage 1 Supercharger Kit Compatible with 2013-2019 Subaru BRZ, Scion FR-S, Toyota 86 2.0L without Tuner (Part #15560).

The Edelbrock Stage 1 Street Supercharger System without tuner for 2012-19 Scion FR-S, BRZ, or Toyota GT86 increases the performance of your 2.0L engine to 242 horsepower and 186 ft-lbs of torque at the rear wheels. This Edelbrock Supercharger System is designed exclusively for the FA20/4U-GSE engine. It's unique inverted design allows for maximum flow, while retaining great daily driving characteristics. It has been designed from the ground-up and utilizes the Eaton 1320 TVS rotor assembly for maximum efficiency in a compact package.

As with all Edelbrock superchargers, this system features an efficient high flow inlet configuration that results in a shorter, less restrictive intake path for improved airflow and performance. To cool the incoming air, is a large air-to-water intercooler and heat exchanger. All of these features help the Edelbrock deliver dramatically improved performance, especially in the mid-range, where power dips have been eliminated for a smooth linear power curve. Lastly, the supercharger assembly is finished with a durable black powder coating with red accents for a unique look that will let everybody know your car is Edelbrock powered. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

Compatible with:

• Scion:
  • 2013-2016 FR-S 2.0L Engine
• Subaru:
  • 2013-2019 BRZ 2.0 L Engine
• Toyota:
  • 2013-2019 86 2.0L Engine

Specs:

• System Type: Stage 1 - Street System

• Housing Material: Cast Aluminum
• Oil Capacity: 125 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 6-Rib

• Outside Pulley Diameter: 3.25 in

• Maximum Torque: 186RW ft-lb

• Maximum Horsepower: 242 RWHP

• Finish: Black Powder Coated

• Maximum Boost Pressure: 9 PSI

You can view and download the complete assembly instruction booklet here and here.
