E-FORCE SUPERCHARGER FOR 2013-19 SUBARU BRZ/SCION FR-S/TOYOTA 86 2.0L

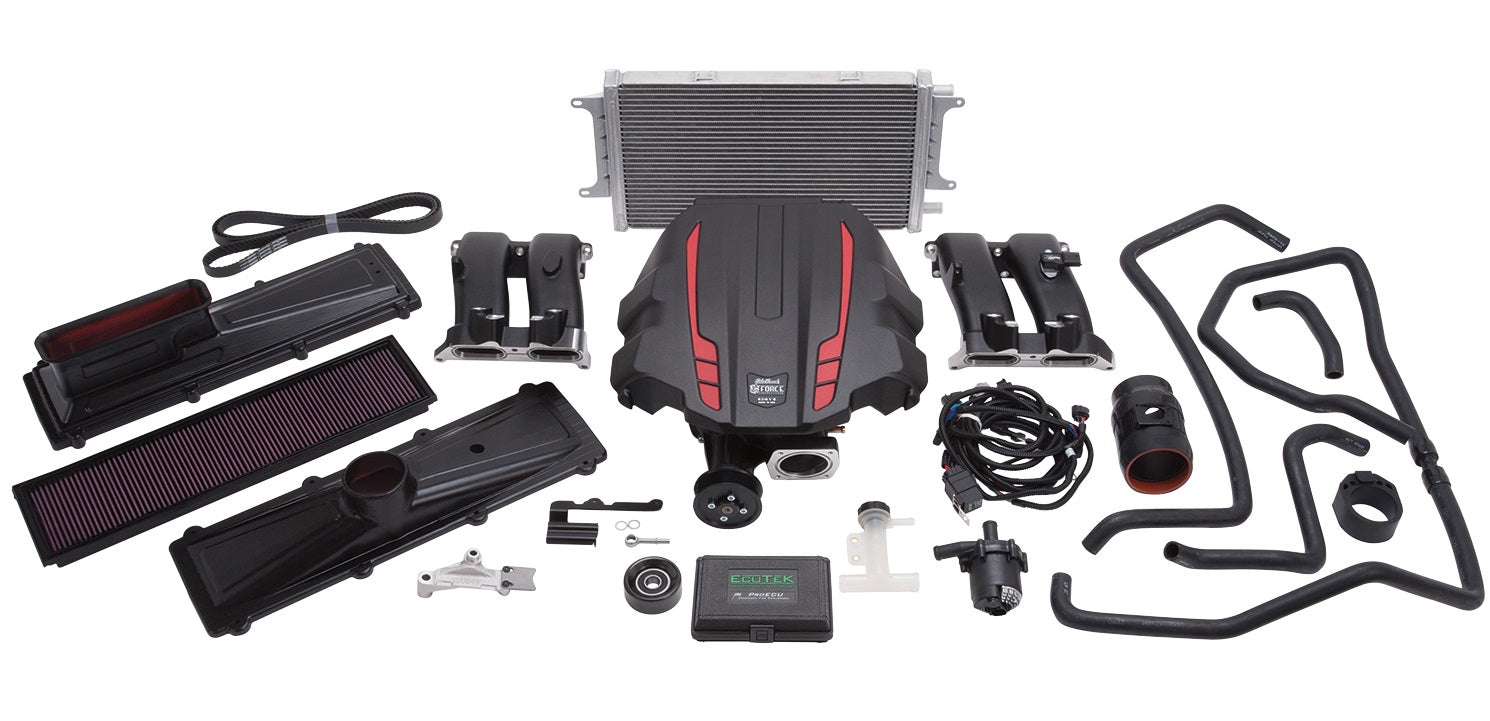

Brand New Edelbrock Stage 1 Supercharger Kit Compatible with 2013-2019 Subaru BRZ, Scion FR-S, Toyota 86 2.0L with Tuner (Part #1556).

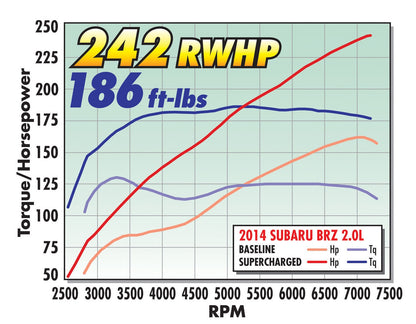

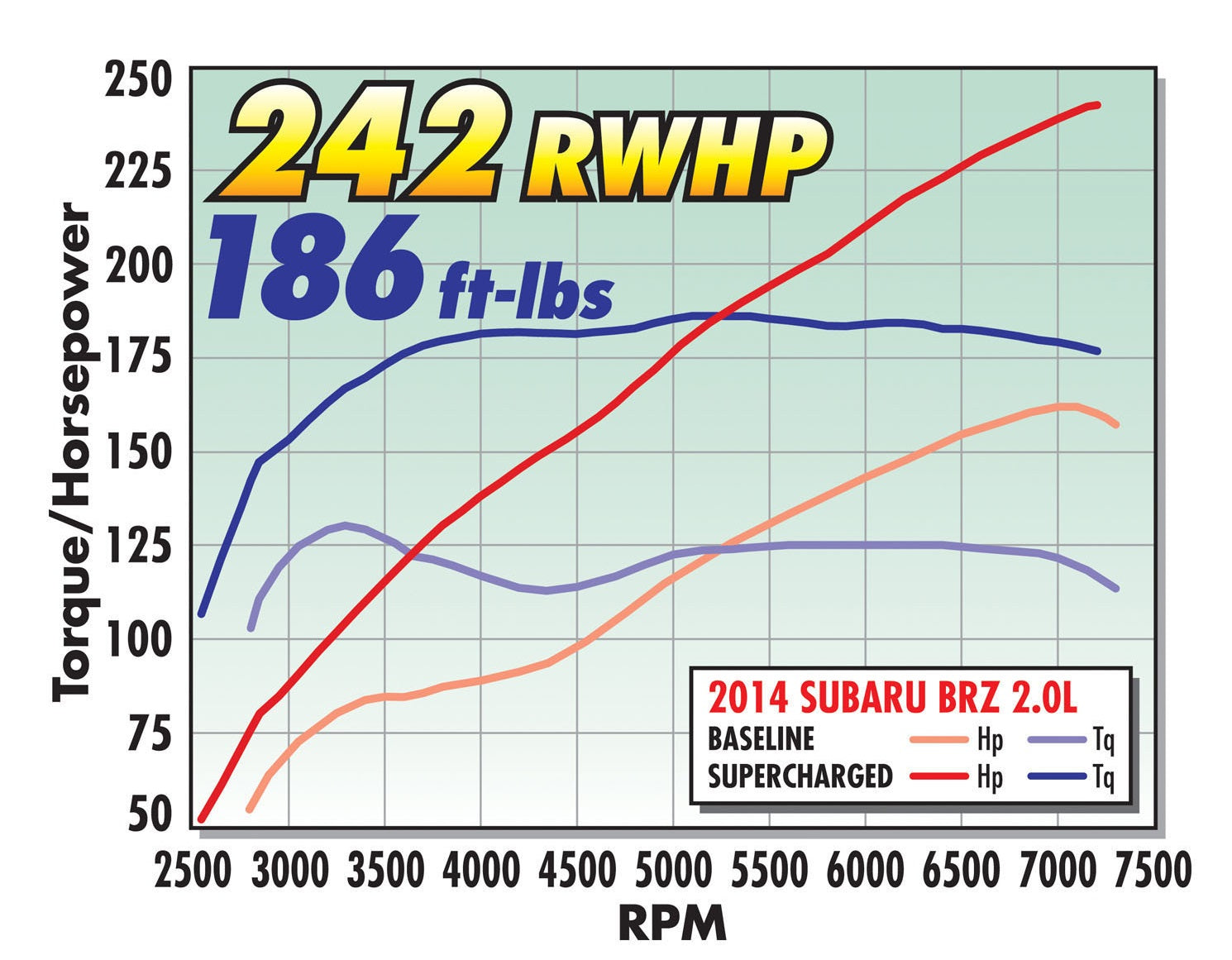

The Edelbrock Stage 1 Street Supercharger System for 2012-19 Scion FR-S, BRZ, or Toyota GT86 increases the performance of your 2.0L engine to 242 horsepower and 186 ft-lbs of torque at the rear wheels. This Edelbrock Supercharger System is designed exclusively for the FA20/4U-GSE engine. Its unique inverted design utilizes the Eaton 1320 TVS rotor assembly for maximum efficiency in a compact package. This system features an efficient high flow inlet configuration that results in a shorter, less restrictive intake path for improved airflow and performance.

An air-to-water intercooler and front mount heat exchanger deliver a cool, dense air charge resulting in dramatically improved performance, especially in the mid-range, where power dips have been eliminated for a smooth linear power curve. The supercharger assembly is finished with a durable black powder coating with red accents for a unique look that will let everybody know your car is Edelbrock supercharged! The Edelbrock system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Compatible with:

• Scion:
  • 2013-2016 FR-S 2.0L Engine
• Subaru:
  • 2013-2019 BRZ 2.0 L Engine
• Toyota:
  • 2013-2019 86 2.0L Engine

Specs:

• System Type: Stage 1 - Street System

• Housing Material: Cast Aluminum
• Oil Capacity: 125 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 6-Rib

• Outside Pulley Diameter: 3.25 in

• Maximum Torque: 186RW ft-lb

• Maximum Horsepower: 242 RWHP

• Finish: Black Powder Coated

• Maximum Boost Pressure: 9 PSI

You can view and download the complete assembly instruction booklet here and here.
