SC, 2016-18 MAZDA MX-5 2.0L SKYACTIV

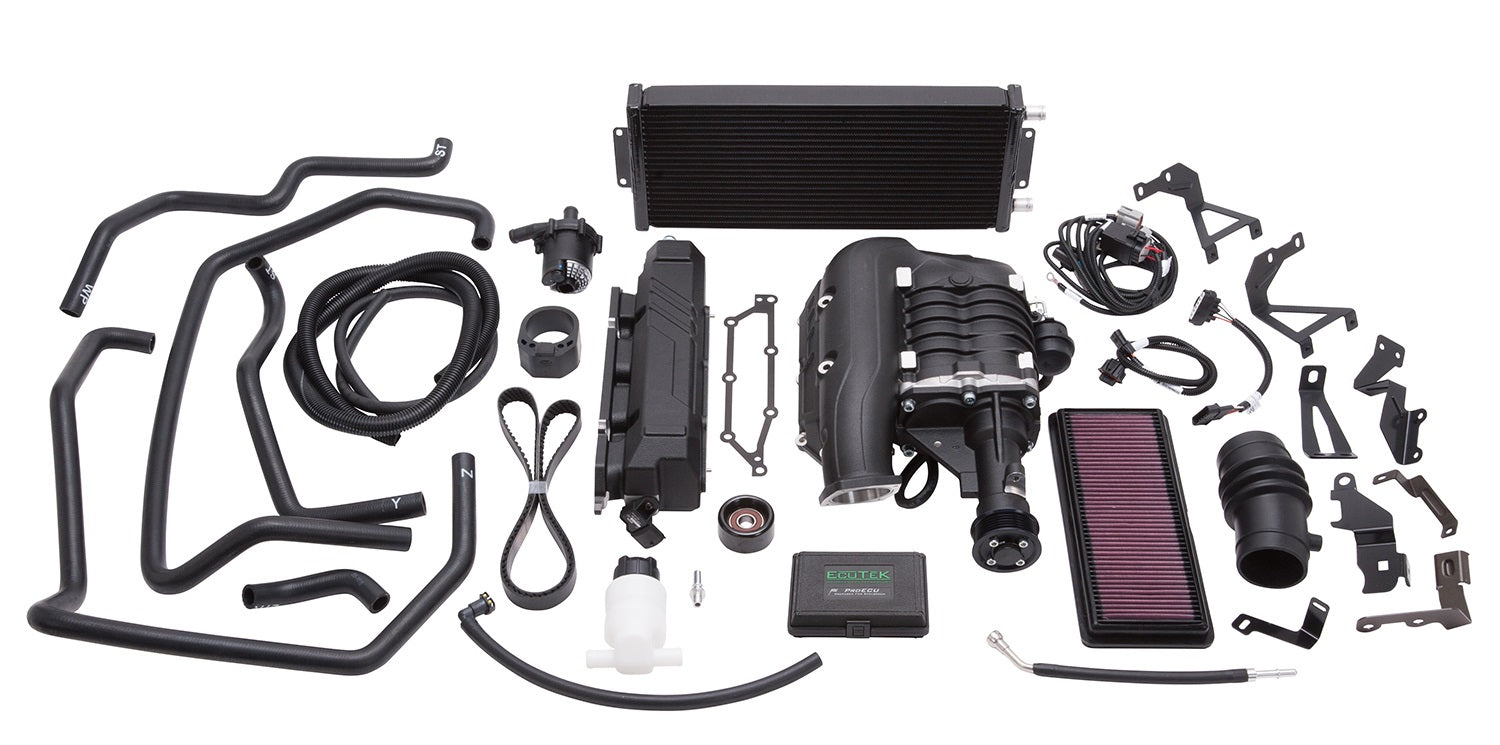

Brand New Edelbrock Stage 1 Supercharger Kit Compatible with 2016-2018 Mazda MX-5 Miata 2.0L with Tuner (Part #1554).

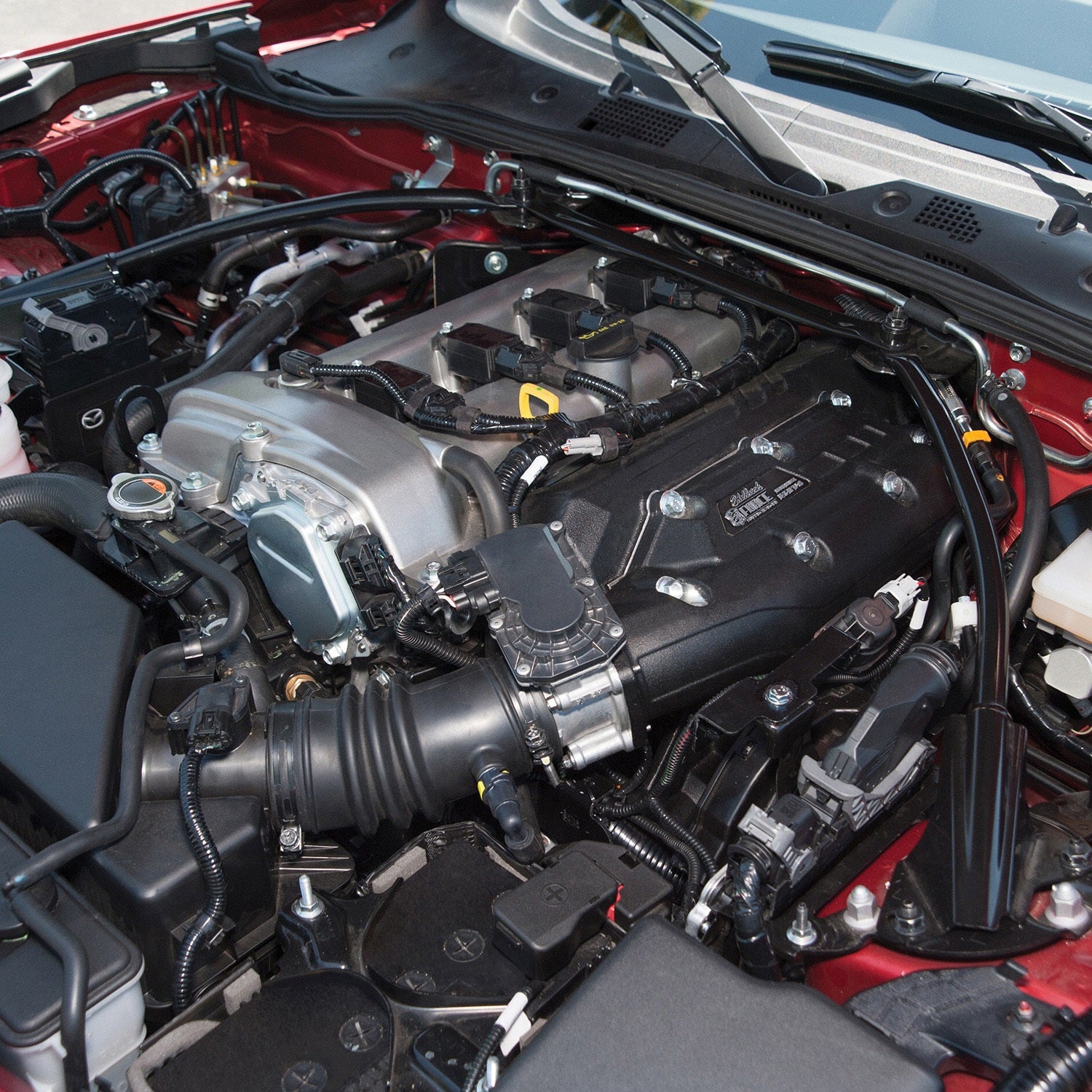

The Edelbrock Stage 1 Street Supercharger system for 2016-2018 Mazda MX-5 Miata increases the performance of your SKYACTIV -G 2.0L engine to 198 RWHP and 182 ft-lbs of torque at the rear wheels. Its unique design utilizes the Eaton R900 TVS rotor assembly for maximum efficiency in a compact package. An air-to-water intercooler and front mount heat exchanger deliver a cool, dense air charge resulting in dramatically improved performance with a smooth and linear power curve. The supercharger assembly is finished with a durable black powder coating that integrates seamlessly into the Miata engine bay.

Increases horsepower by 41% and torque by 36% over stock. Unique compact design fits under the stock hood. Supplied with preformed hoses for ease of installation - no trimming needed. Bolt-on installation - everything fits right out of the box with no cutting or welding needed. Features Eaton Gen VI R900 TVS rotor assembly; the same high-quality rotors used by many OEM manufacturers. Self-contained oil system with 100,000 mile service interval (no drilling or plumbing required). Includes an EcuTek Pro ECU Programming Kit with Edelbrock tune. Integrated bypass valve for minimal decrease in fuel economy.

Compatible with:

• Mazda:
  • 2016-2018 MX-5 Miata 2.0L

Specs:

• System Type: Stage 1 - Street System

• Housing Material: Cast Aluminum
• Oil Capacity: 125 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 6-Rib

• Outside Pulley Diameter: 2.75 in

• Maximum Torque: 182RW ft-lb

• Maximum Horsepower: 198 RWHP

• Finish: Black Powder Coated

• Maximum Boost Pressure: 8.25 PSI

You can view and download the complete assembly instruction booklet here and here.
