SC STAGE II R2650 2018-21 FORD MUSTANG 5.0L V8 ENGINES

Brand New Edelbrock Stage 2 Complete Supercharger Compatible with 2018-2021 Ford Mustang 5.0L with Tuner (Part #15388).

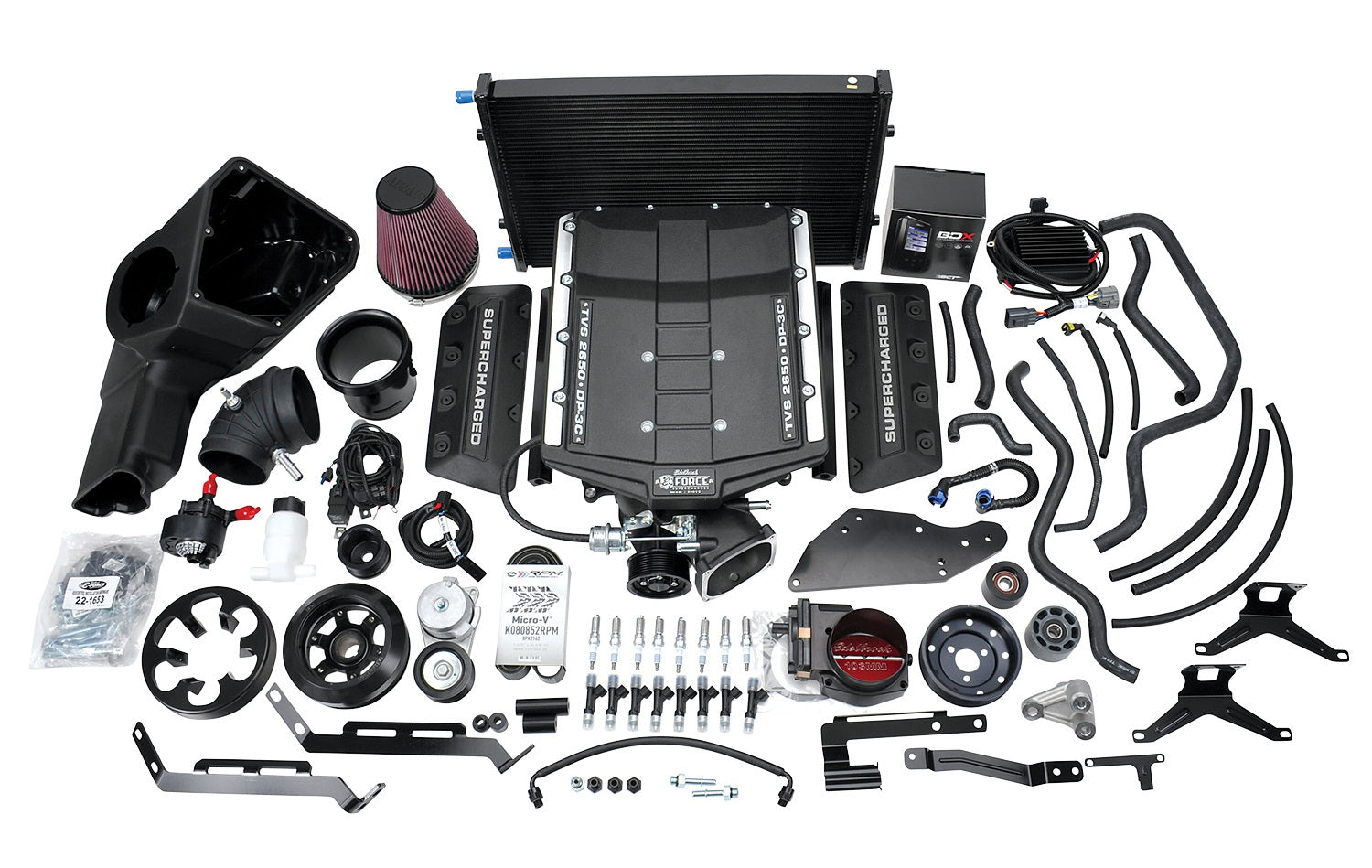

Edelbrock's highest horsepower, supercharger system is now available for owners of late-model Ford Mustangs with the 5.0L engine. The new Edelbrock Stage II Supercharger for the 2018-21 Mustang is a complete kit that takes full advantage of the improved Gen 3 DI/PI Coyote engine. At the heart of this system is the highly efficient R2650 TVS rotor assembly with an integrated high-capacity DP3C (dual-pass, three-core) air-to-water intercooler for lower inlet air temperatures and increased power potential. New 170-degree high-twist lobes, bigger bearings and beefier timing gears ensure unparalleled reliability with smooth acceleration throughout the powerband.

To support the additional Stage II power increase, the fuel system components are upgraded to include larger 50 lb/hr direct-port fuel injectors along with a Fuel Pump Voltage Booster. A dramatic increase in airflow over the Stage I kit comes from a new 103mm billet aluminum throttle body (23mm larger than Stage I) and high-flow air intake system with 113mm MAF housing. Edelbrock's 8-Rib Drive Belt upgrade minimizes slippage to maintain consistent boost pressure under full throttle.

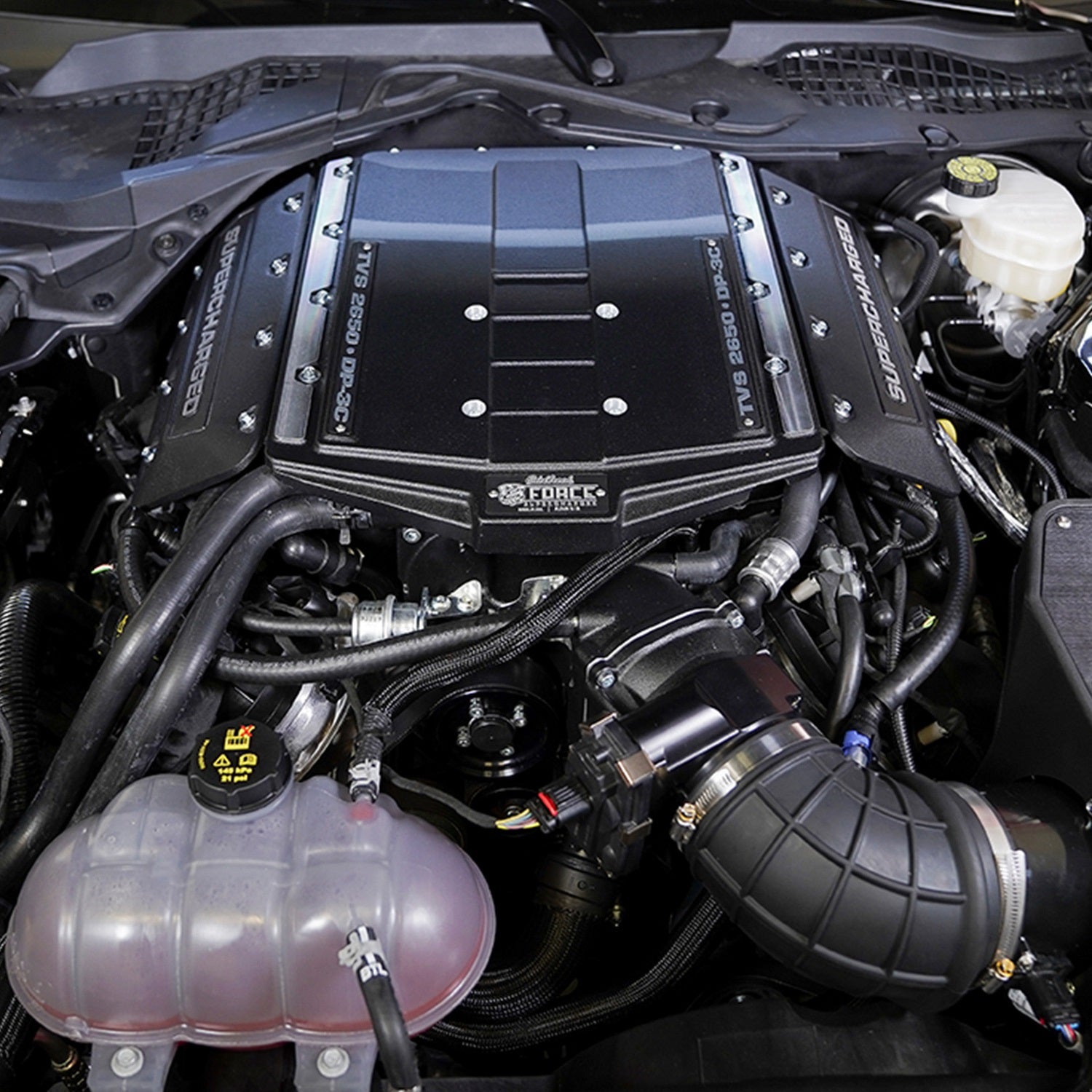

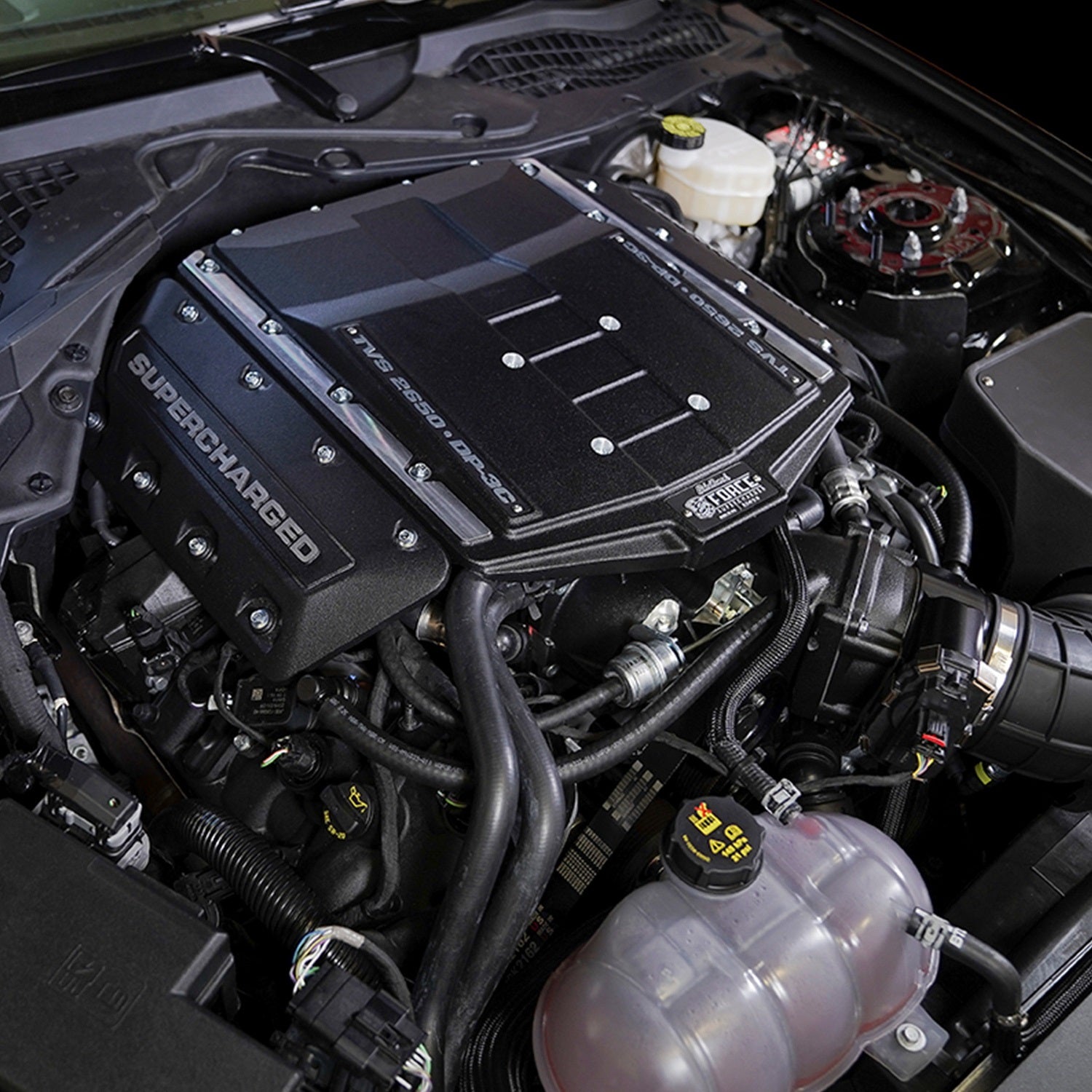

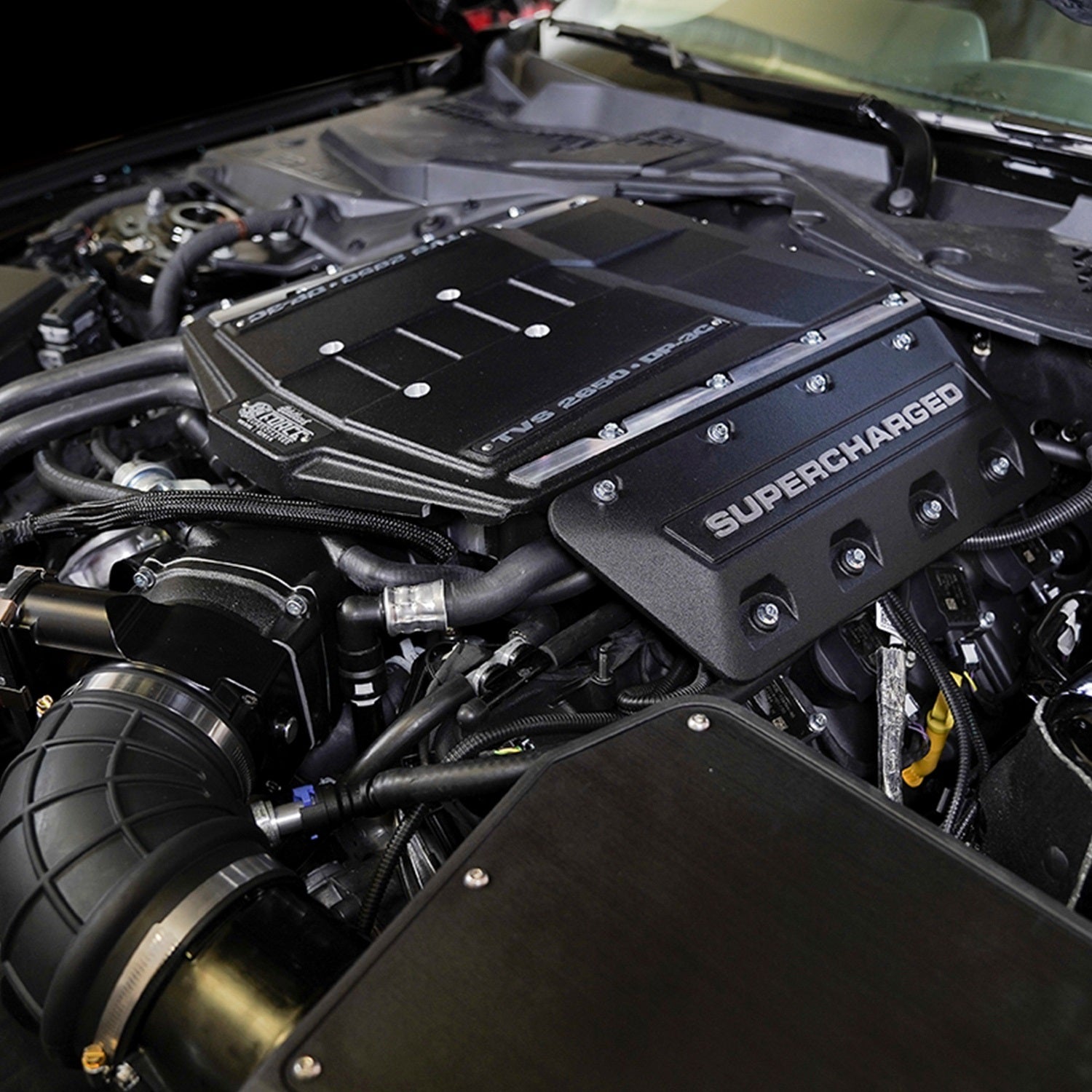

Each supercharger comes finished with a durable black powder-coating that blends nicely into the Mustang engine compartment and includes a preformed hose kit, hardware and a full-color step-by-step instruction manual to streamline the installation process. This is a true bolt-on that installs cleanly with no modifications to the hood or body.

Compatible with:

• Ford:
  • 2018-2021 Mustang 5.0L Engine

Specs:

• System Type: Stage 2 - Street/Strip System

• Housing Material: Cast Aluminum
• Oil Capacity: 150 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 8-Rib

• Outside Pulley Diameter: 3.5 in

• Sparkplugs Included: Yes

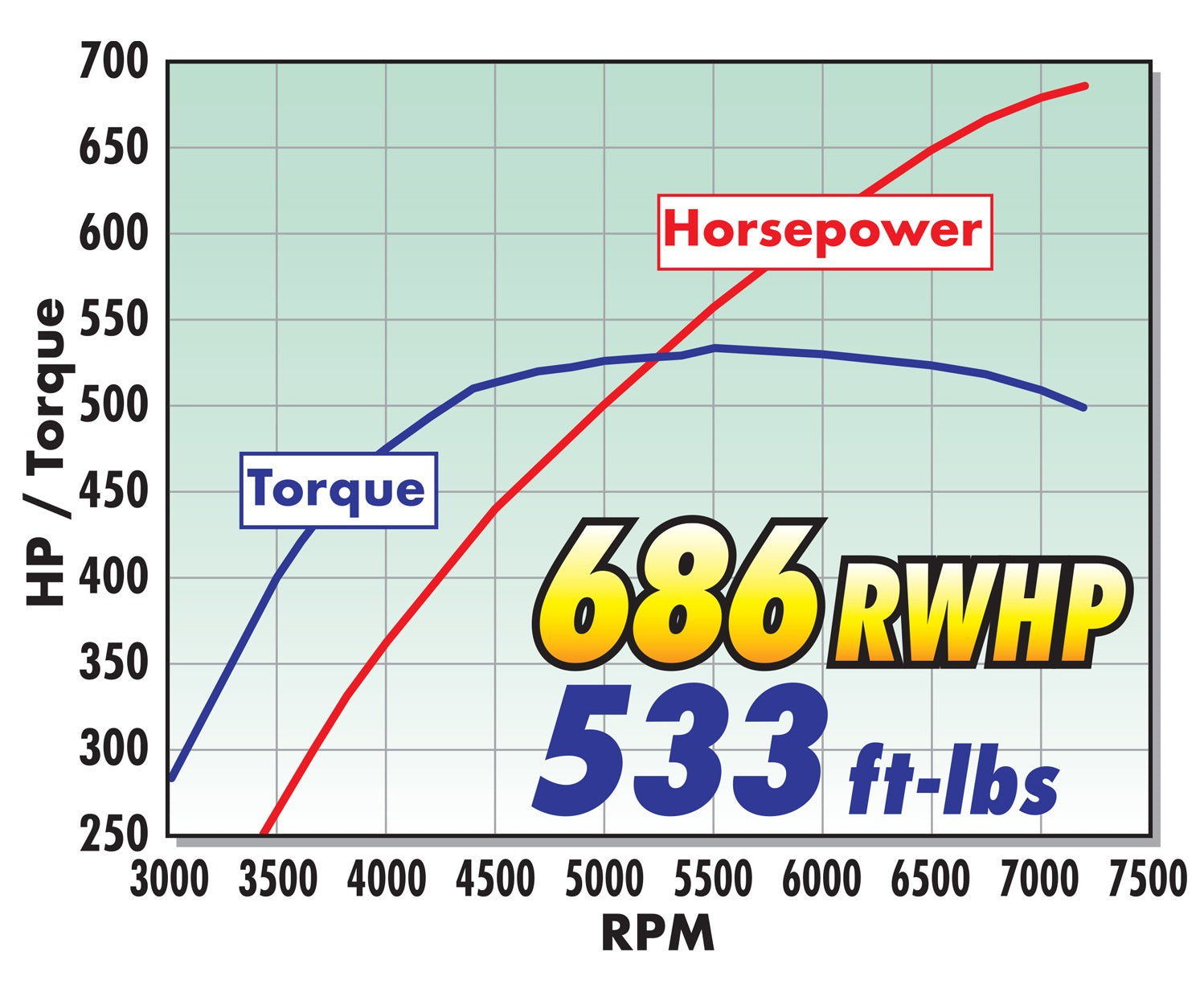

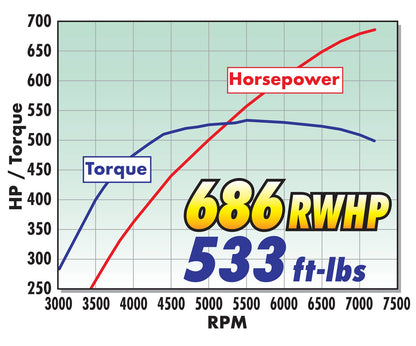

• Maximum Torque: 533RW ft-lb

• Fuel Injector Type: 50 lb/hr

• Maximum Horsepower: 686 RWHP

• Rotor Type: Eaton TVS 2650

• Finish: Black Powder Coated

• Maximum Boost Pressure: 16.3 PSI

You can view and download the complete assembly instruction booklet here and here.
