E-FORCE SUPERCHARGER FOR 2009-14 RAM 1500 5.7L - NO TUNER

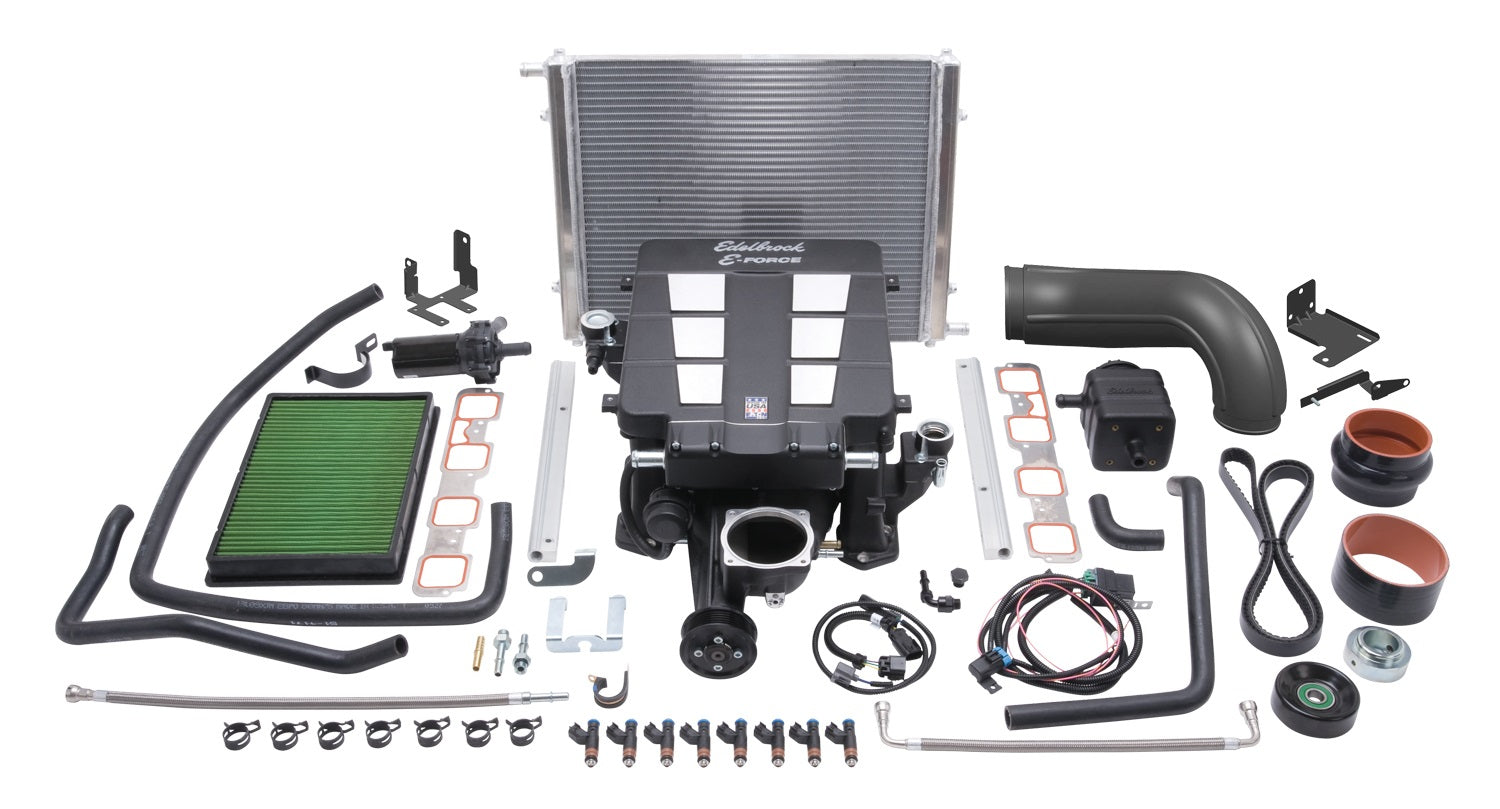

Brand New Edelbrock Stage 1 Supercharger Kit Compatible with 2009-2014 Dodge Ram 1500 5.7L without Tuner (Part #15380).

The Edelbrock Supercharger System is designed for your 2009-14 5.7L HEMI Dodge Ram Truck and produces 439 RWHP and 444 RWTQ. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.

Compatible with:

• Dodge:
  • 2009-2014 Ram 1500 with 5.7L HEMI


Installation Notes:

• 2014 Ram trucks with 6 speed automatic transmissions are not supported with ECM tune.

Specs:

• System Type: Stage 1 - Street/Strip System

• Housing Material: Cast Aluminum
• Oil Capacity: 150 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 6-Rib

• Outside Pulley Diameter: 3.25 in
• Maximum Torque: 444 RW ft-lb

• Fuel Injector Type: 46 lb/hr

• Maximum Horsepower: 439 RW

• Finish: Black Powder Coated

• Maximum Boost Pressure: 5 PSI

You can view and download the complete assembly instruction booklet here and here.
