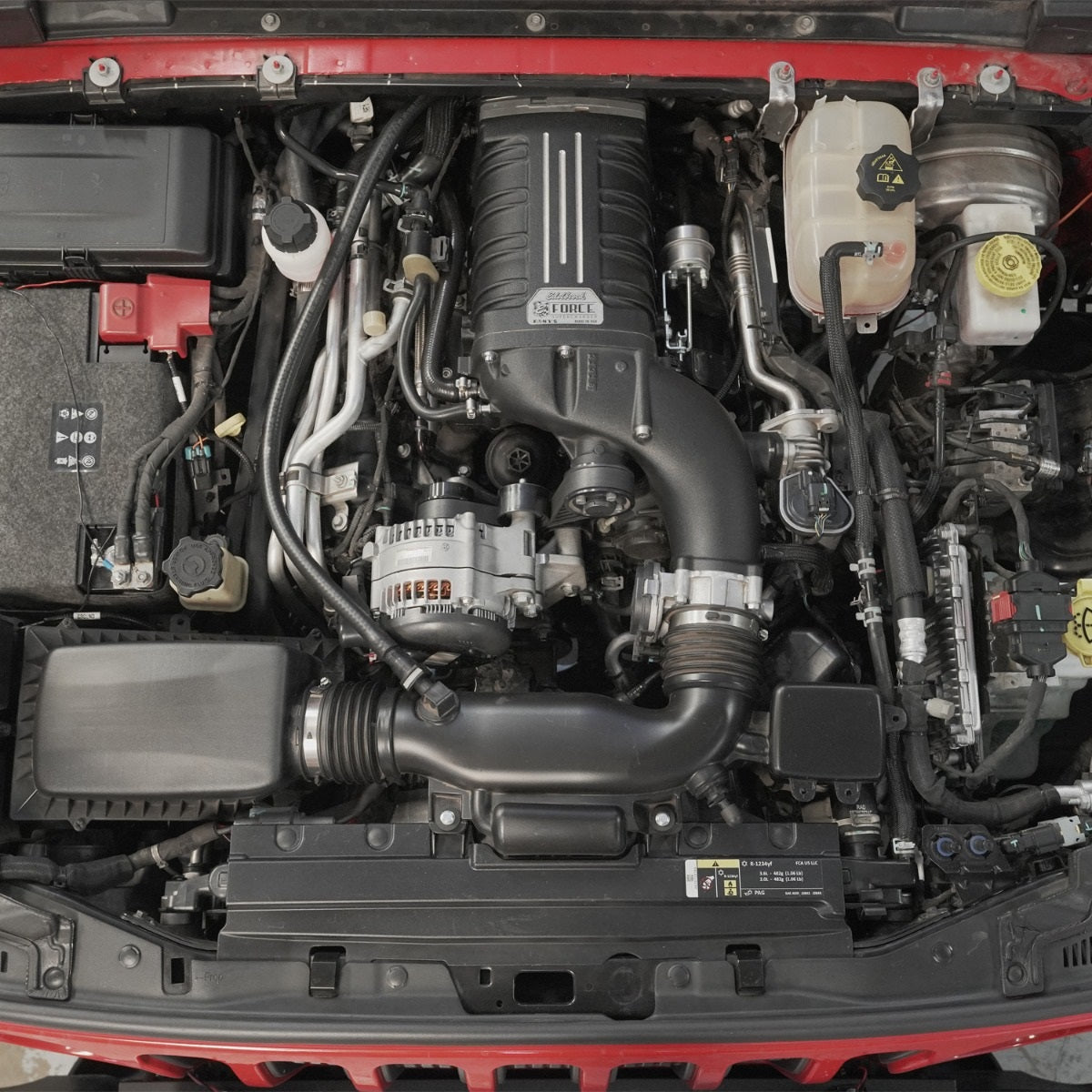

SC JEEP 2018 - 20 WRANGLER JL 2020 GLADIATOR JT 3.6L V6 PENTASTAR

Brand New Edelbrock Stage 1 Supercharger Compatible with 2018-2020 Jeep Wrangler JL and Gladiator JT with Tuner (Part #15284).

The industry's most reliable forced induction system is now available for the 2018-2020 Jeep Wrangler JL and Gladiator JT with the 3.6L Pentastar V6 engine. The Edelbrock Supercharger With Tuner is engineered to deliver a 46% increase in rear-wheel horsepower with 26.9% more rear-wheel torque in a 50-state emissions-legal bolt-on kit that fits under the factory hood with no modification. This kit features the latest TVS R1320 rotor assembly in an Edelbrock supercharger housing mated to a lower manifold with a high-capacity dual-pass intercooler.

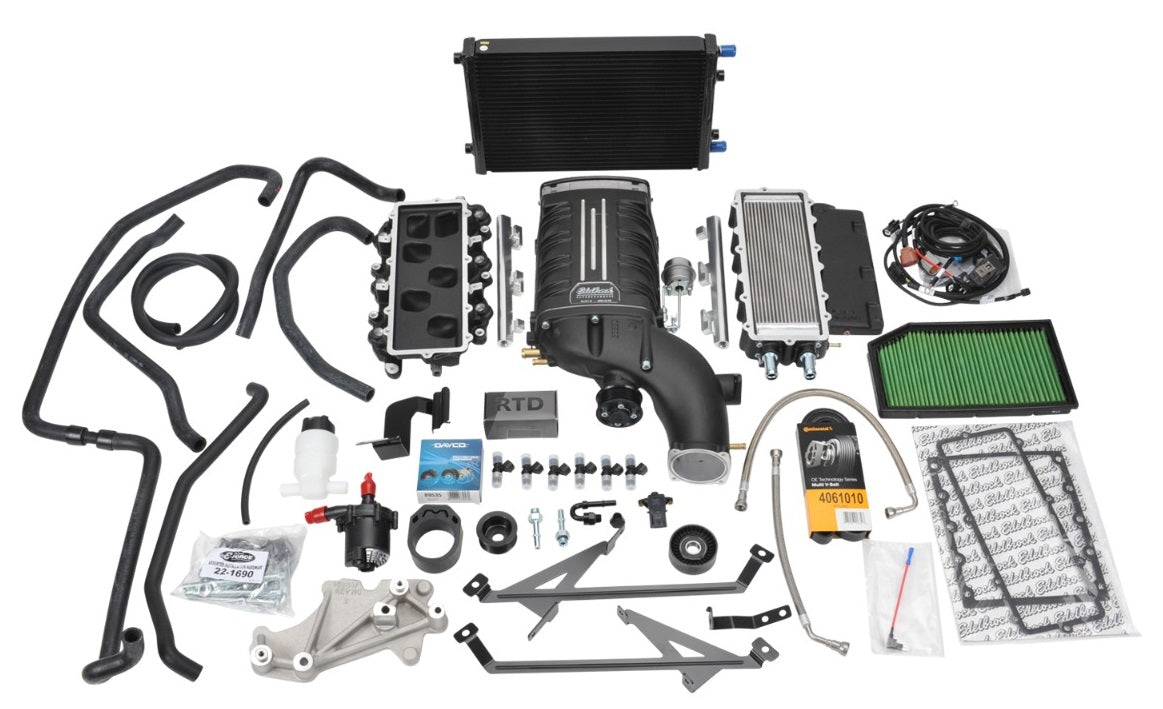

An integrated bypass valve helps to eliminate parasitic power loss under light throttle while helping to improve mileage potential under normal driving conditions. This kit comes with all necessary hardware, hoses, tuner and full-color installation manual to simplify the installation. Edelbrock Superchargers for the 2018-20 Jeep JL/JT are manufactured by Edelbrock in the USA. Not compatible with eTorque Hybrid models.

Compatible with:

• Jeep:
  • 2018-2020 Jeep Wrangler JL with 3.6L (Non-Hybrid)
  • 2020 Gladiator JT with 3.6L (Non-Hybrid)

Specs:

• System Type: Stage 1 - Street System

• Housing Material: Cast Aluminum
• Oil Capacity: 125 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 6-Rib

• Outside Pulley Diameter: 2.625 in
• Maximum Torque: 272 RW ft-lb Auto

• Maximum Horsepower: 331 RWHP Auto

• Finish: Black Powder Coated

• Maximum Boost Pressure: 8 PSI

You can view and download the complete assembly instruction booklet here and here.
