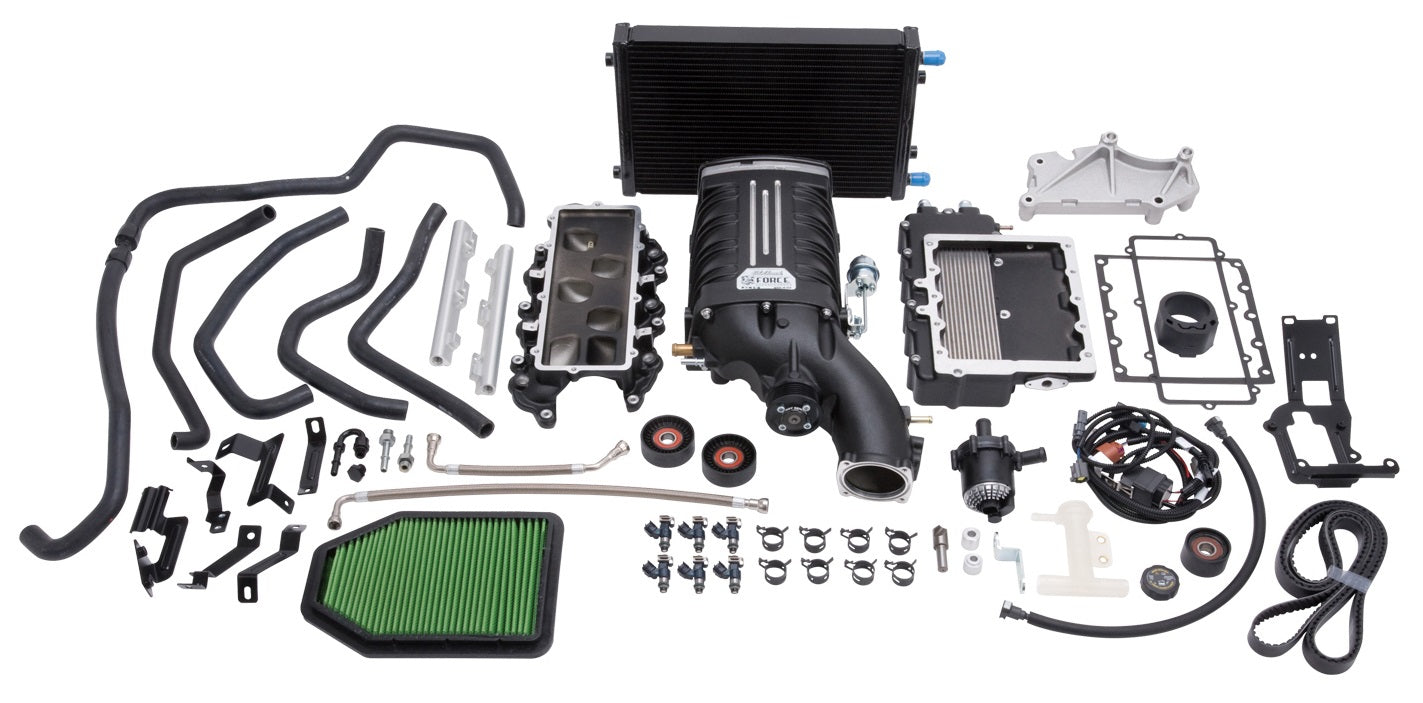

E-FORCE SUPERCHARGER FOR 2015-18 JEEP WRANGLER 3.6L

Brand New Edelbrock Stage 1 Supercharger Compatible with 2015-2018 Jeep Wrangler JK 3.6L with Tuner (Part #1528).

The Edelbrock Supercharger System for your 2015-18 Wrangler delivers 317 RWHP and 277 RWTQ for a manual and 303 RWHP and 262 RWTQ for an automatic. This Supercharger is exclusively for the Pentastar 3.6L V6 Engine featuring a unique design with minimal components make it possible to fit under the stock hood. The core of each system is the Eaton Gen VI 1320 TVS rotating assembly with a four-lobe design and 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability.

We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path that for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. Part #1528 will require the ECM and TCM to be sent into Edelbrock for modification, no handheld programmer is included with these systems. This is an 8-10 day process/waiting period from the time they are received.

Compatible with:

• Jeep:
  • 2015-2018 Wrangler JK 3.6L

Specs:

• System Type: Stage 1 - Street System

• Housing Material: Cast Aluminum
• Oil Capacity: 125 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 6-Rib

• Outside Pulley Diameter: 2.625 in
• Maximum Torque: 277 RW ft-lb Manual/235 RW Auto

• Maximum Horsepower: 317 RWHP/285 RW Auto

• Finish: Black Powder Coated

• Maximum Boost Pressure: 8 PSI

You can view and download the complete assembly instruction booklet here and here.
