SC 2017-22 CHEVY COLORADO/GMC CANYON GEN 2 HFV6 ENGINE

Brand New Edelbrock Stage 1 Supercharger Compatible with 2017-2022 Colorado/Canyon 3.6 L with Tuner (Part #1518).

Edelbrock has exciting news for owners of the updated 2017-2022 Chevy Colorado and GMC Canyon pickup with the new Gen 2 LGZ 3.6L V6 engine: they've released their supercharger kit for the popular midsize truck equipped with the second-generation HFV6 engine. If you opted for the "best in class" horsepower of the V6 but wish you had even more passing power and torque to haul, this supercharger for the 2017-2021 Chevy Colorado and GMC Canyon lets you have the best of both worlds.

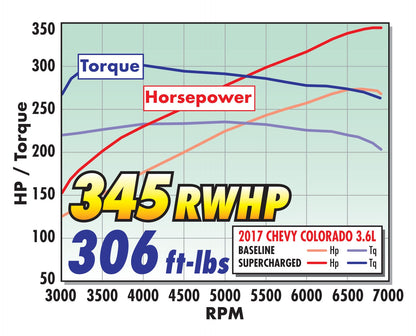

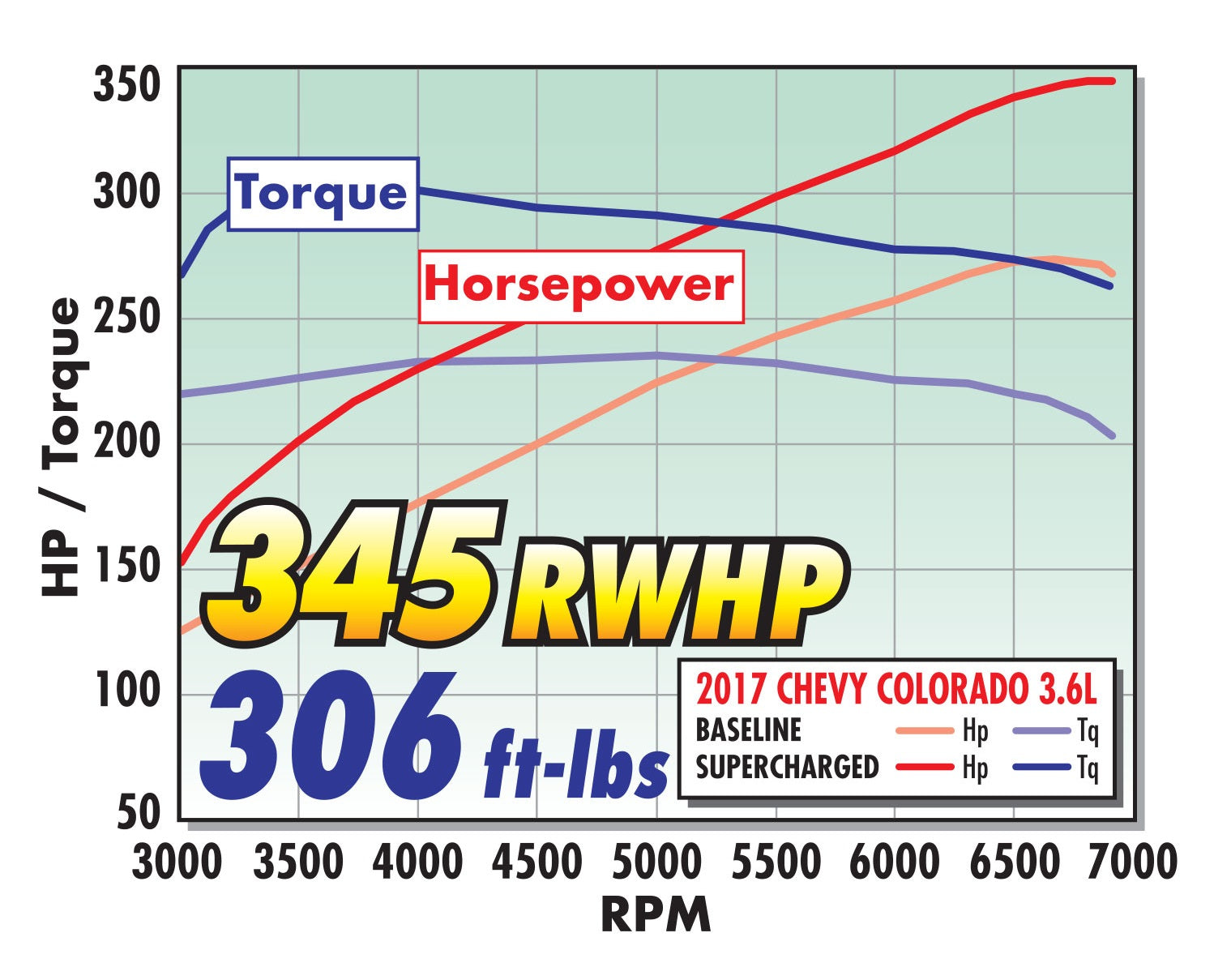

With 345 horsepower and 306 ft-lbs of torque at the rear wheels, this Edelbrock supercharger boosts the V6 engine's power output by 24% and is designed to fit seamlessly under the stock Colorado/Canyon hood with no permanent modifications. The heart of the system is the R1740 TVS head unit that sits on top of an air-to-water intercooled manifold for low inlet air temperatures and increased power. The supercharger is finished with a durable, black powder-coating so the system looks as good as it performs. Other Features Include: Integrated bypass valve for minimal decrease in fuel economy.

NOTE: 2021-2022 Models with require the ECU to be shipped to Edelbrock.

Compatible with:

• Chevrolet:
  • 2017-2022 Colorado with 3.6L
• GMC:
  • 2017-2022 Canyon with 3.6L

Specs:

• System Type: Stage 1 - Street System

• Housing Material: Cast Aluminum
• Oil Capacity: 125 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 5-Rib

• Outside Pulley Diameter: 3.75 in
• Maximum Torque: 306 RW ft-lb

• Maximum Horsepower: 345 RWHP

• Finish: Black Powder Coated

• Maximum Boost Pressure: 10 PSI

You can view and download the complete assembly instruction booklet here and here.
