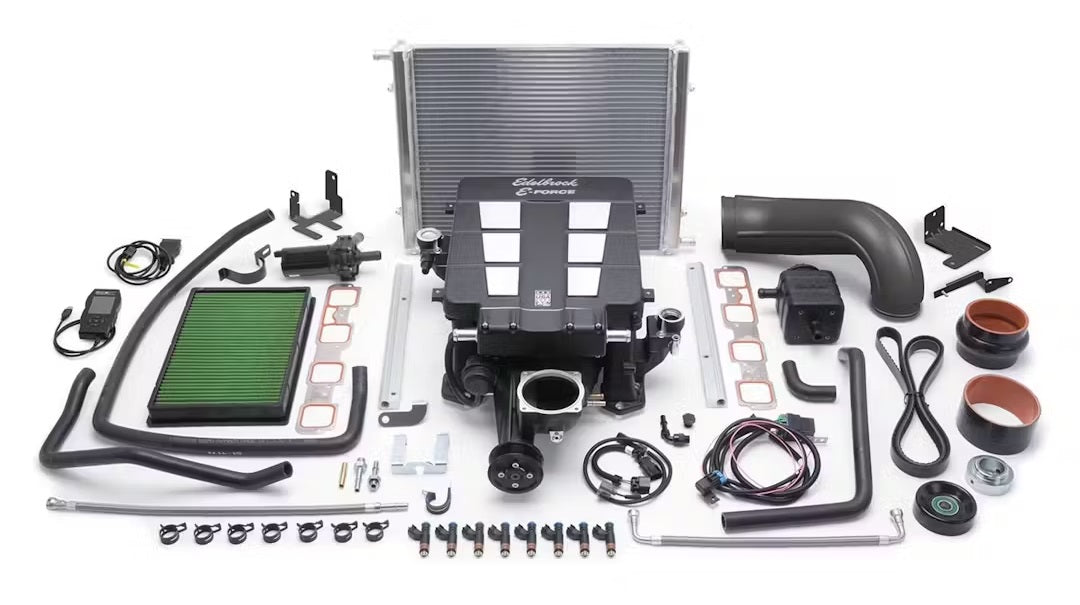

SC 2015-18 RAM 1500 TRUCK 5.7L HEMI V8

Brand New Edelbrock Stage 1 Supercharger Compatible with 2015-2018 Ram 1500 5.7L without Tuner (Part #15175).

The Edelbrock Supercharger System for 2015-18 Dodge RAM trucks equipped with a 5.7 HEMI V8 engine delivers 439 RWHP and 444 RWTQ. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of each system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential.

Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. All 2015-Later Chrysler/Dodge Supercharger Systems will require the ECM to be sent in for modification. This is an 8-10 day process/waiting period from the time they are received. Handheld tuner not included.

Compatible with:

• Ram:
  • 2015-2018 1500 with 5.7L

Specs:

• System Type: Stage 1 - Street System

• Housing Material: Cast Aluminum
• Oil Capacity: 150 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 6-Rib

• Outside Pulley Diameter: 3.25 in
• Maximum Torque: 444 RW ft-lb

• Maximum Horsepower: 439 RWHP

• Finish: Black Powder Coated

• Maximum Boost Pressure: 14 PSI

You can view and download the complete assembly instruction booklet here and here.
