LSXR INTAKE KIT,LS3,L76,L99,102MM SILVER MECHANICAL THROTTLE BODY

Brand New Fast LSXR Intake Kit for GM LS3, L76, & L99 Rectangle Port Engines with Mechanical Throttle Body (Part #146102B-KIT).

The LSXR intake manifold offers several benefits over aluminum aftermarket intakes, including lighter weight, increased strength, and improved heat dissipating characteristics. The LSXR features a 102mm air inlet that is perfectly suited to the FAST Big Mouth 102mm throttle body. Other features include integrated nitrous bungs and perfect bolt-on fitment that allows the use of factory accessories without modification or clearance concerns. The fuel injector kit allows the use of the factory LS3, L76, and L99 fuel rails with FAST LSXR intake manifold.

These throttle bodies offer increased throttle blade thickness to eliminate deflection commonly found with other throttle bodies, especially those in boosted applications. A smoother operating offset blade pivot improves throttle response, and a beefed up linkage and dual throttle spring mechanism ensure total throttle control. Constructed from billet aluminum, the FAST Big Mouth 102mm Throttle Body with TPS and IACis designed to maximize performance upgrades on all Gen III and Gen IV engines with cable driven throttle bodies.

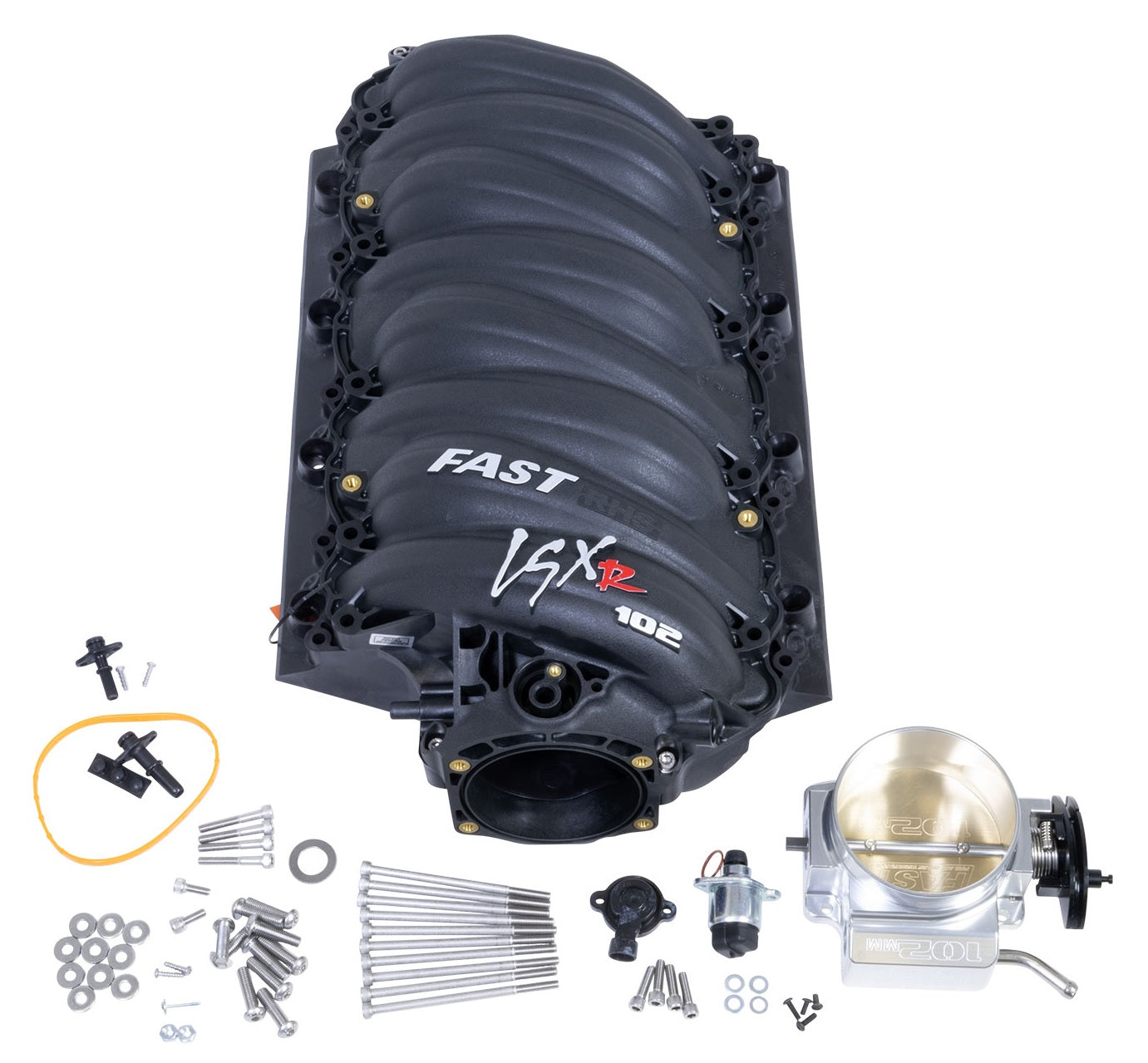

Kit Includes:

• Fast LSXR 102mm Intake Manifold (Part #146102B)

• Fast 102mm Big Mouth Electronic Throttle Body (Part #54103)

Compatible with:

• GM LS3, L76, and L99 Rectangle Port Engines

You can view and download the instruction booklet here.
