EDELBROCK CARBURETOR KIT,SMALL BLOCK FORD,600 CFM,ELECTRIC,CAM,INTAKE MANIFOLD

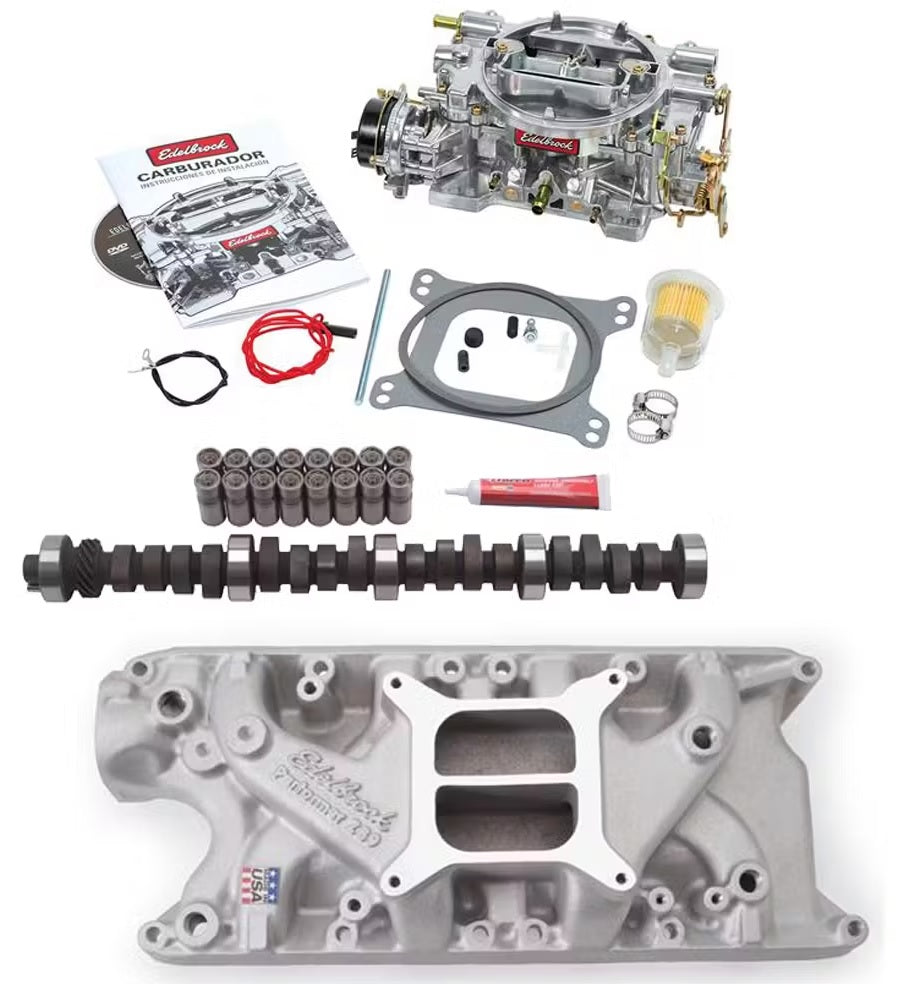

Brand New Edelbrock 600 CFM Carburetor Kit with Intake Manifold, & Camshaft (Part #1406KIT02).

The Edelbrock Performer Series 600 CFM Electric Choke Carburetor Kit is a precisely tuned, quality-built kit that can handle the rigors of daily driving while delivering consistent, reliable street performance from day to day. This kit includes Edelbrock's Performer Intake Manifold Non-EGR, Performer 600 CFM Carburetor, and the Performer-Plus Camshaft Kit.

Fits:

• Ford 260, 289, & 302 Small Block V8

Notes:

• Does not fit the Boss 255 or 302 C.I.D. V8s
• Check and set spring height to factory specifications for your year and model when installing camshaft.

Kit Includes:

• Edelbrock Performer 1955-86 Small Block Chevy Intake Manifold (Part #2121):
  • Provides overall performance improvements from idle to 5500 rpm

  • Great for street and off road

  • Non-EGR
  • Manifold front height: 3.50"
  • Manifold rear height: 4.75"
  • Port exit dimensions:  1.09" x 1.84"
• Edelbrock Performer Carburetor (Part #1406):
  • 600 CFM
  • Electric choke
  • 4-Barrel
  • Smooth throttle response throughout the power band
  • Flange Type: Square
  • Body Height: 3.25"
• Edelbrock Performer-Plus Camshaft Kit, Small Block Ford (Part #2122):
  • Matched to Edelbrock Performer Intake
  • Major improvement in throttle response and torque
  • Includes hydraulic lifters and assembly lube
  • Coat cam lobes and bottoms of each lifter with lube to prevent wear.
  • Use oils/additives with zinc designed for flat tappet cams.
  • Start the engine and bring to break-in rpm (Over 2000 rpm for first 1/2 hour).

You can view and download the assembly instruction booklet here, here, and here.
