EDELBROCK CARBURETOR KIT,SMALL BLOCK CHEVY,600 CFM,ELECTRIC,CAM,INTAKE MANIFOLD

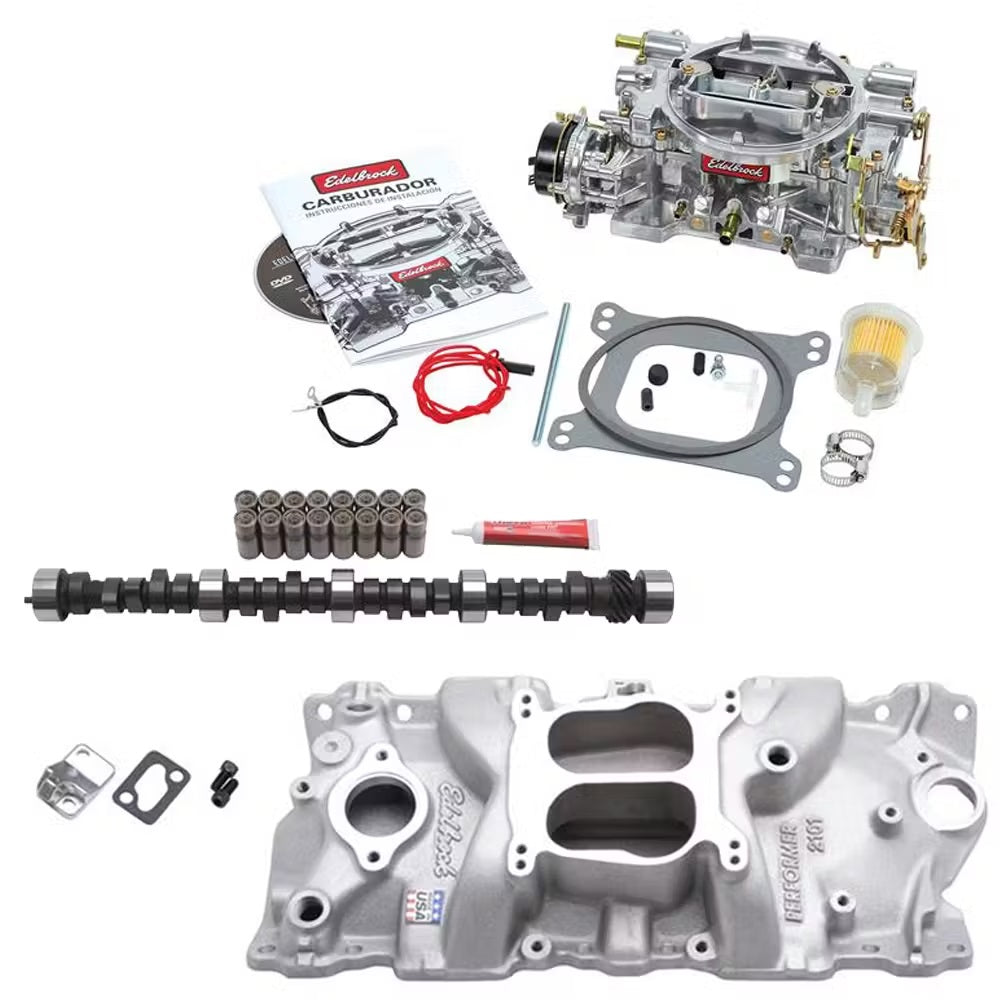

Brand New Edelbrock 600 CFM Carburetor Kit with Intake Manifold, Gaskets, & Camshaft (Part #1406KIT01).

The Edelbrock Performer Series 600 CFM Electric Choke Carburetor Kit is a precisely tuned, quality-built kit that can handle the rigors of daily driving while delivering consistent, reliable street performance from day to day. This kit includes Edelbrock's Performer Intake Manifold Non-EGR, Performer 600 CFM Carburetor, and the Performer-Plus Camshaft Kit.

Fits:

• 1955-1986 Chevrolet 262-400 Small Block V8

Notes:

• Not for 1987 and later cast iron, aluminum, or Chevy Bowtie heads.
• Use either the correct Edelbrock Sure Seat valve springs (part #5802, sold separately) or the stock original equipment valve springs with the camshaft.

Kit Includes:

• Edelbrock Performer 1955-86 Small Block Chevy Intake Manifold (Part #2101):
  • Provides overall performance improvements from idle to 5500 rpm

  • Great for street and off road

  • Non-EGR
  • Manifold front height: 3.50"
  • Manifold rear height: 4.60"
  • Port exit dimensions:  1.14" x 1.88"
• Edelbrock Performer Carburetor (Part #1406):
  • 600 CFM
  • Electric choke
  • 4-Barrel
  • Smooth throttle response throughout the power band
  • Flange Type: Square
  • Body Height: 3.25"

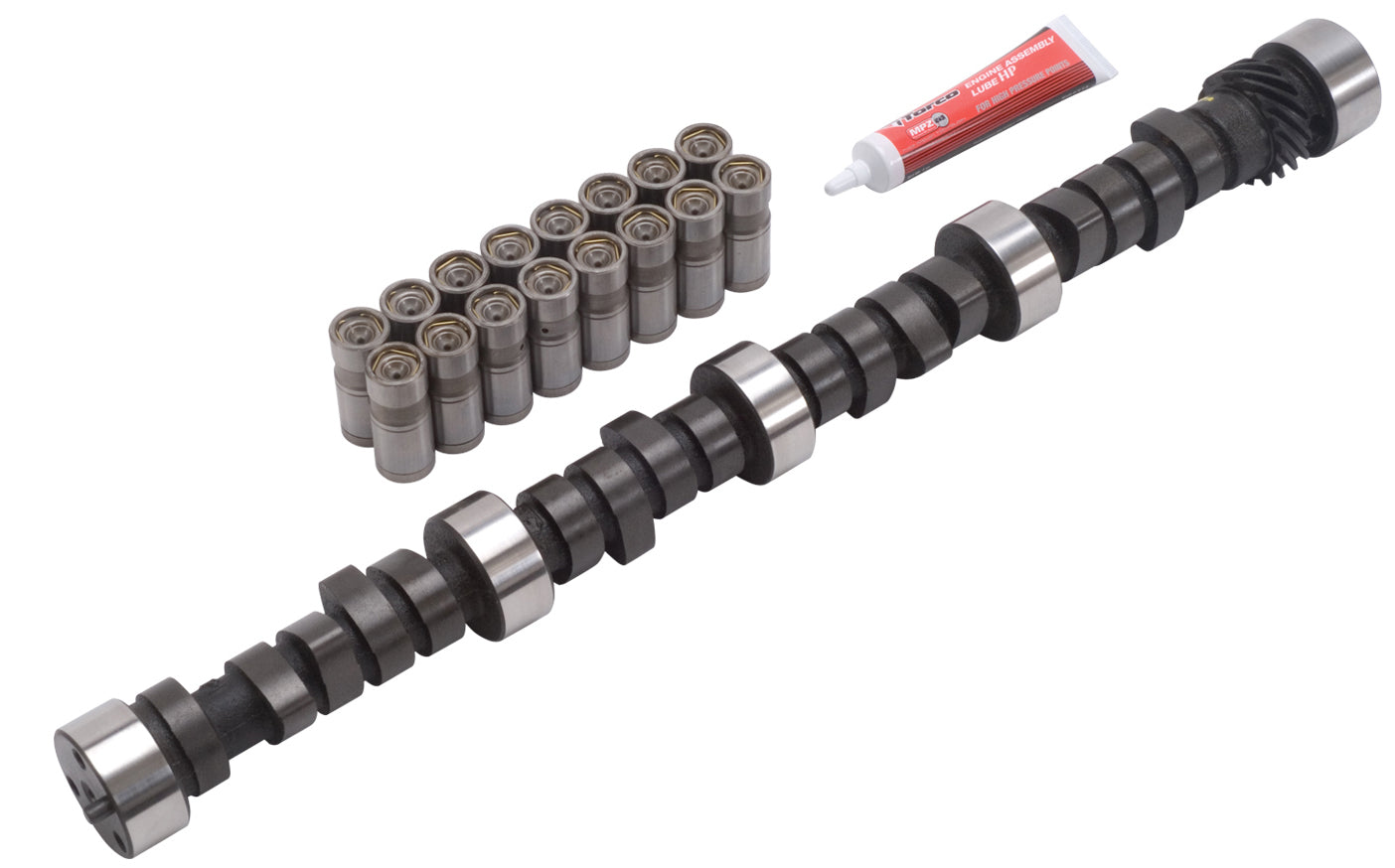

• Edelbrock Performer-Plus Camshaft Kit, Small Block Chevy (Part #2102):
  • Matched to Edelbrock Performer Intake
  • Major improvement in throttle response and torque
  • Includes hydraulic lifters and assembly lube
  • Coat cam lobes and bottoms of each lifter with lube to prevent wear.
  • Use oils/additives with zinc designed for flat tappet cams.
  • Start the engine and bring to break-in rpm (Over 2000 rpm for first 1/2 hour).

You can view and download the assembly instruction booklet here, here, and here.
