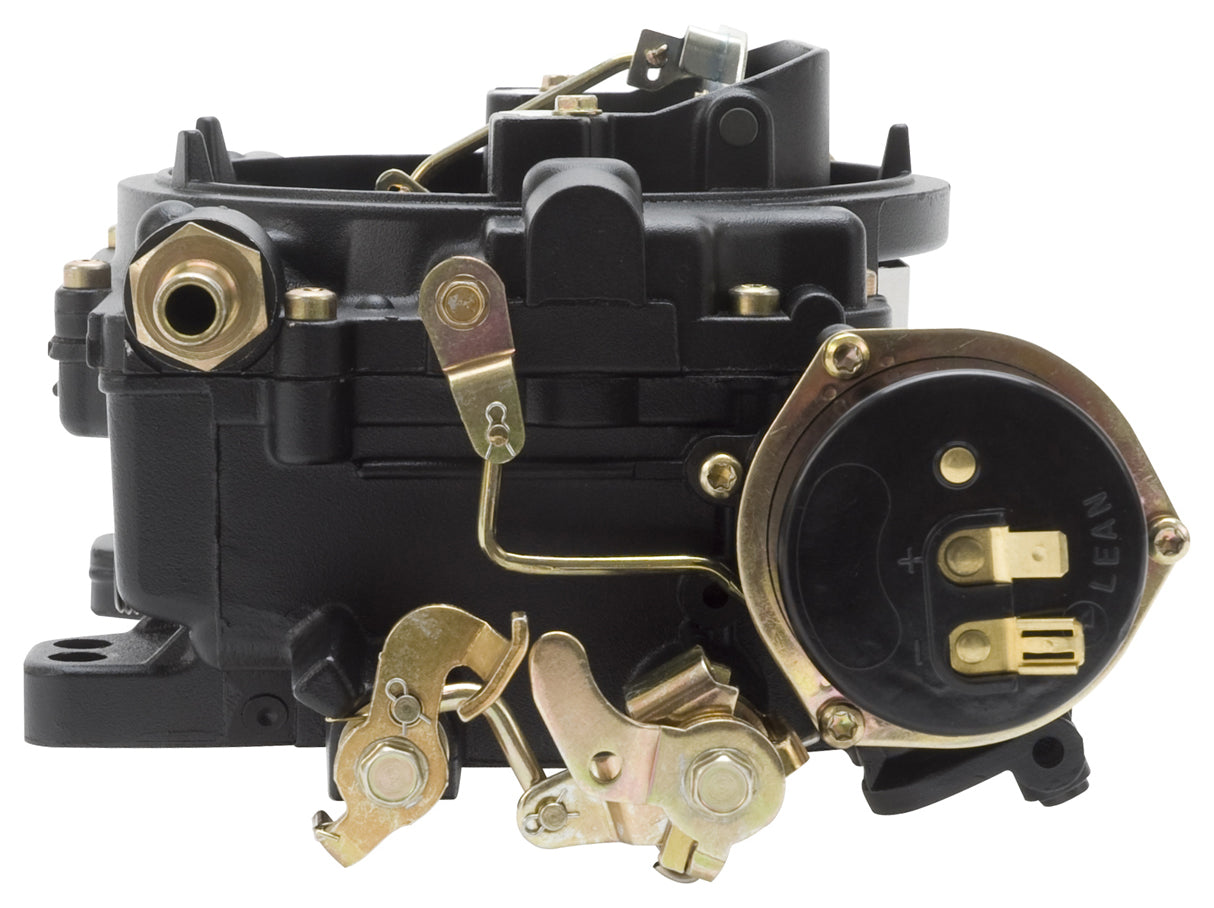

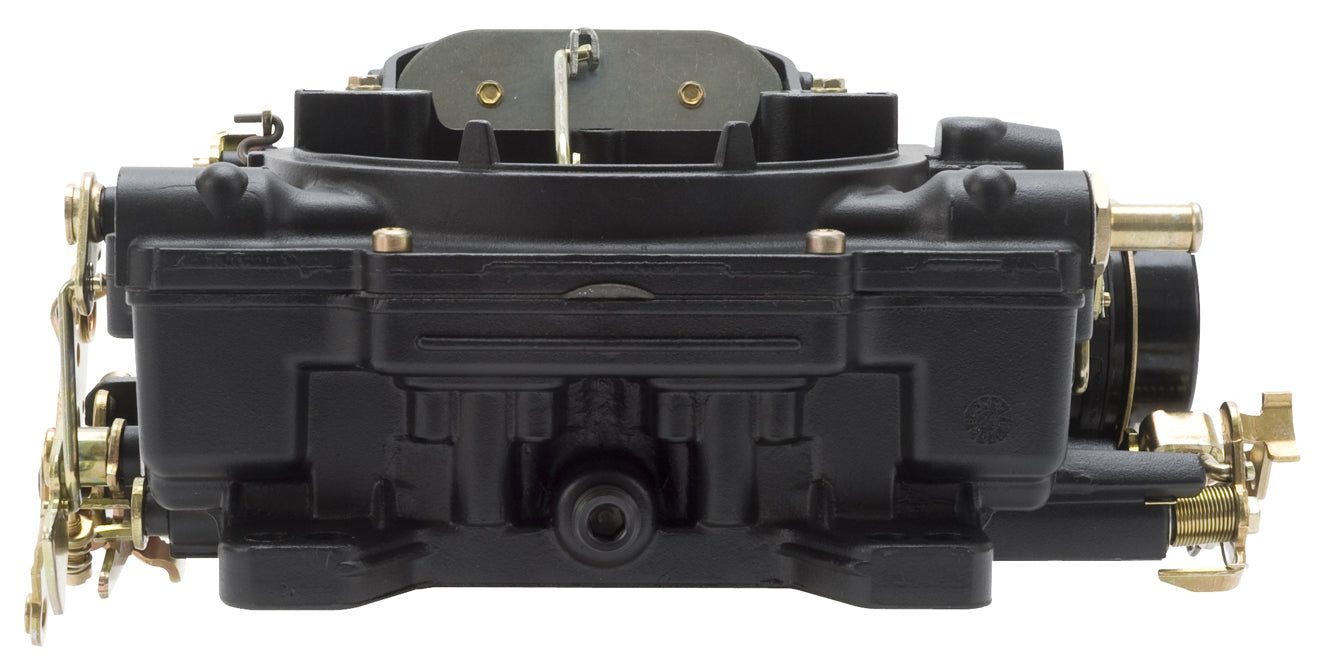

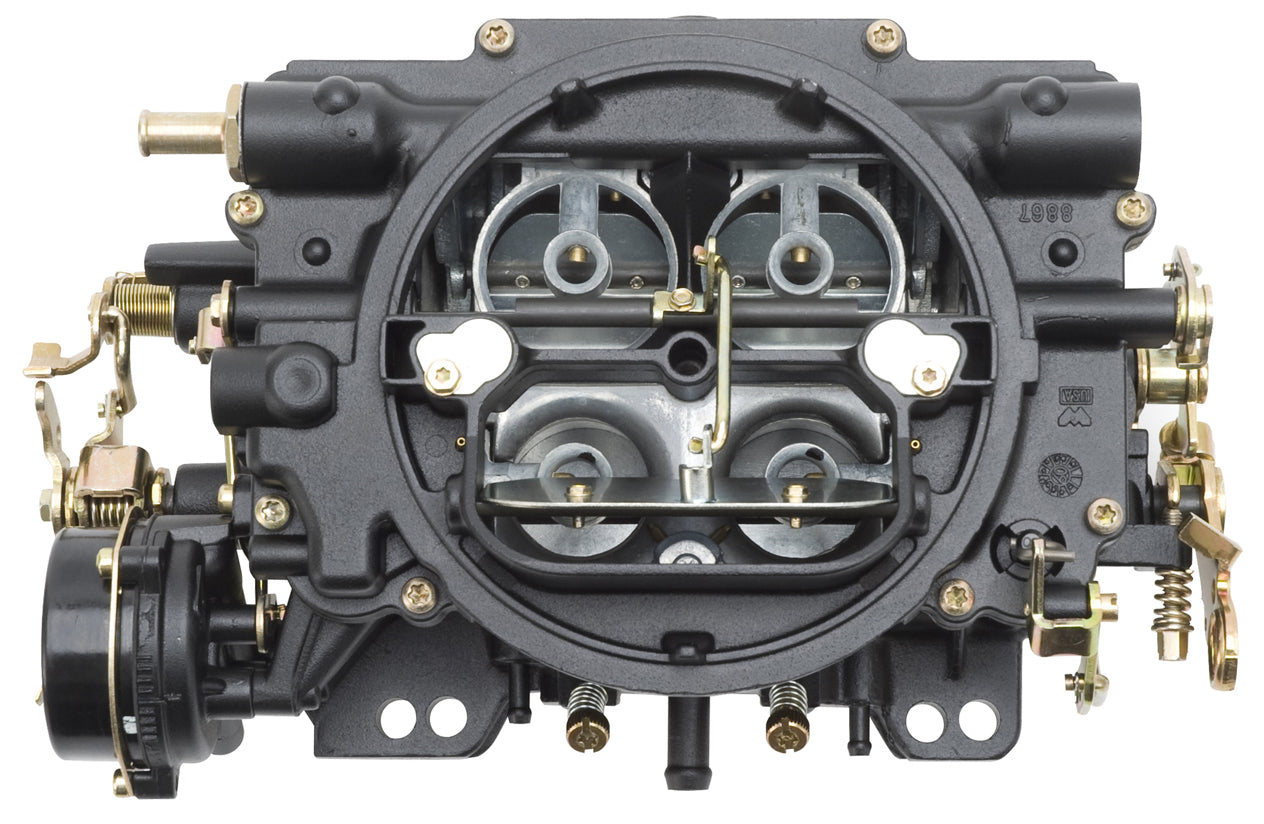

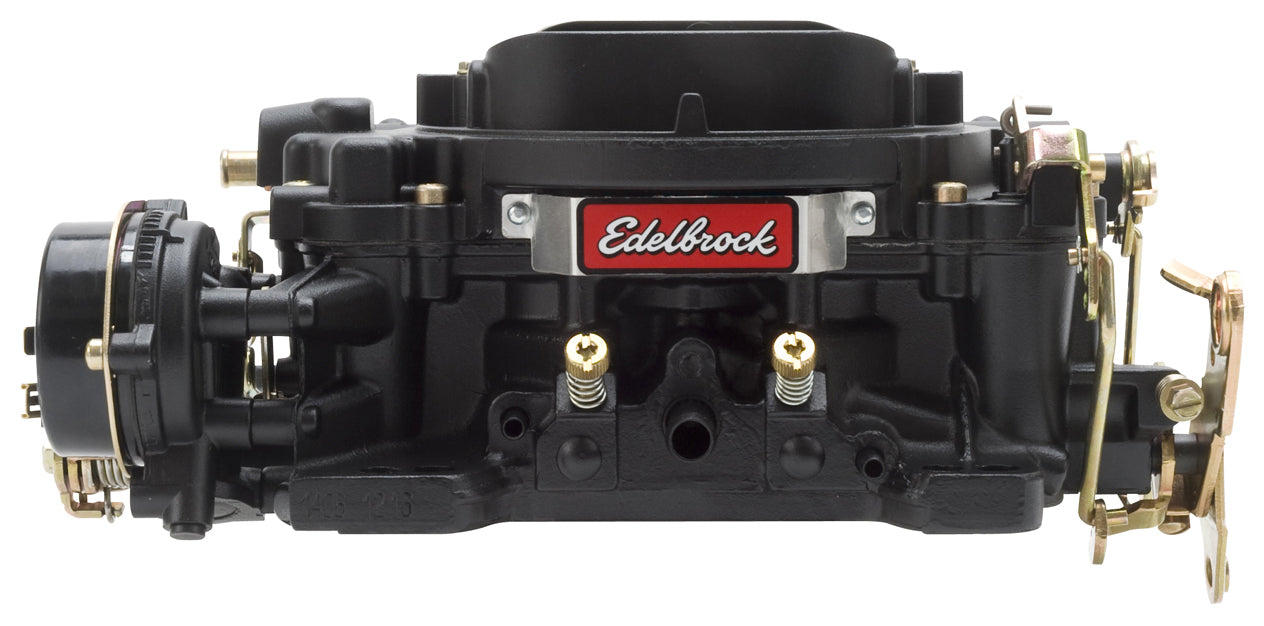

EDELBROCK CARBURETOR,PERFORMER,600 CFM,ELECTRIC CHOKE,BLACK,NON-EGR

BRAND NEW EDELBROCK 600 CFM PERFORMER CARBURETOR, BLACK SATIN FINISH, ELECTRIC CHOKE

THE EDELBROCK 14063 PERFORMER SERIES 600 CFM ELECTRIC CHOKE BLACK POWDER COATED CARBURETOR IS A PRECISELY TUNED, QUALITY-BUILT CARBURETOR THAT CAN HANDLE THE RIGORS OF DAILY DRIVING WHILE DELIVERING CONSISTENT, RELIABLE STREET PERFORMANCE FROM DAY TO DAY. SEVERAL CHARACTERISTICS MAKE THE 14063 PERFORMER SERIES 600 CFM ELECTRIC CHOKE BLACK POWDER COATED CARBURETOR AN OUTSTANDING STREET PERFORMER. THE FIRST ONE IS THAT METERING RODS ARE UTILIZED TO TRANSITION BETWEEN CIRCUITS.

THE CARBURETOR IS UNAFFECTED BY ENGINE BACKFIRES, WHICH MEANS THAT THERE ARE NO POWER VALVES TO BLOW OUT, AND THE RODS CAN BE CHANGED IN SECONDS WITHOUT CARBURETOR REMOVAL OR FUEL DRAINING. SECONDLY, THE CARBURETOR HAS THE UNIQUE ABILITY TO "HOLD A TUNE", SO ONCE IT IS TUNED, THE CARBURETOR STAYS TUNED. WHAT THIS MEANS TO YOU IS THAT COMPARED TO OTHER CARBURETORS, THE PERFORMANCE REMAINS CONSISTENT AND THE CALIBRATION STAYS UNCHANGED.

THE LIGHTWEIGHT ALL-ALUMINUM BODY FEATURES A TWO-PIECE BODY THAT RESISTS WARPING AND IS COMPATIBLE WITH GASOHOL AND BLENDED FUELS. THE SIMPLE TUB-TYPE BOWLS AND REAR-PIVOT FLOATS ALL CONTRIBUTE TO A CARBURETOR THATS RELIABLE, USER-FRIENDLY AND IS EASILY TUNABLE FOR MILES AND MILES OF TROUBLE-FREE OPERATION.

FEATURES:

• GASKET INCLUDES
• BLACK SATIN FINISH
• ALUMINUM
• 4 BARREL
• SQUARE FLANGE
• PRIMARY JET DIAMETER: 0.086"
• SECONDARY JET DIAMETER: 0.095"
• MAIN VENTURII DIAMETER: 1.19"
• BODY HEIGHT: 3.25"
• PRIMARY BORE: 1.44"
• SECONDARY BORE: 1.69"
• SPRING FORCE: 5" HG (ORANGE)

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
