CARB, PERFORMER, 600 CFM, ELECTRIC CHOKE (EGR)

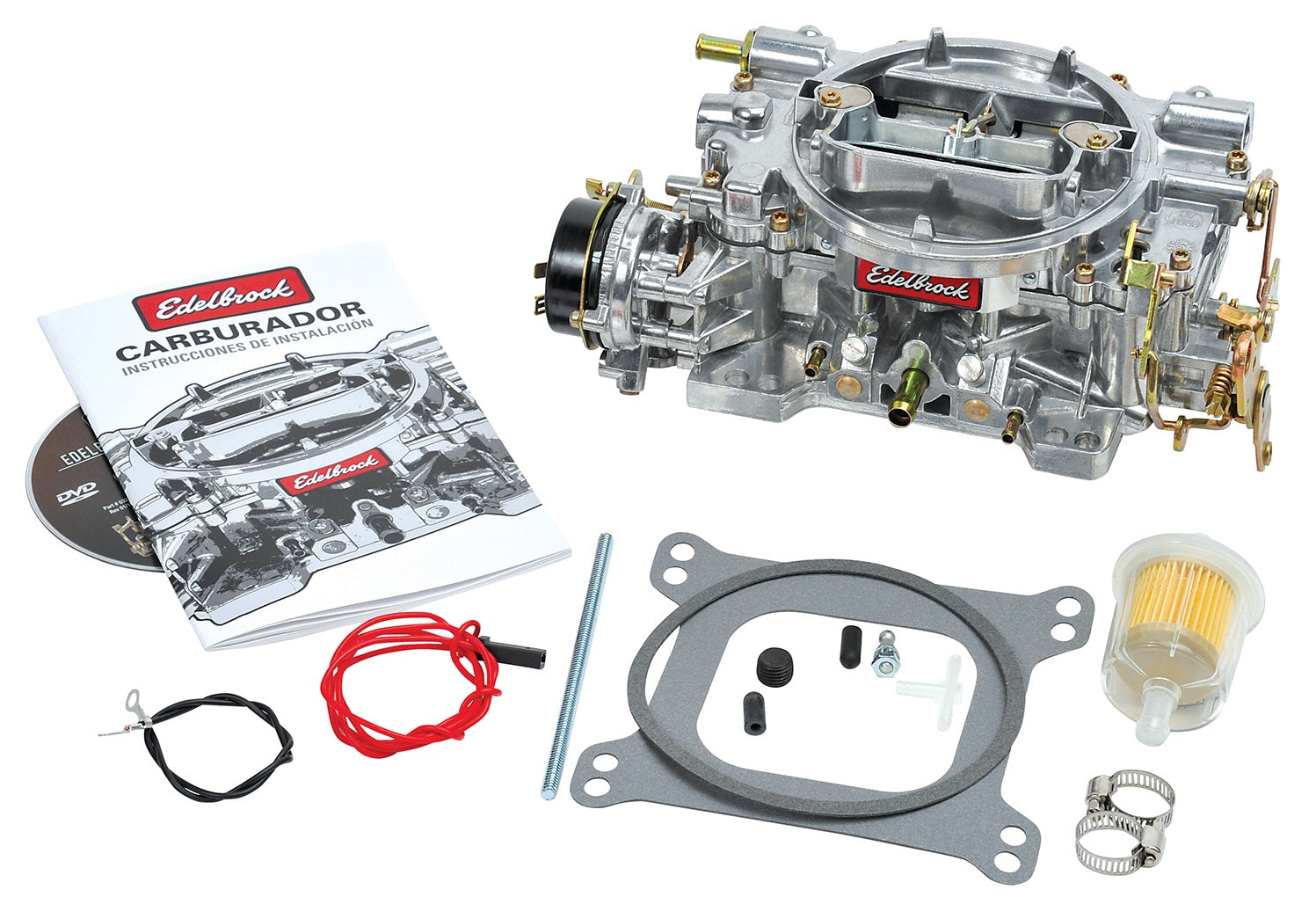

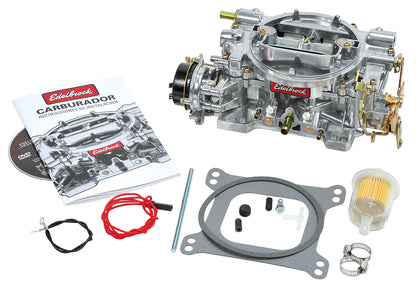

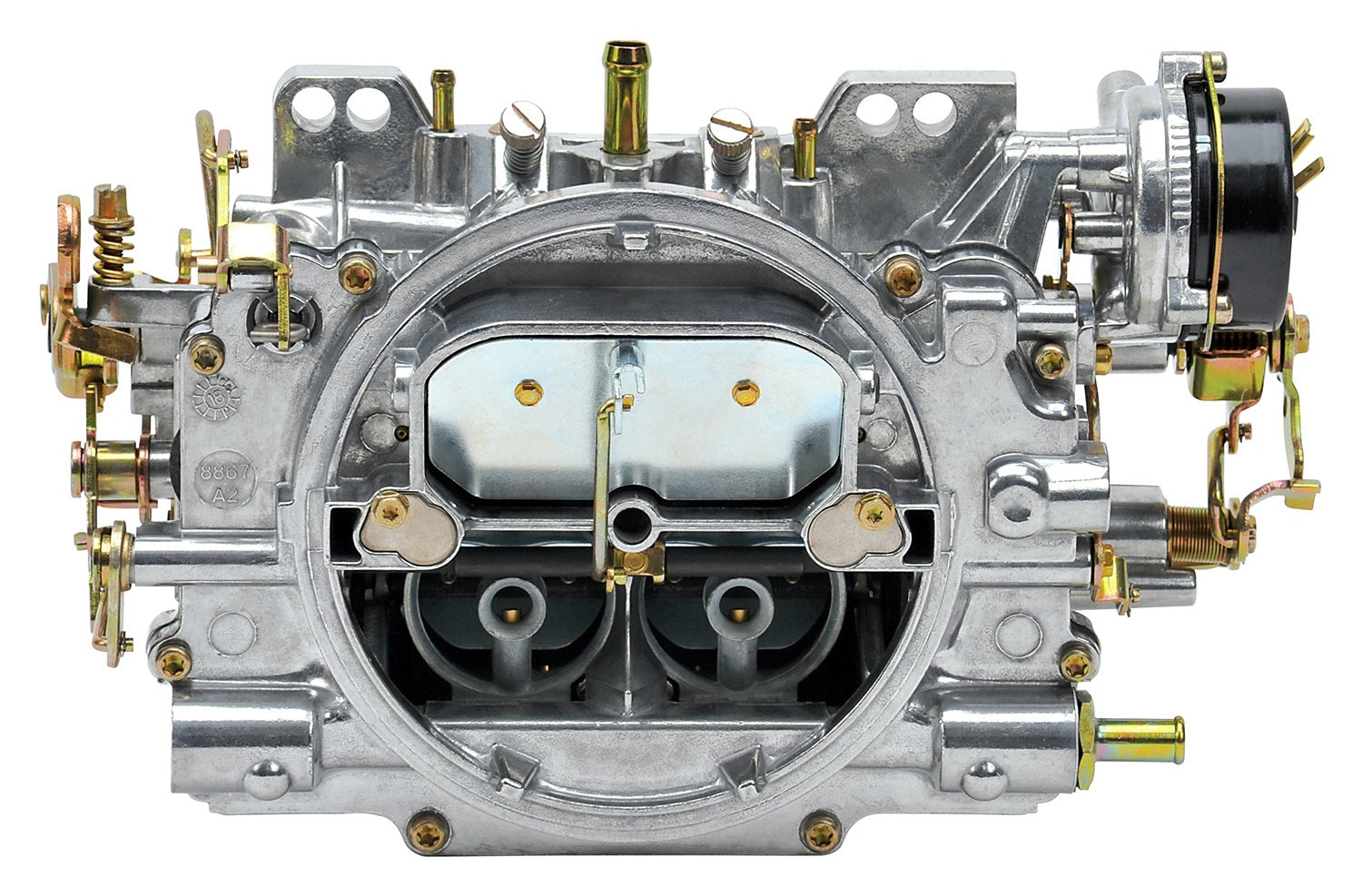

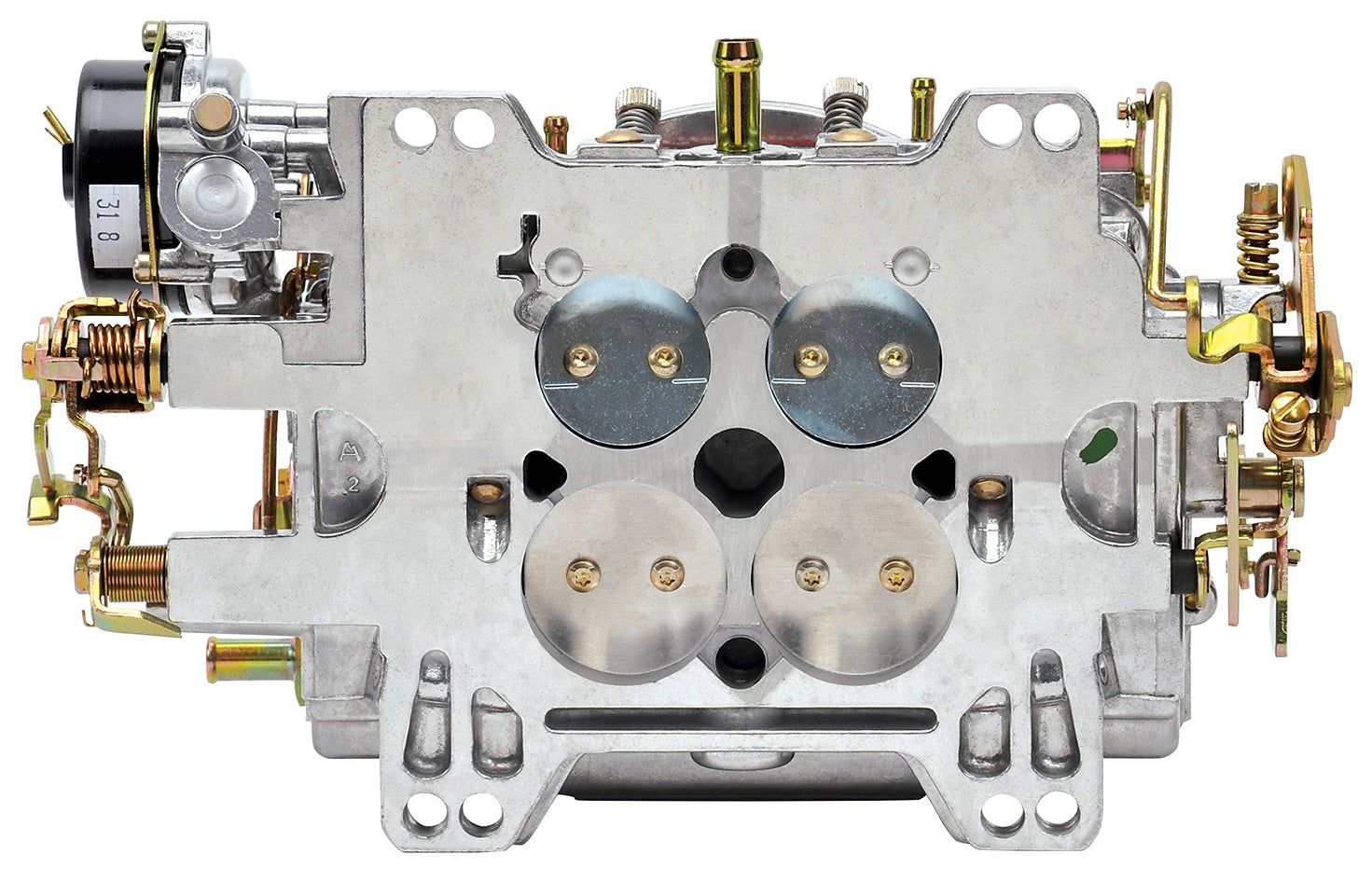

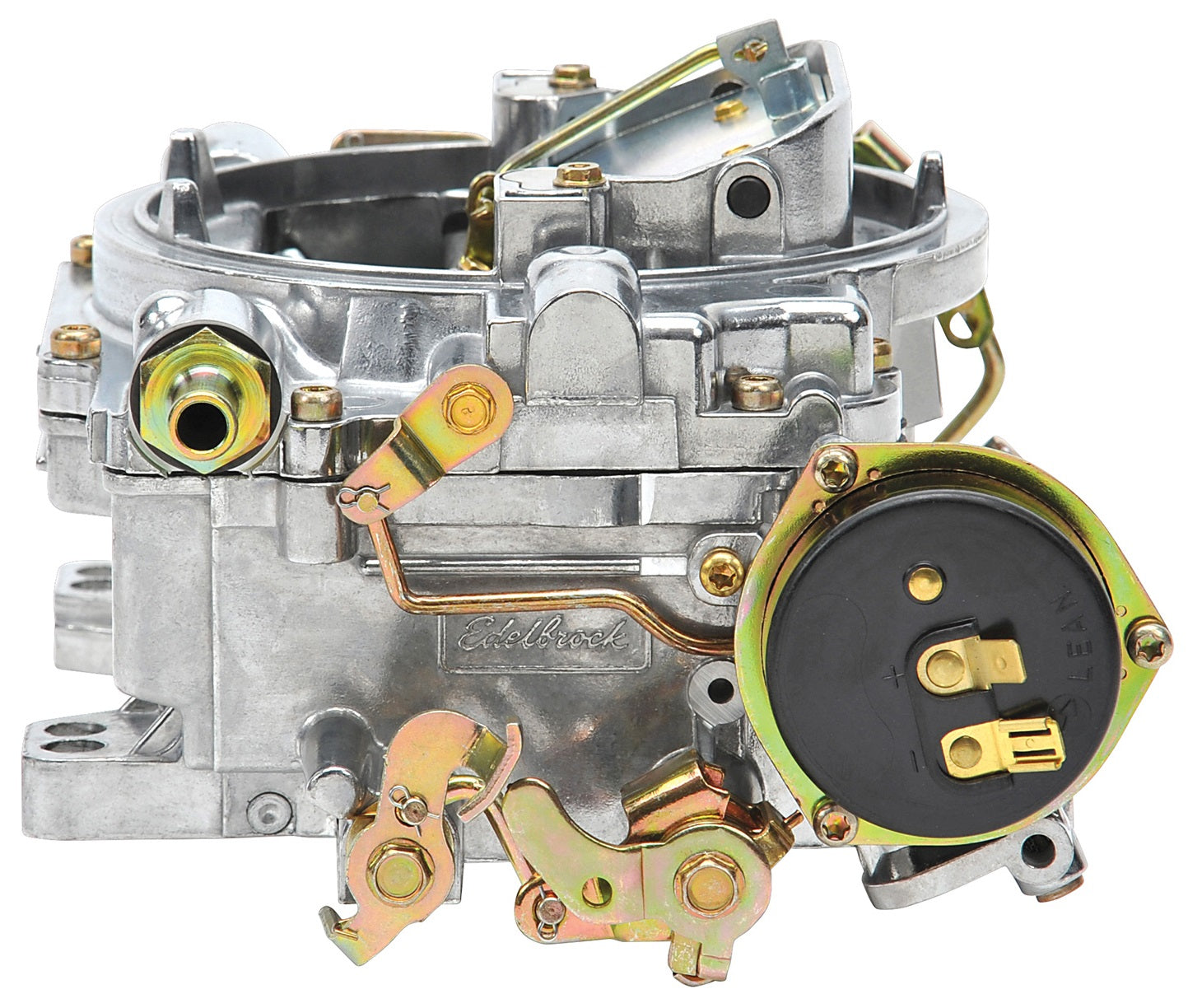

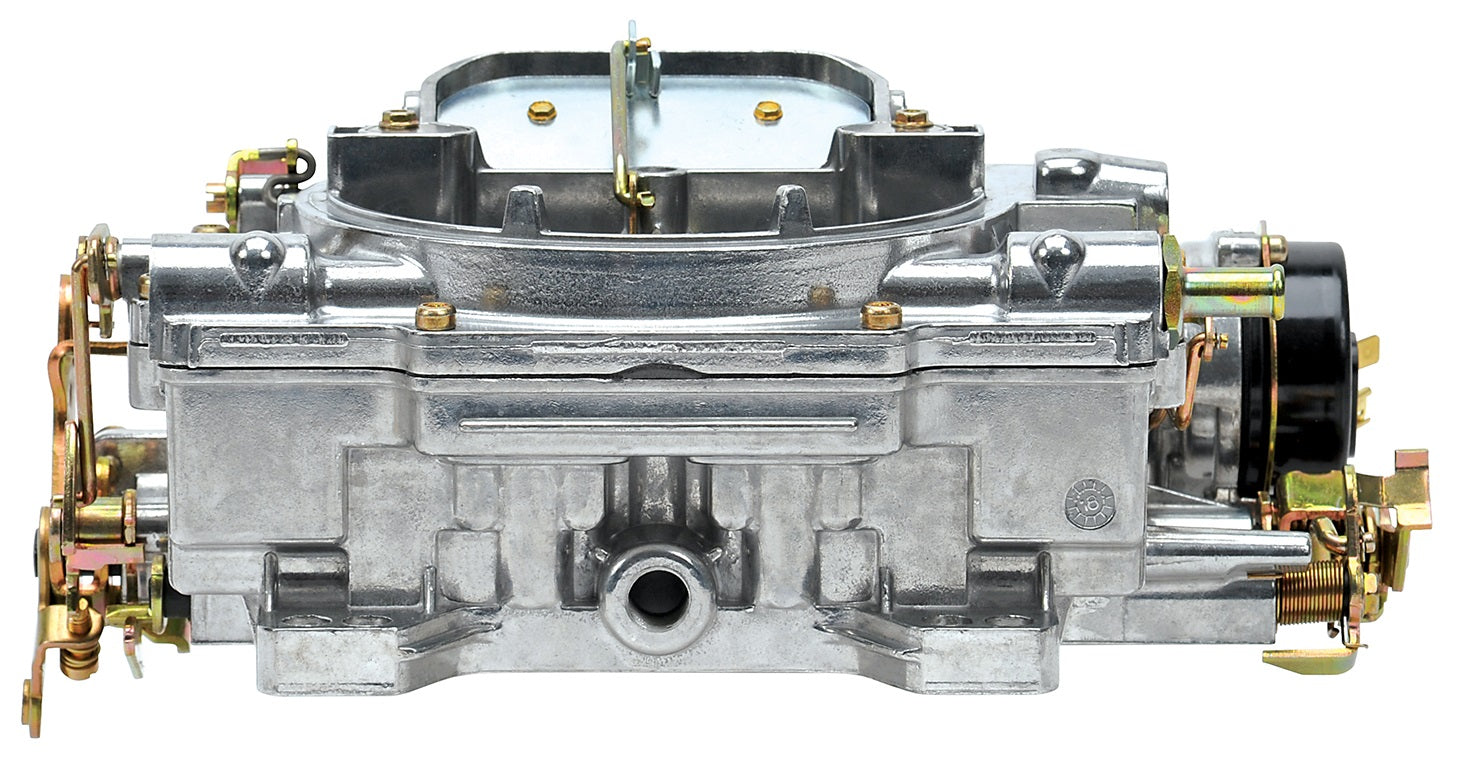

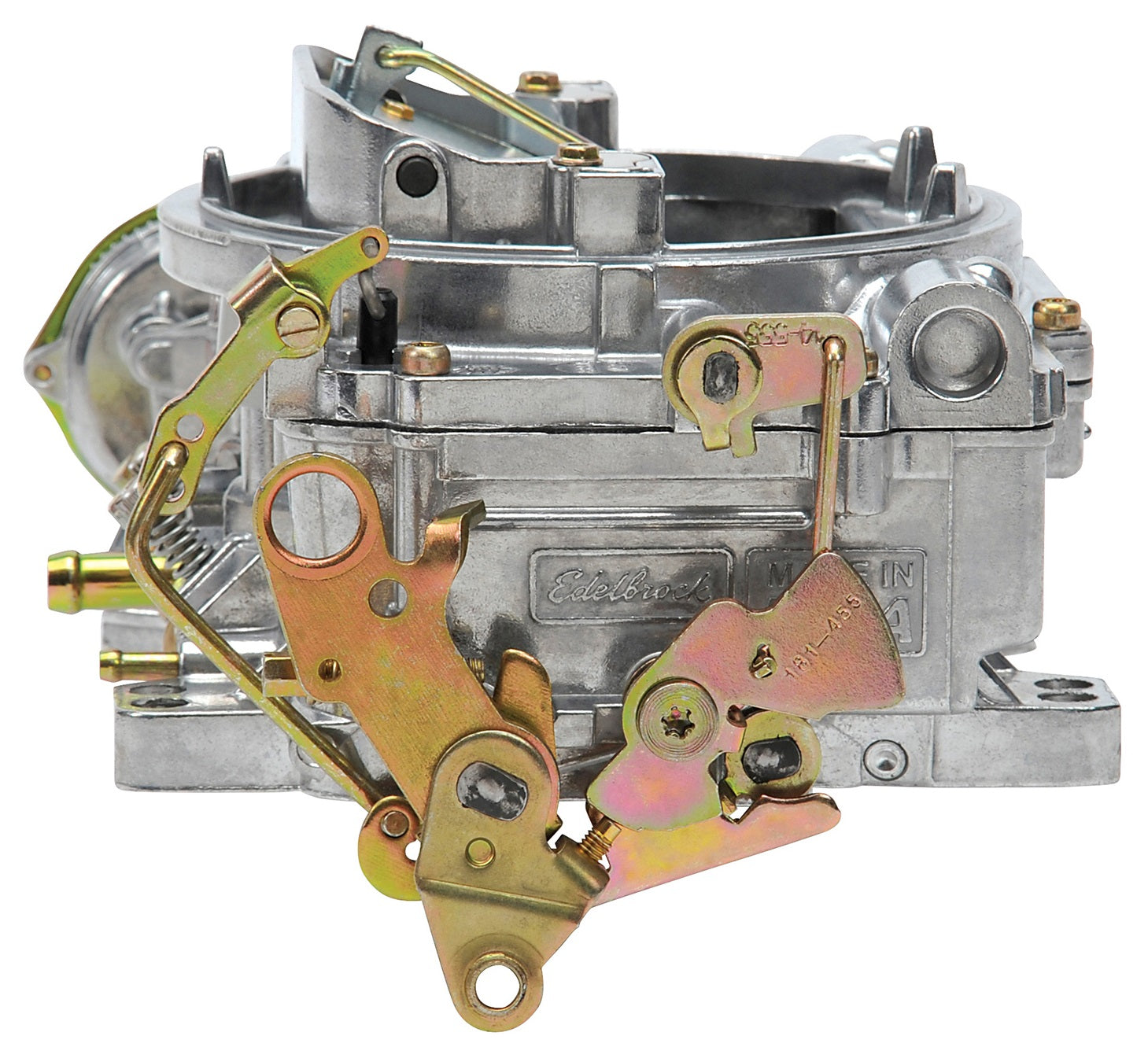

Brand New Edelbrock Performer 600 Series Electric Choke Carb (Part #1400).

The Edelbrock 1400 Performer Series 600 CFM electric choke carburetor is a precisely tuned, quality-built carburetor that can handle the rigors of daily driving while delivering consistent, reliable street performance from day to day. Several characteristics make the 1400 Performer Series 600 CFM electric choke carburetor an outstanding street performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out.

Secondly, the carburetor has the unique ability to "hold a tune", so the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent, and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that resists warping and is compatible with today’s commercially available gasoline, gasohol, and blended fuels (E10, not E85). The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable and user-friendly for miles and miles of trouble-free operation. The #1400 is an emissions legal part when used with 1980 and older GM V8’s (Chevrolet, Cadillac, Buick, GMC, Pontiac, and Oldsmobile) originally equipped with non-feedback carburetors. May require the use of adapter plate #2696.

Specs:

• Metering Rod Size: .073 x .047 in

• Gasket Or Seal Included: Yes

• Barrel Quantity: 4 Barrel

• Flange Type: Square

• Secondary Jet Diameter: 0.095

• Main Venturi Diameter: 1.19

• Body Height: 3.25
• Primary Bore Diameter: 1.44
• Secondary Bore Diameter: 1.69

• Spring Force: 5" Hg (Orange)

• Choke Type: Electric
• Marine Approved: No

• Material: Aluminum

• CFM Rating: 600 cfm

• Primary Jet Diameter: 0.098
