STEERING RACK,1998-2002 CAMARO,FIREBIRD

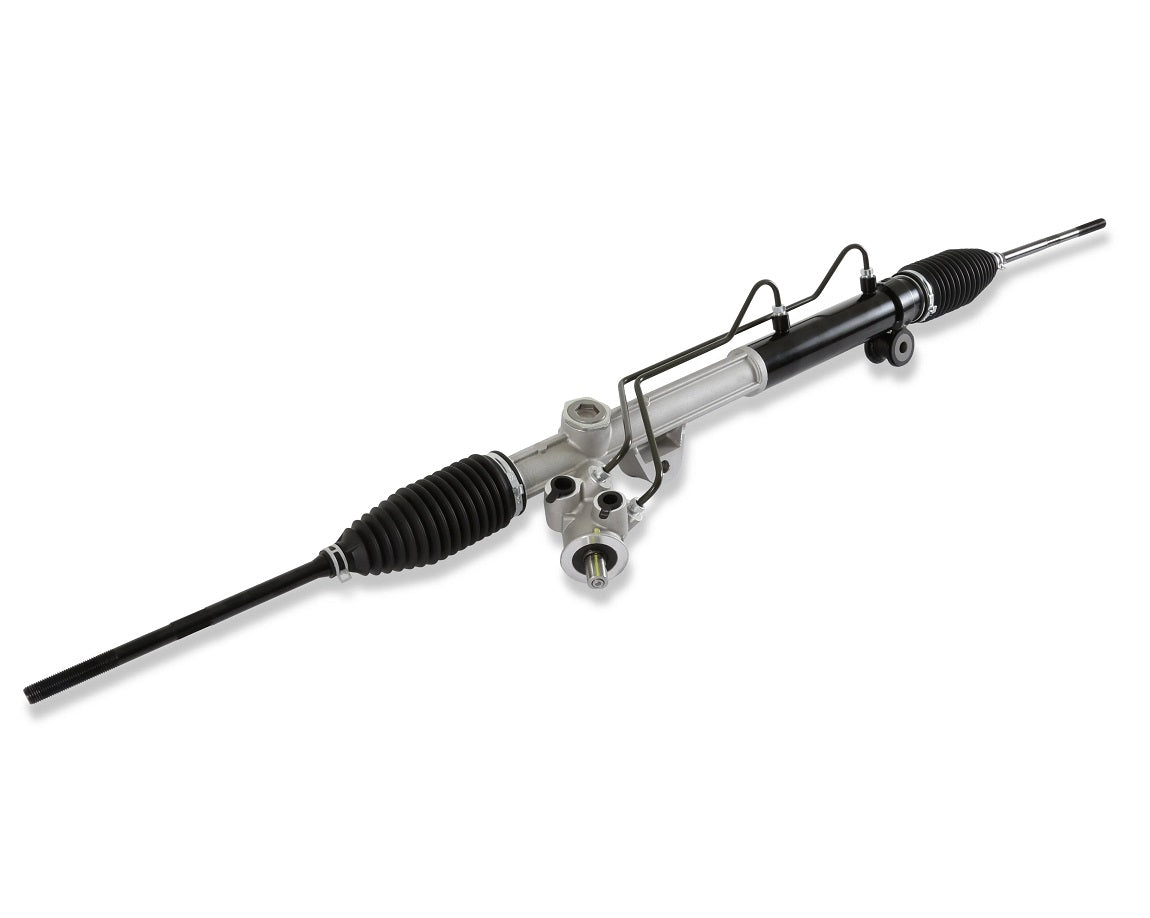

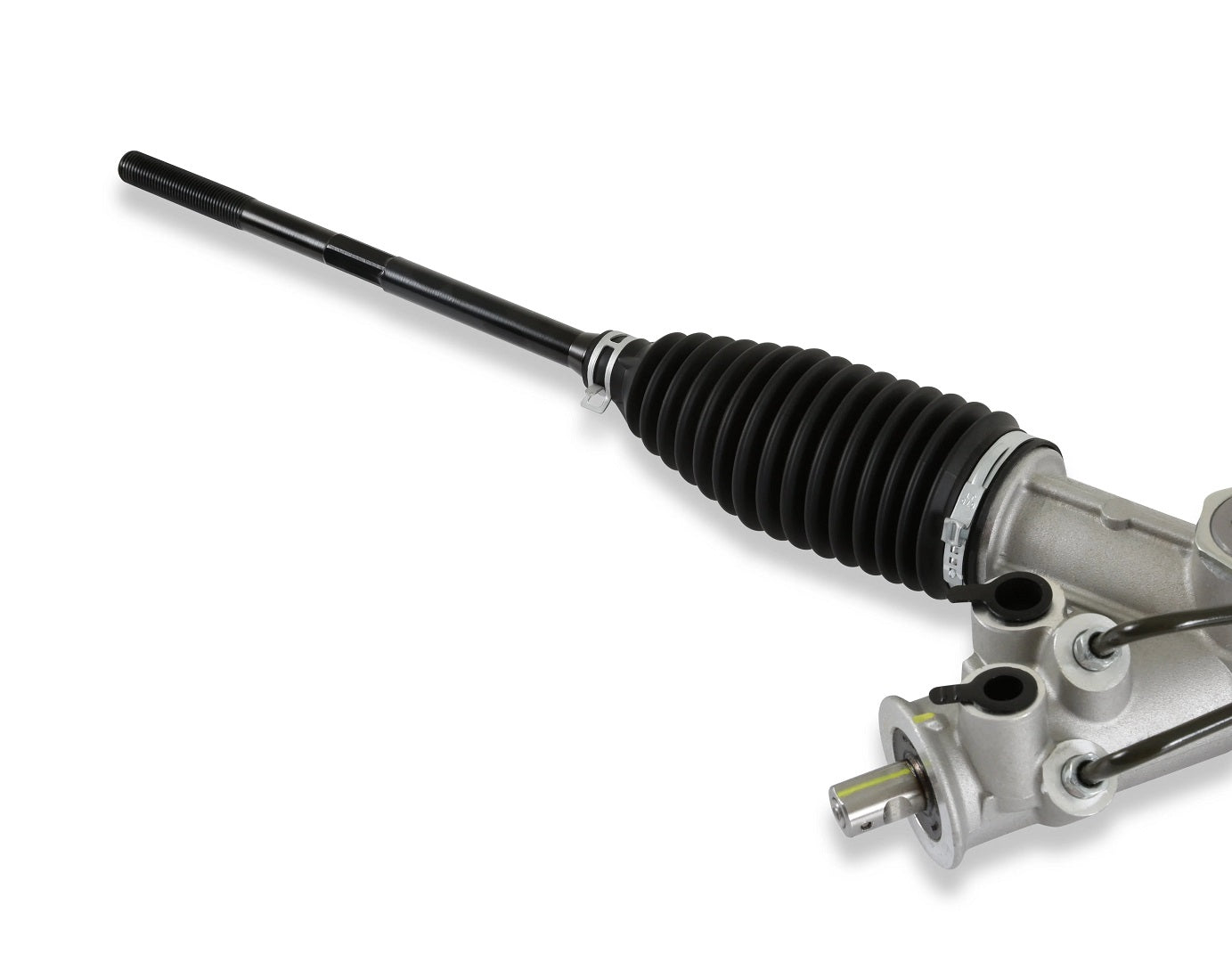

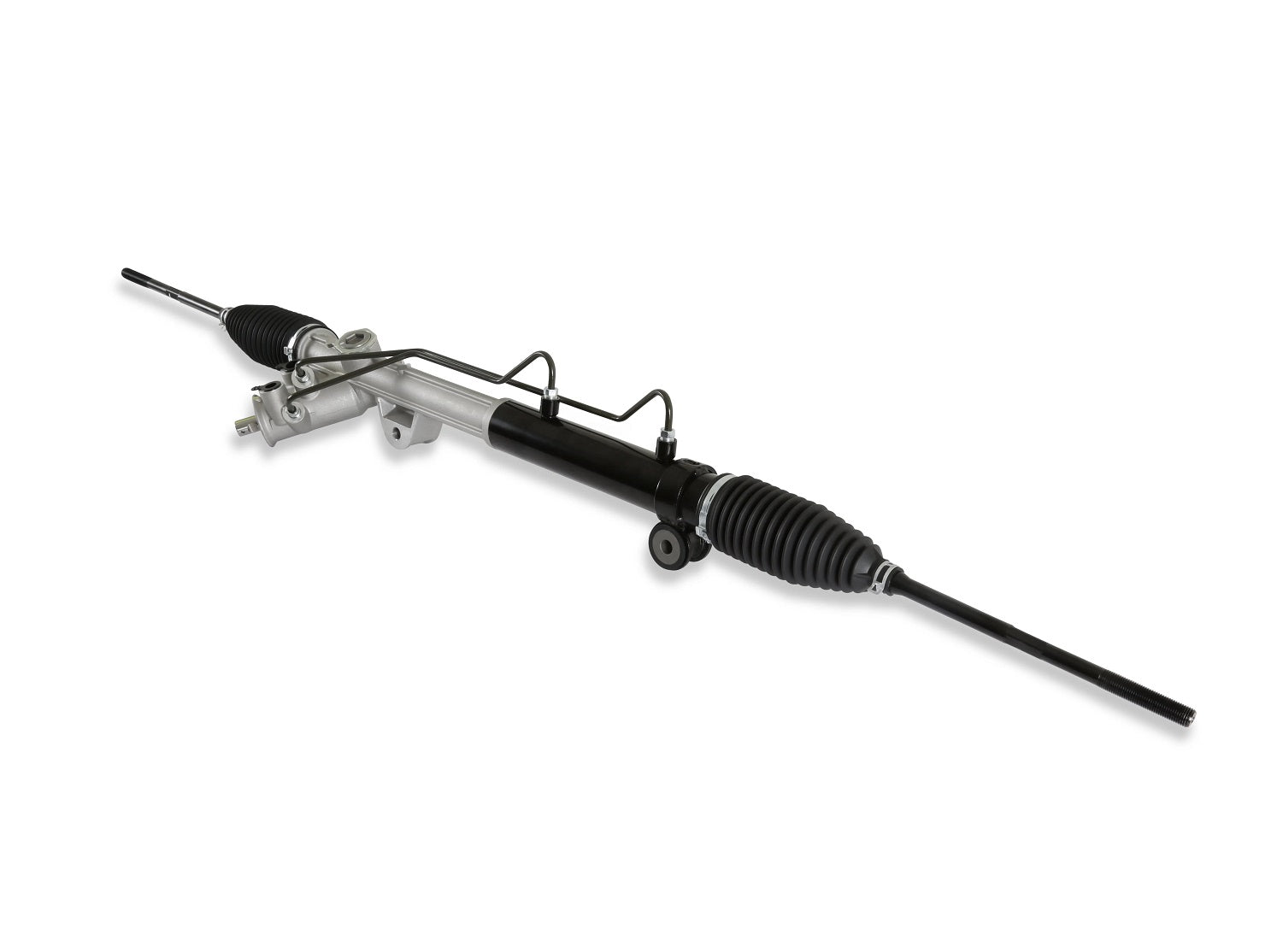

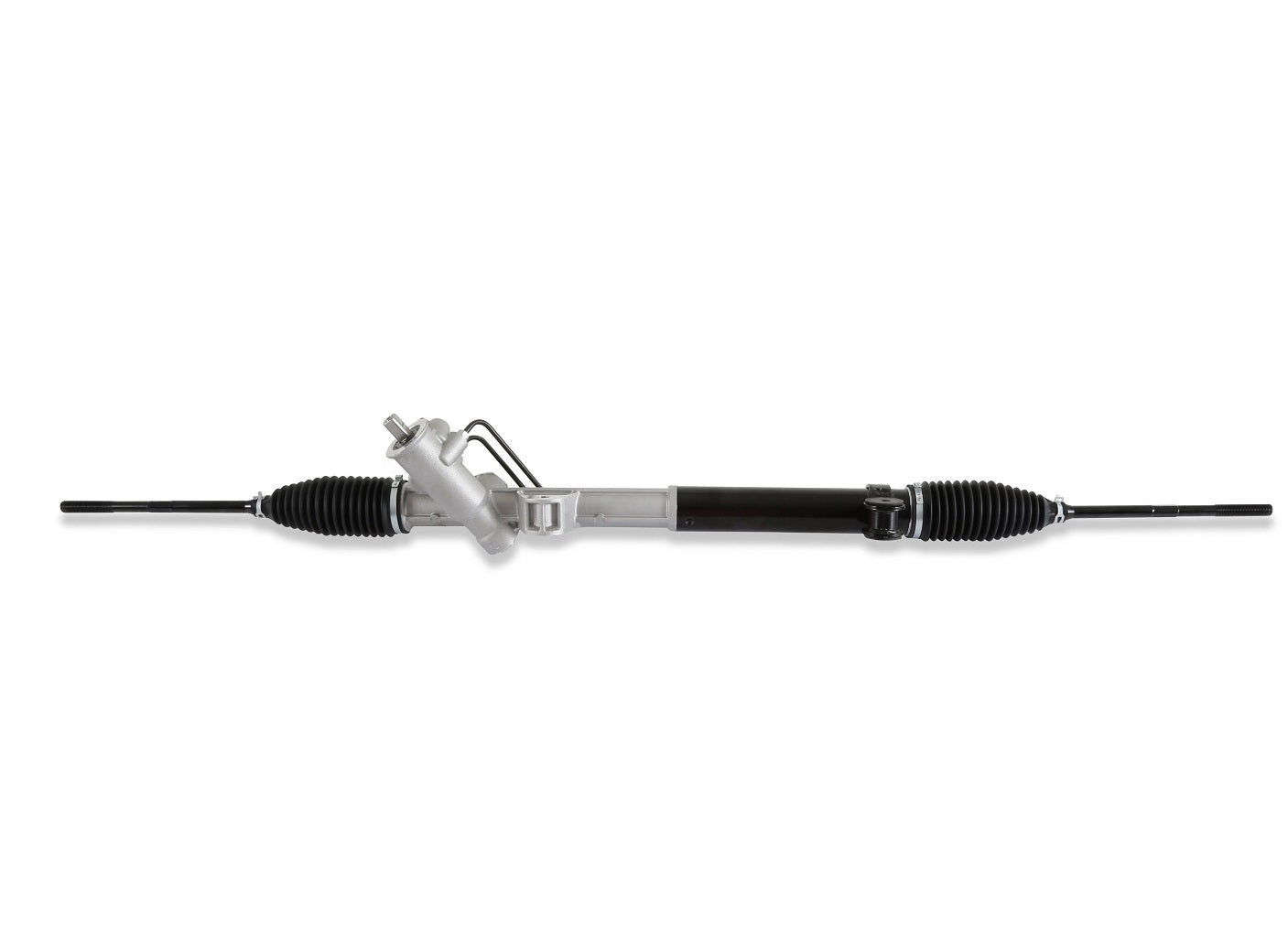

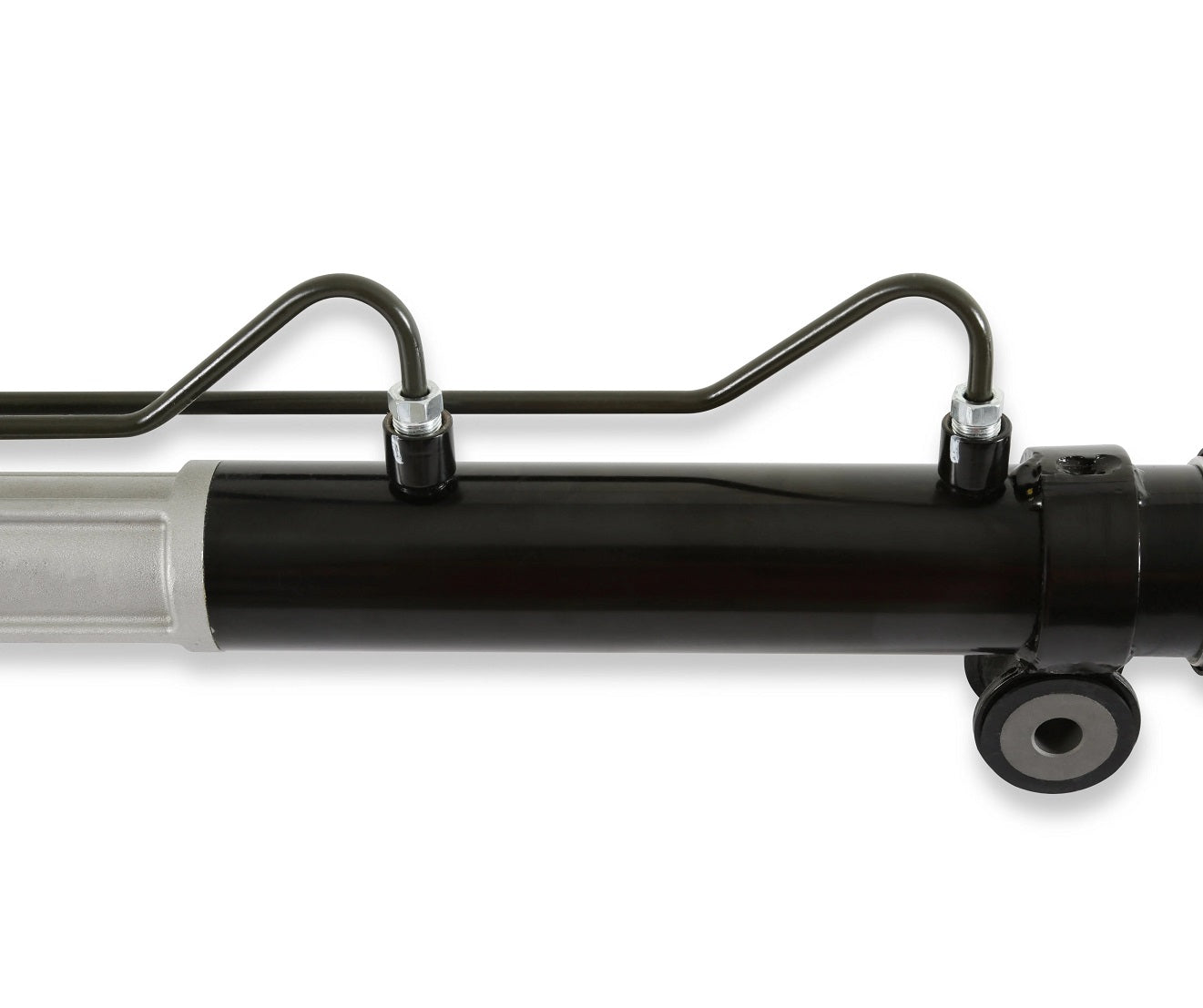

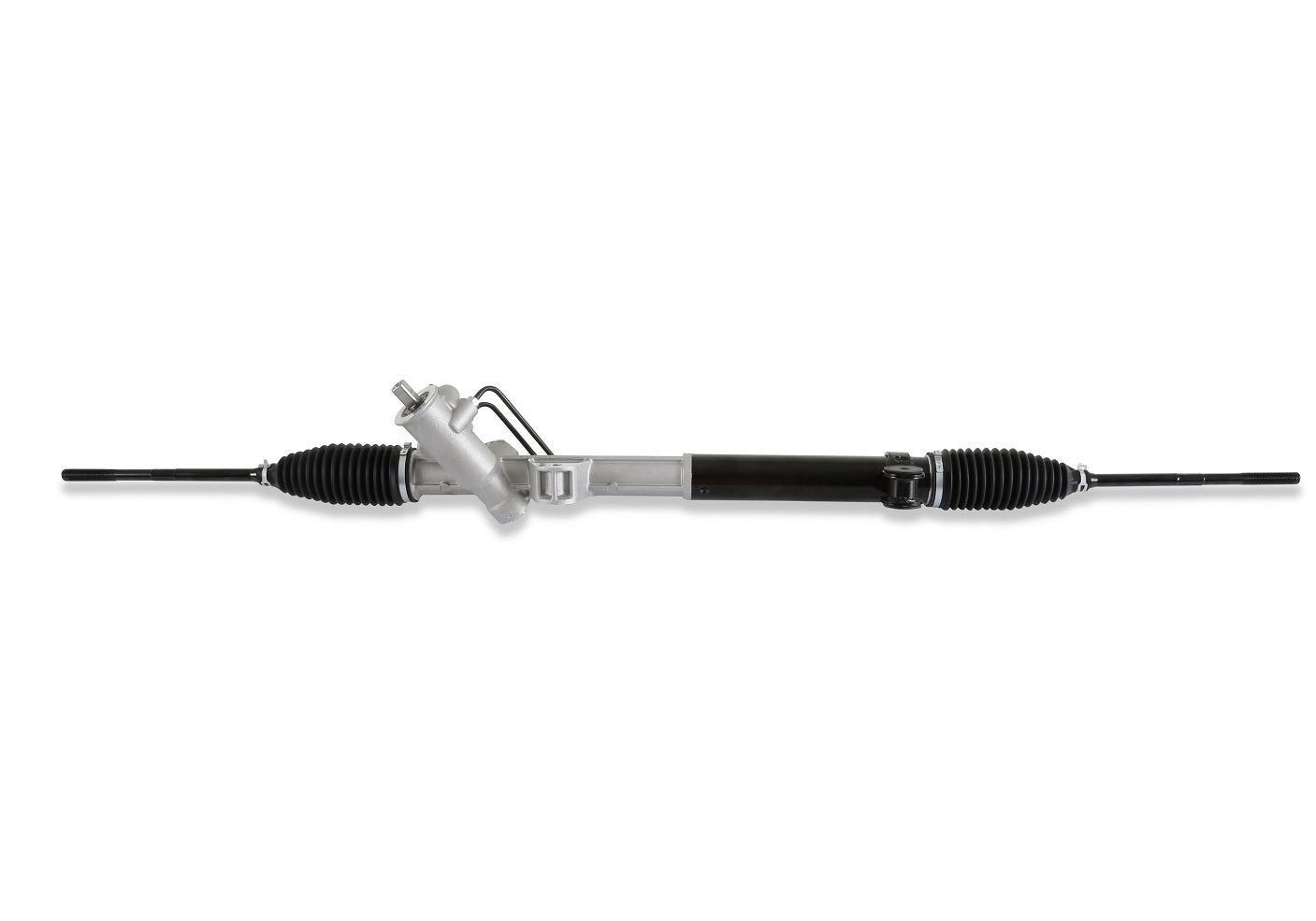

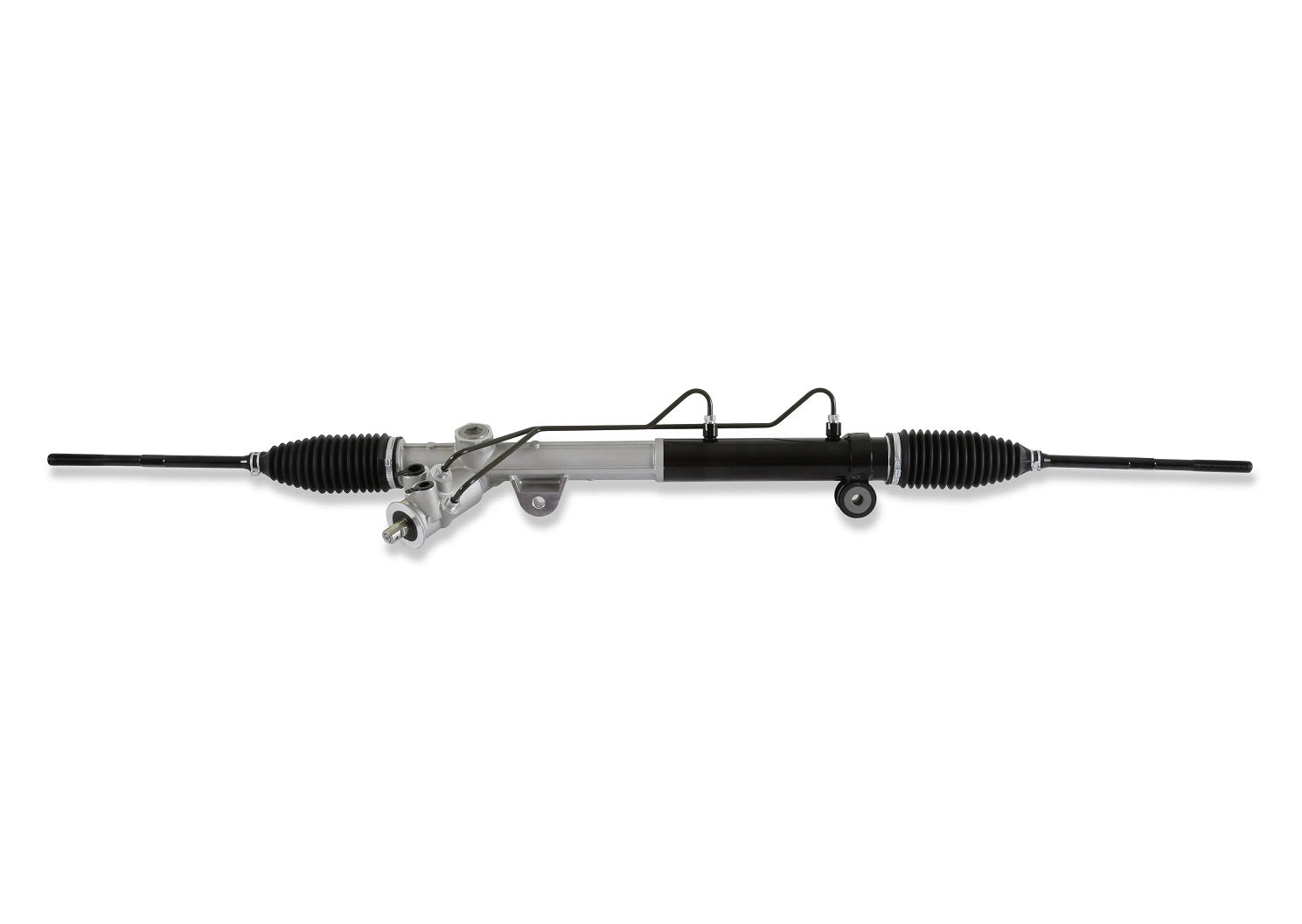

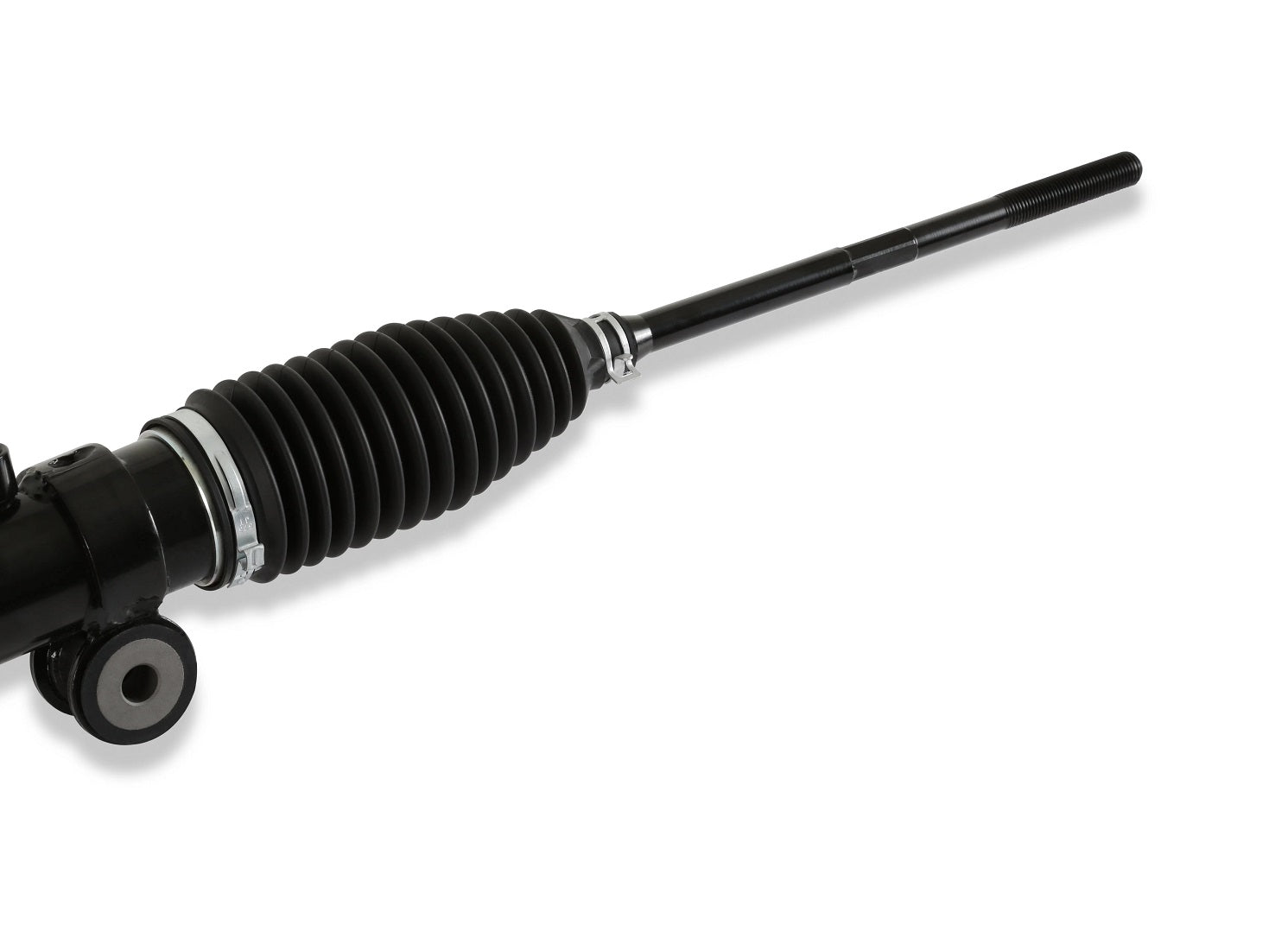

Brand New Detroit Speed Fast Ratio Detroit Tuned Power Rack and Pinion
, Fits 1998-2002 Chevrolet Camaro / Pontiac Firebird with FE2, FE4, and FE7 Suspension Packages (Part #090224DS).

This factory-style fast ratio power steering rack & pinion fits 1998-2002 Camaro / Firebird (with FE2, FE4, and FE7 suspension packages). "Detroit Tuned" valving for an exceptional modern performance feel for street or racing applications. Quick ratio with 2-1/4 turns lock-to-lock. This rack is built with all new components and undergoes a rigorous quality check and performance testing before shipment. Easy bolt-in installation on 1998-2002 Camaro/Firebird. Steering rack can be retrofit in 1993-1999 vehicles that came from the factory with an LT1 (gen III small block Chevy) or V6 engines - for upgrade over stock factory OEM 2.63 turns lock-to-lock steering ratio (must be used with factory LS1 steering shaft).

NOTE: This steering rack can be retrofit into 1993-1999 V6, and 1993-1997 LT1 (gen II small block) applications using the factory LS1 Steering Shaft (for an upgrade over the OEM steering ratio 2.63 turn lock-to-lock).

Compatible With:

• Chevrolet
  • 1993-2002 Camaro
• Pontiac
  • 1993-2002 Firebird


Features:

• Factory style fast ratio power steering rack & pinion - fits 1998-2002 Chevrolet Camaro and Pontiac Firebird

• Easy direct-fit bolt-in installation for 1998-2002 with FE2, FE4, and FE7 suspension packages

• Can be retrofit into 1993-1997 LT1 (gen II small block Chevy) and 1993-1999 V6 applications with the use of factory LS1 steering shaft (upgrade from standard OEM steering ratio 2.63 turns lock-to-lock)

• Every rack undergoes a rigorous quality check and is performance tested before being packaged

• The pinion tower is angled to fits LS-powered vehicles

• Use with factory power steering hoses or Detroit Speed PN # 090206SDS and 090206LDS adapter fittings and -6 AN power steering hoses

Specs:

• Inner Tie Rod Ball to Ball Width: 728mm (28.7")

• Overall Width: 1338mm (52.7")

• Linear Rack Travel: 120mm (4.7")

• Number of Turns Lock to Lock: 2-1/4

• Mounting Bolt Span: 350.5mm (13.8")

• Mounting Bolt Size: 12mm

• Outer Tie Rod Thread Length: 62mm (2.4")

• Outer Tie Rod Thread Size: M14-1.5

• Input Shaft OEM Asymmetrical: 15mm DD

• Recommended Pump Flow Rate: 1.85 gal/min

• Maximum Peak System Pressure: 1232 psi

• High-Pressure Fitting Thread: M18-1.5

• Low-Pressure Fitting Thread: M16-1.5

You can view and download the assembly/instruction booklet here.
