QUADRALINK REAR SUSPENSION KIT,WELD-IN,73-87 C10,C15

BRAND NEW DETROIT SPEED QUADRALINK REAR SUSPENSION KIT - NON-ADJUSTABLE SHOCKS - WELD-IN AXLE BRACKETS (PART #041751DS).

DETROIT SPEEDS LINE OF SUSPENSION PRODUCTS IS PERFECT FOR ANY CHEVROLET C10 TRUCK ENTHUSIAST! CONTINUING TO REINFORCE THOUGHTFULLY DESIGNED PRODUCTS AND MODERN-DAY RIDE QUALITY, WE ENSURE EACH DRIVER, WHETHER CRUISING OR HAULING, WILL ENJOY THE LOOK AND FEEL OF THEIR TRUCK.

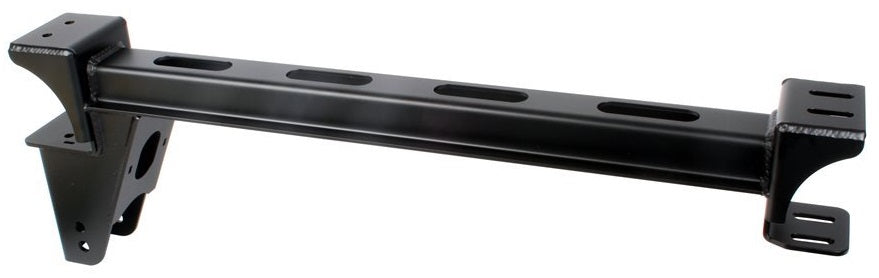

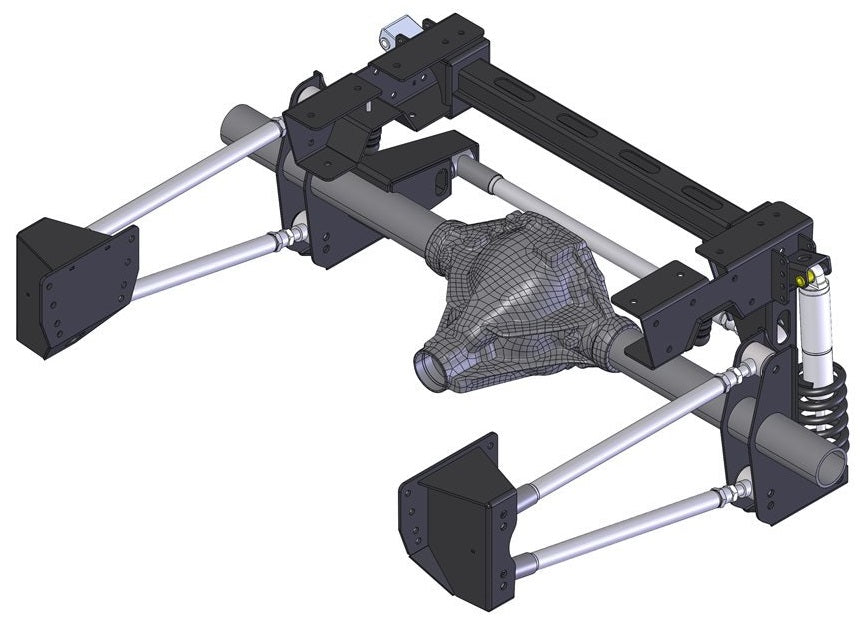

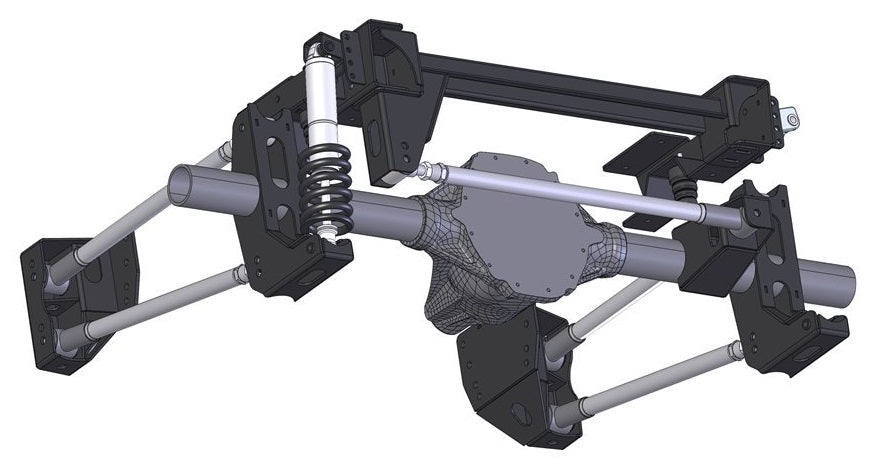

THE DETROIT SPEED QUADRALINK IS A GREAT WAY TO UPGRADE FROM A TRAILING ARM REAR SUSPENSION. DETROIT SPEEDS EXCLUSIVE 4-LINK GEOMETRY DESIGN IS UNCOMPROMISED AND DESIGNED TO ACHIEVE THE BEST POSSIBLE HANDLING DURING ALL CONDITIONS. THE PATENTED "SWIVEL-LINK" TECHNOLOGY COMBINED WITH TUNED HIGH-DUROMETER RUBBER BUSHINGS ALLOW THE SUSPENSION TO FULLY ARTICULATE WITH SMOOTH, SILENT MOTION. THIS SYSTEM UTILIZES A HORIZONTAL TRACK BAR THAT PROVIDES PRECISE AND EFFECTIVE REAR AXLE LATERAL LOCATION DURING HARD CORNERING. THE TRACK BAR IS ALSO ADJUSTABLE FOR ROLL CENTER CONTROL AT VARIOUS RIDE HEIGHTS, AND THE REAR CROSS-MEMBERS ADD STRENGTH AND RIGIDITY TO THE REAR BODY AND FRAME SECTION.

COMPATIBLE WITH:

• CHEVROLET:
  • 1973-1986 C10
  • 1987 R10
• GMC:
  • 1973-1986 C15/C1500
  • 1987 R1500

FEATURES:

• ADJUSTABLE RIDE HEIGHT FROM 5" TO 7.5" OF DROP TO SET THE PERFECT STANCE
• IMPROVED RIDE QUALITY AND STANCE FOR DAILY DRIVING AND LIGHT-DUTY HAULING
• NON WELDED PARTS ARE POWDER-COATED FOR GOOD LOOKS AND CORROSION PROTECTION

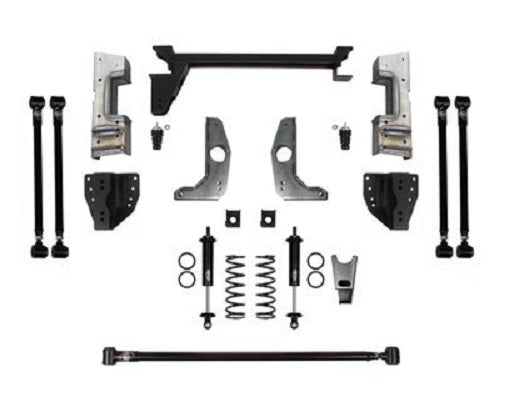

• INCLUDES ADJUSTABLE DETROIT SPEED SWIVEL-LINKS COILOVER SHOCKS AND SPRINGS, INSTALLATION HARDWARE, AND C-NOTCH CUT TEMPLATE FOR EASY RIDE HEIGHT ADJUSTMENTS
• WITH THE SWIVEL-LINKS PINION ANGLE AND/OR WHEELBASE CAN BE ADJUSTED WITHOUT UNBOLTING THE LINK FROM THE TRUCK
• LASER-CUT BRACKETS COMPATIBLE WITH ORIGINAL AXLE, WIRING, AND BRAKE LINES FOR AN EASY INSTALLATION
• ADJUSTABLE UPPER SHOCK MOUNT RELOCATES 1" UP OR DOWN FROM NOMINAL, ALLOWING FOR A CHANGE IN RIDE HEIGHT WITHOUT AFFECTING SHOCK TRAVEL
• C-NOTCH PLATE CREATES ADDITIONAL AXLE CLEARANCE AT LOWER RIDE HEIGHTS
• NON-ADJUSTABLE SHOCKS PROVIDE EXCELLENT RIDE QUALITY ON THE STREET
• WELD IN COMPONENTS FOR A PERMANENT AND STRONG SYSTEM

SPECS:

• AXLE: STOCK
• BRAND: DETROIT SPEED
• PRODUCT TYPE: QUADRALINK KIT
• SHOCK TYPE: NON ADJUSTABLE

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
