FRONT DROP SPINDLE KIT,2.5" DROP,71-72 C10/C15 TRUCKS

Brand New Detroit Speed Front Drop Spindle Kit (Part #032091DS).

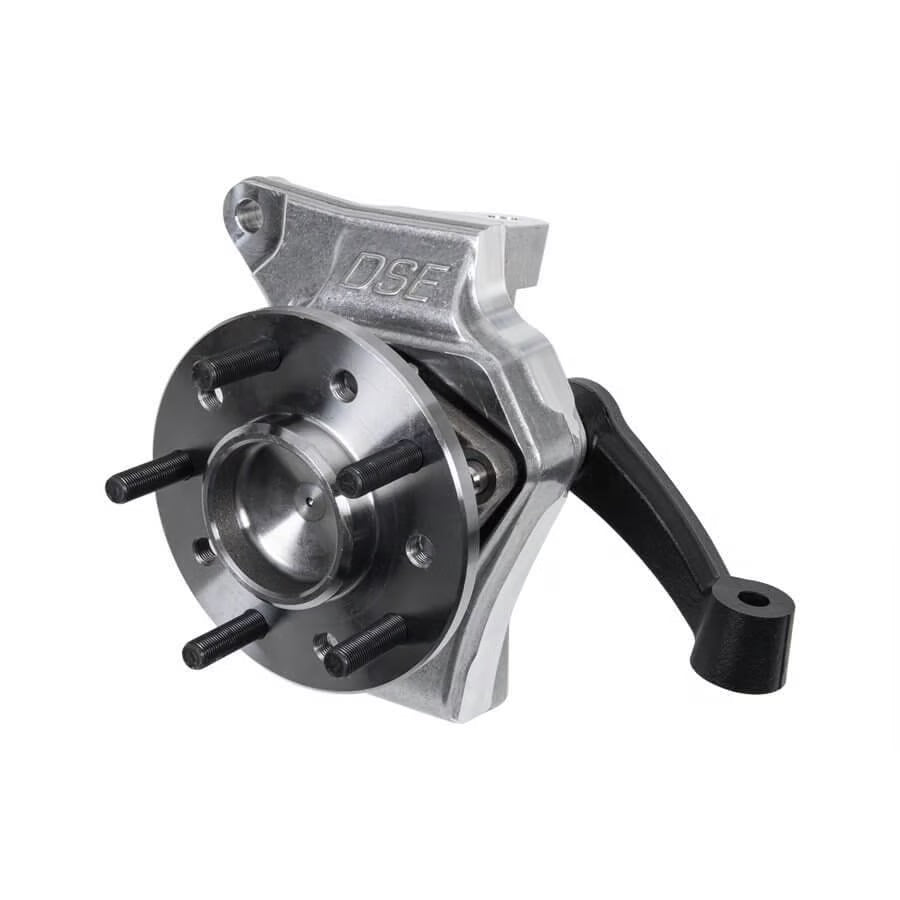

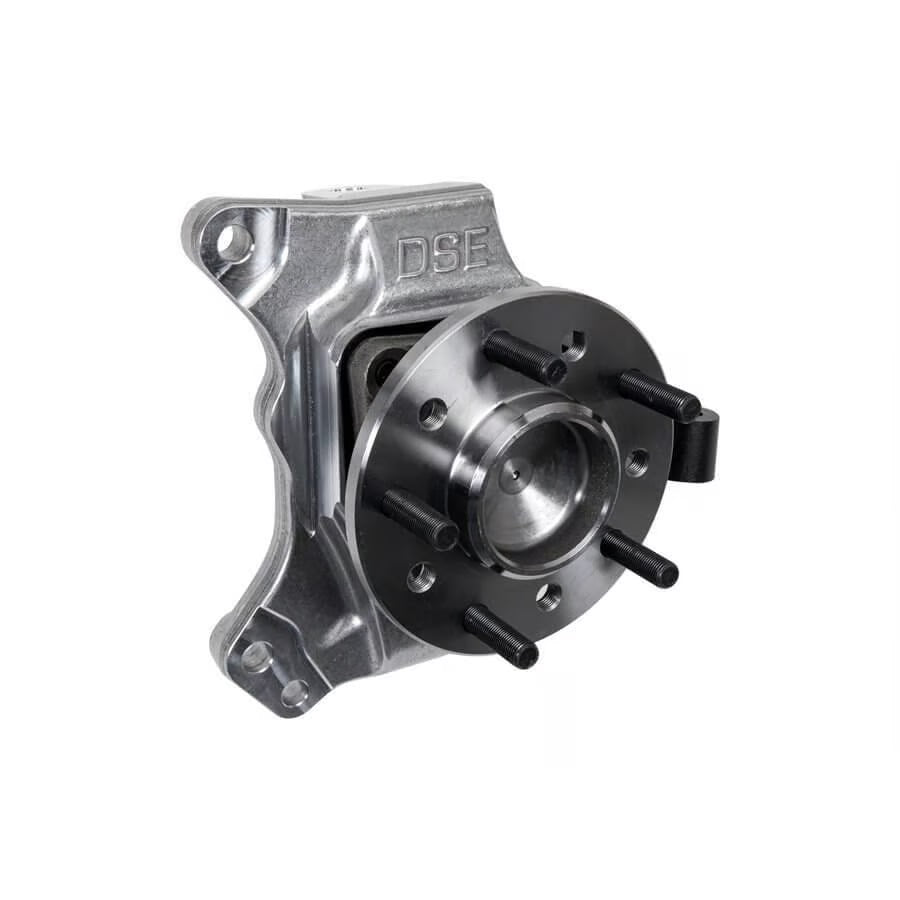

The Detroit Speed Drop Spindle Kit improves the handling and performance of your 1971-1972 Chevrolet/GMC C10/C15 Truck while lowering the front ride height by 2.5 inches. The drop spindle kit includes forged aluminum drop spindles with forged steel steering arms, ball joints, tie-rod ends, and tie-rod adjusters. The uprights feature truck hub pack wheel bearings with a dual bolt pattern (5x5-inch or 5x4.75-inch). The hub bearings use OE-style GMT800 (1999-2006) Silverado brake design, allowing stock or aftermarket brake options.

NOTE: Must use at least 17" wheels with a minimum inside wheel diameter of 16.250". Brakes are required for this installation. GMT 800 style brakes are required for this installation - see instructions for details. This kit is designed to be used with a steering box.

Compatibility:

• Chevrolet:
  • 1971-1972 C10 Pickup
• GMC:
  • 1971-1972 C15/C1500 Pickup

Features:

• Lower Your 1971-1972 Chevrolet/GMC C10/C15 2.50-inch with Forged Aluminum Drop Spindles with Forged Steel Steering Arms

• 100% Bolt-On for a Quick and Easy Installation in Your Garage

• Modern GMT800 (1999-2006 Silverado) Truck Hub Pack, Wheel Bearings with Dual Bolt Pattern (5x5-inch or 5x4.75-inch), Means No More Packing Messy Wheel Bearings

• Made in the USA, DSE Forged Aluminum Spindles with Forged Steel Steering Arms - for Strength and Durability

• Designed to Use the GMT800 Brake Calipers, Brackets, and Pads (requires
• DSE 13-inch dual drilled rotors) - Also Allows Aftermarket Brake Options

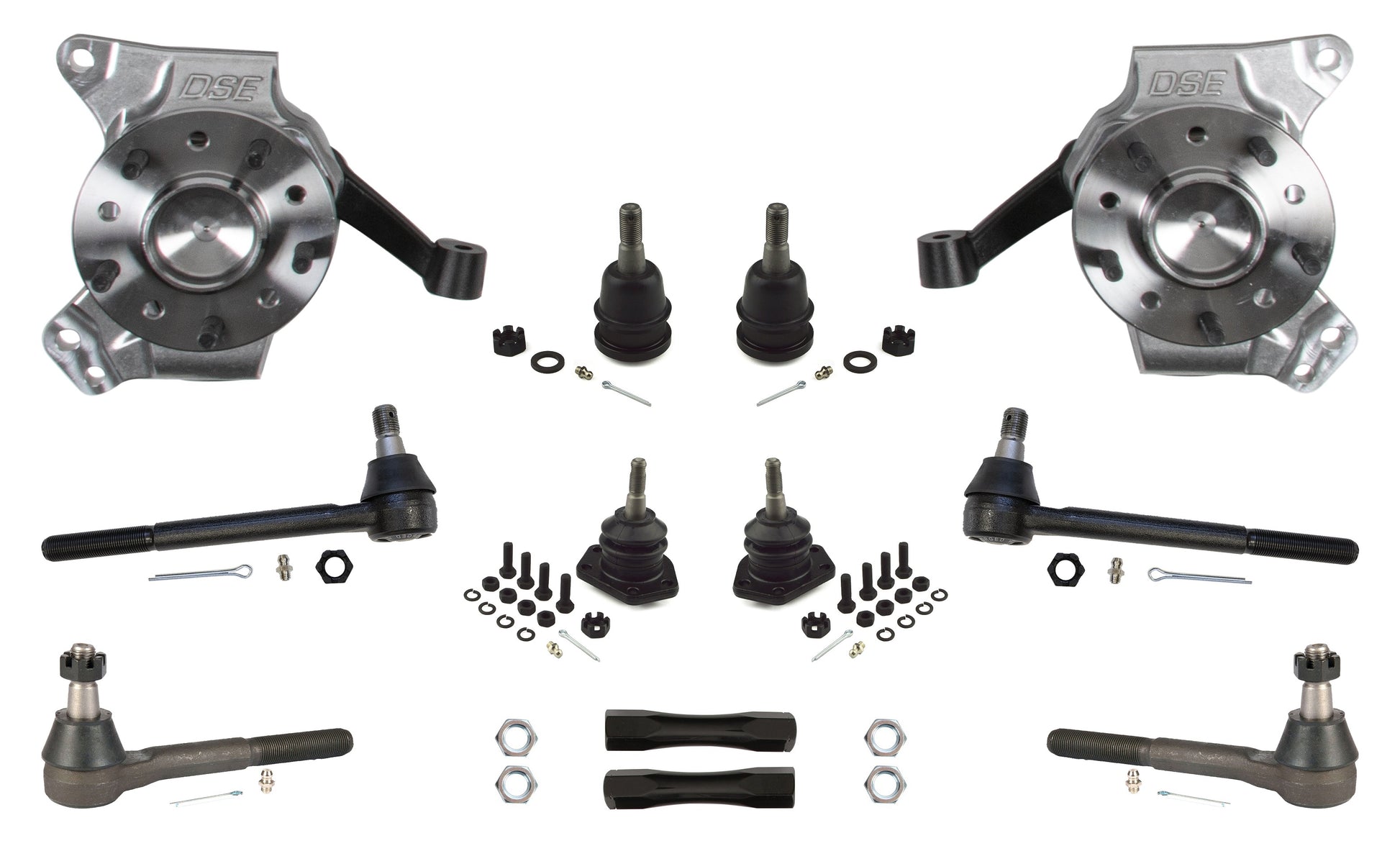

  Includes Spindles, Hub/Wheel Bearings, Steering Arms, Ball Joints, Inner and Outer Tie-Rod Ends, and Tie-Rod Adjusters

Specs:

• Application: 1971-1972 C10 & C15

• Brand: Detroit Speed

• Coil Spring Included: No

• Coil Spring Lowering: N/A

• Drop Spindle: Forged Aluminum

• Lowering: 2.5"

• Product Type: Front Spindles

• Shock Type: N/A

• Sway Bar Diameter: N/A

• Sway Bar Included: No


You can view and download the assembly/instruction booklet here.
