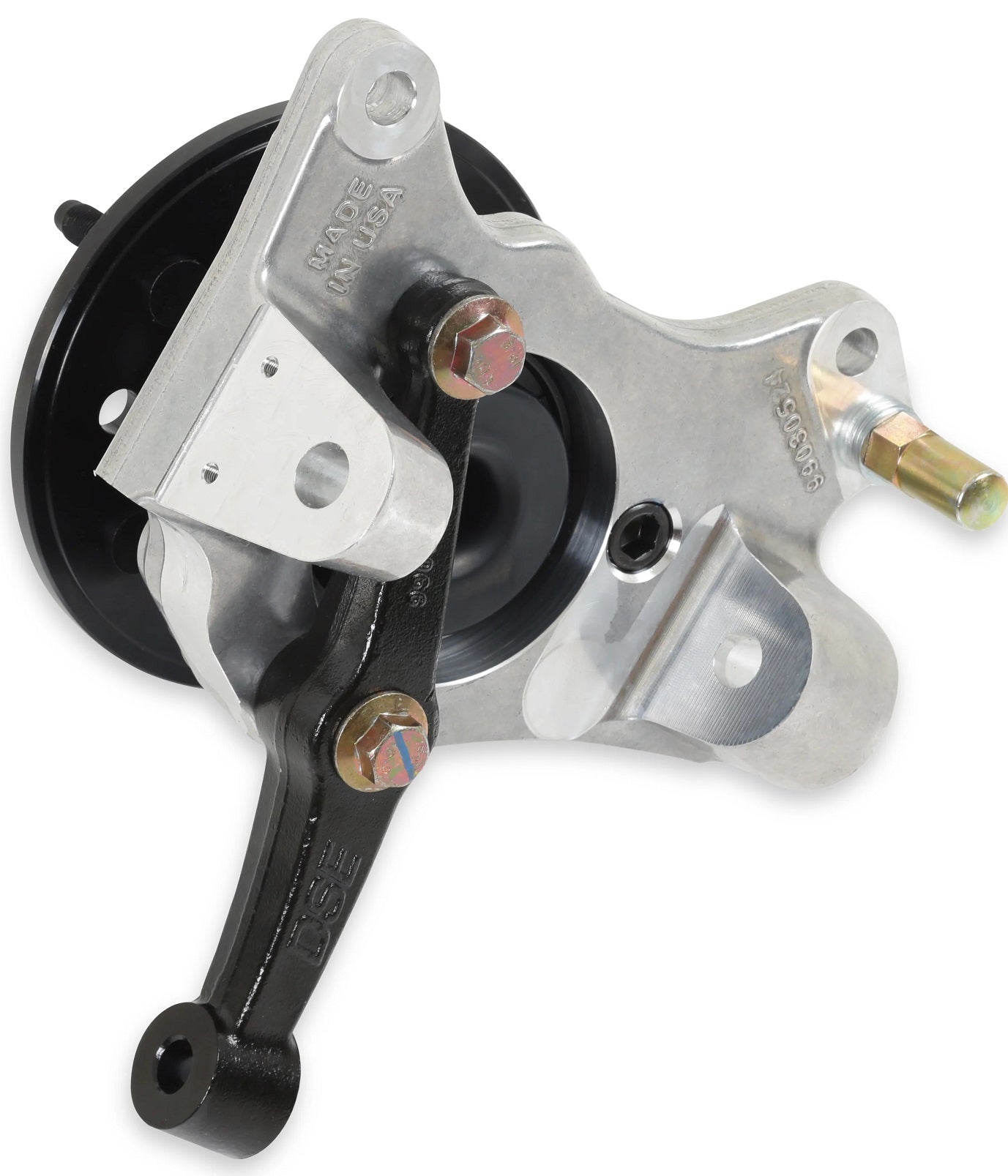

FRONT DROP SPINDLE KIT,2.5" DROP,73-87 C10/C15 TRUCKS

Brand New Detroit Speed Front Drop Spindle Kit (Part #032090DS).

The Detroit Speed Drop Spindle Kit improves the handling and performance of your 1973-1987 Chevrolet/GMC C10/C15 Truck while lowering the front ride height by 2.5 inches. The drop spindle kit includes forged aluminum drop spindles with forged steel steering arms. The uprights feature truck hub pack wheel bearings with a dual bolt pattern (5x5-inch or 5x4.75-inch). The hub bearings use OE-style GMT800 (1999-2006) Silverado brake design, allowing stock or aftermarket brake options.

NOTE: Must use at least 17" wheels with a minimum inside wheel diameter of 16.25". Brakes are required for this installation. GMT 800 style brakes are required for this installation - see instructions for details. This kit is designed to be used with a steering box.

Compatibility:

• Chevrolet:
  • 1975-1986 C10
  • 1973-1974 C10 Pickup
  • 1982-1987 C15
  • 1987 R10
• GMC:
  • 1975-1978 C15
  • 1979-1986 C1500
  • 1973-1974 C15/C1500 Pickup
  • 1987 R1500

Features:

• Lower your 1973-1987 Chevrolet/GMC C10/C15 2.5" with Forged Aluminum Drop Spindles and Forged Steel Steering Arms

• 100% Bolt-On for a Quick and Easy Installation in Your Garage

• Modern GMT800 (1999-2006 Silverado) Truck Hub Pack, Wheel Bearings with Dual Bolt Pattern (5x5-inch or 5x4.75-inch), Means No More Packing Messy Wheel Bearings

• Made in the USA, DSE Forged Aluminum Spindles with Forged Steel
• Steering Arms - for Strength and Durability

• Designed to Use the GMT800 Brake Calipers, Brackets, and Pads (requires
• DSE 13-inch dual drilled rotors) - Also Allows Aftermarket Brake Options

• Includes Spindles, Hub/Wheel Bearings, and Steering Arms

Specs:

• Application: 1973-1987 C10 & C15

• Brand: Detroit Speed

• Coil Spring Included: No

• Coil Spring Lowering: N/A

• Drop Spindle: Forged Aluminum

• Lowering: 2.5"

• Product Type: Front Spindles

• Shock Type: N/A

• Sway Bar Diameter: N/A

• Sway Bar Included: No


You can view and download the assembly/instruction booklet here.
