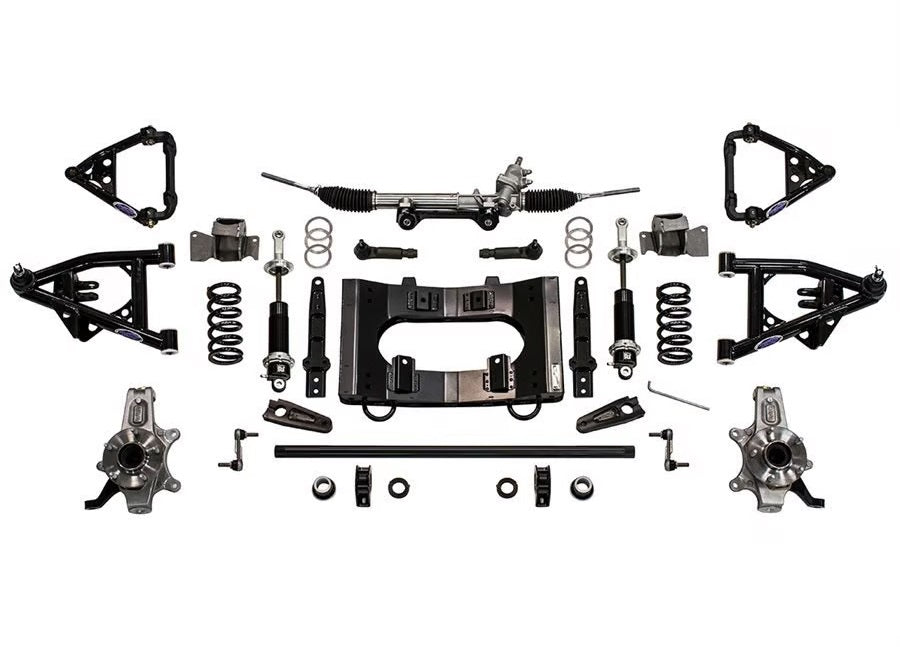

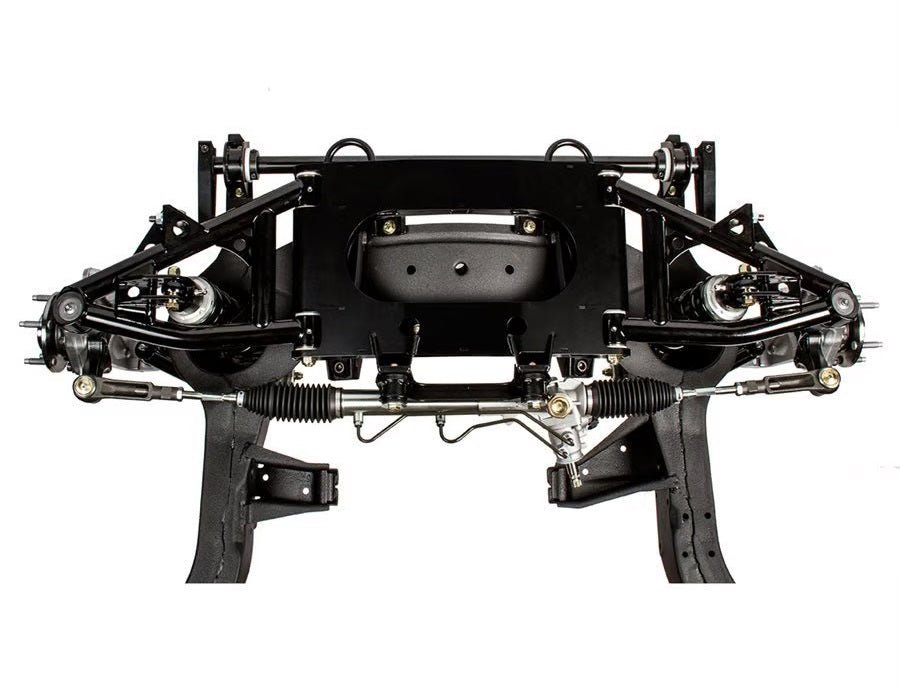

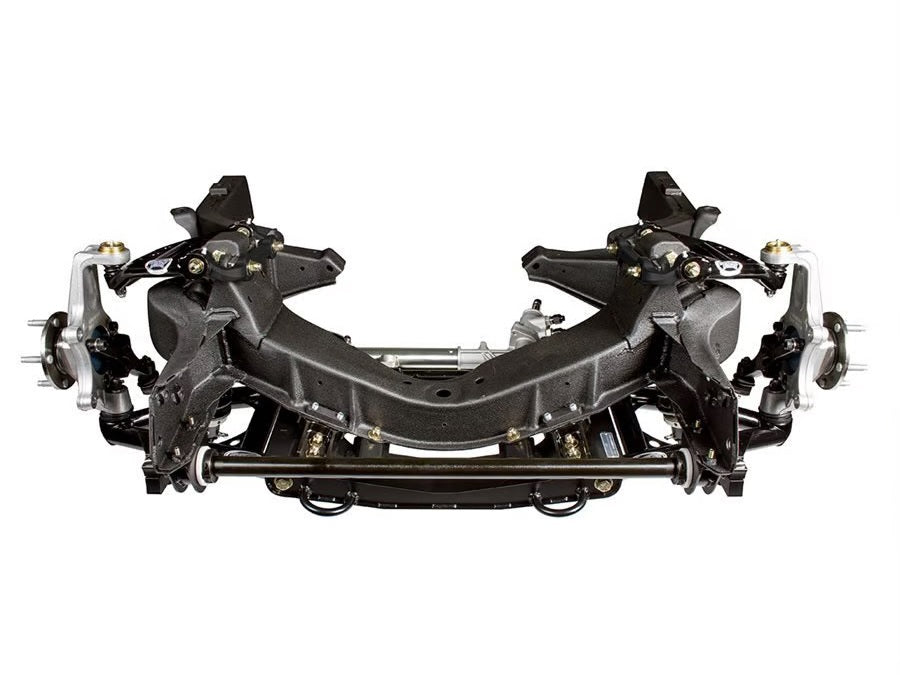

SPEEDRAY FRONT SUSP KIT,SINGLE ADJ,63-82 CORVETTE

Brand New Detroit Speed SpeedRay Front Suspension Kit - Single Adjustable Shocks - Bolt-In Coilover Mounts - SBC/LS, Compatible with 1963-1982 Chevrolet Corvette (Part #032072-SDS).

The new Detroit Speed C2/C3 SPEEDRAY™ front suspension has no compromises and exclusive Detroit Speed suspension geometry for superior handling and ride quality. It is available as a 100% bolt-on system or with a small amount of fabrication for a competition coilover option that allows faster spring changes. The system features 'Detroit Tuned' quick ratio power rack and pinion steering along with forged in the USA Detroit Speed aluminum uprights. The bolt-on powder coated cradle assembly improves suspension geometry, provides rigid mounting for the rack and pinion, and includes integrated tie down eyelets. DSE/JRi 'Detroit Tuned' Coilover shocks/springs allow for spring rate tuning and ride height adjustment.

It also includes a splined sway bar with aluminum arms, composite bushings, powder coated tubular upper and lower control arms with Delrin™ bushings, forged offset upper control arm mounting brackets with caster tuner bushings to optimize suspension geometry and provide clearance for Gen V LT4 engines. The kit also includes Torrington bearings and a spanner tool for easy spring height adjustments. The body and engine do not need to be removed for installation of the SPEEDRAY™ front suspension. Single Adjustable Shock: Includes all features of base shock with 'Detroit Tuned' valving plus installed rebound adjustment with the simple turn of a knob while providing excellent ride quality on the street. Spring Rate: 550lbs/in. Spring Free Length: 8in.

NOTE: For competition applications, the DSE rack & pinion fluid transfer conversion kit will replace the hardlines on your DSE rack & pinion using -4 AN steel fittings. The hoses are Teflon lined to handle the high pressure demands of the steering system and come with pre-crimped stainless steel fittings to attach to the -4 AN fittings.

Compatible with:

• Chevrolet:
  • 1963-1982 Corvette

Features:

• TIG welded tubular upper and lower control arms

• Aluminum body coilover shocks with "Detroit Tuned" valving

• Coilover springs

• "Detroit Tuned" power rack and pinion steering

• Integrated splined sway bar with composite bushings

• Control arm cross shafts with caster tuner bushings

• Forged aluminum Detroit Speed spindles

Specs:

• Brand: Detroit Speed
• Finish: Aluminum
• Coilover Mount Style: Bolt-In
• Product Type: SpeedRay Subframe
• Total Suspension Travel: 6in.
• Ackerman Angle (Full Turn): 5.2
• Ride Height: 7.6" +/-1.0"
• Shock Type: Single Adjustable
• Static Camber: -0.5 degrees +/-0.2 degrees
• Static Caster: 7.5 degrees +/- 0.5 degrees
• Static Toe: 0 degrees +/- 0.1 degrees
• Max Turning Angle (Outside Wheel): 27.5 degrees


You can view and download the complete assembly instruction booklets for this subframe here.
