C2/C3 FRONT SUS W FAB UP C/O MNTS 550

Brand New Detroit Speed SpeedRay Front Susp Kit DBL Adj Remote Shock Fab CO Mounts SBC/LS - 1963-1982 Chevrolet Corvette (Part #032070-RDS)

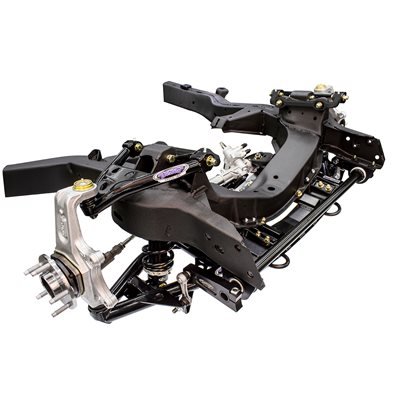

The new Detroit Speed C2/C3 SPEEDRAY front suspension has no compromises and exclusive Detroit Speed suspension geometry for superior handling and ride quality. It is available as a 100% bolt-on system or with a small amount of fabrication for a competition coilover option that allows faster spring changes. The system features 'Detroit Tuned' quick ratio power rack and pinion steering along with forged in the USA Detroit Speed aluminum uprights. The bolt-on powder coated cradle assembly improves suspension geometry, provides rigid mounting for the rack and pinion, and includes integrated tie down eyelets. DSE/JRi 'Detroit Tuned' Coilover shocks/springs allow for spring rate tuning and ride height adjustment. It also includes a splined sway bar with aluminum arms, composite bushings, powder coated tubular upper and lower control arms with Delrin bushings, forged offset upper control arm mounting brackets with caster tuner bushings to optimize suspension geometry and provide clearance for Gen V LT4 engines. The kit also includes Torrington bearings and a spanner tool for easy spring height adjustments. The body and engine do not need to be removed for installation of the SPEEDRAY front suspension. Remote Canister Monotube Double Adjustable Shock:This DSE/JRi shock has all of the qualities of the double adjustable shock and incorporates a gas charged bladder to provide high frequency and low speed dampening control. Remote Canister Shock Mounts: These billet aluminum shock mounts are manufactured for securing your remote shock canisters to the vehicle. The shocks mount with two 1/4"-20 x 1/2" button head screws. Spring Rate: 550lbs/in, Spring Free Length: 8in

• Chevrolet:
  • 1963-1982 Corvette

• TIG welded tubular upper and lower control arms
• Aluminum body coilover shocks with "Detroit Tuned" valving
• Coilover springs
• "Detroit Tuned" power rack and pinion steering
• Integrated splined sway bar with composite bushings
• Control arm cross shafts with caster tuner bushings
• Forged aluminum Detroit Speed spindles
