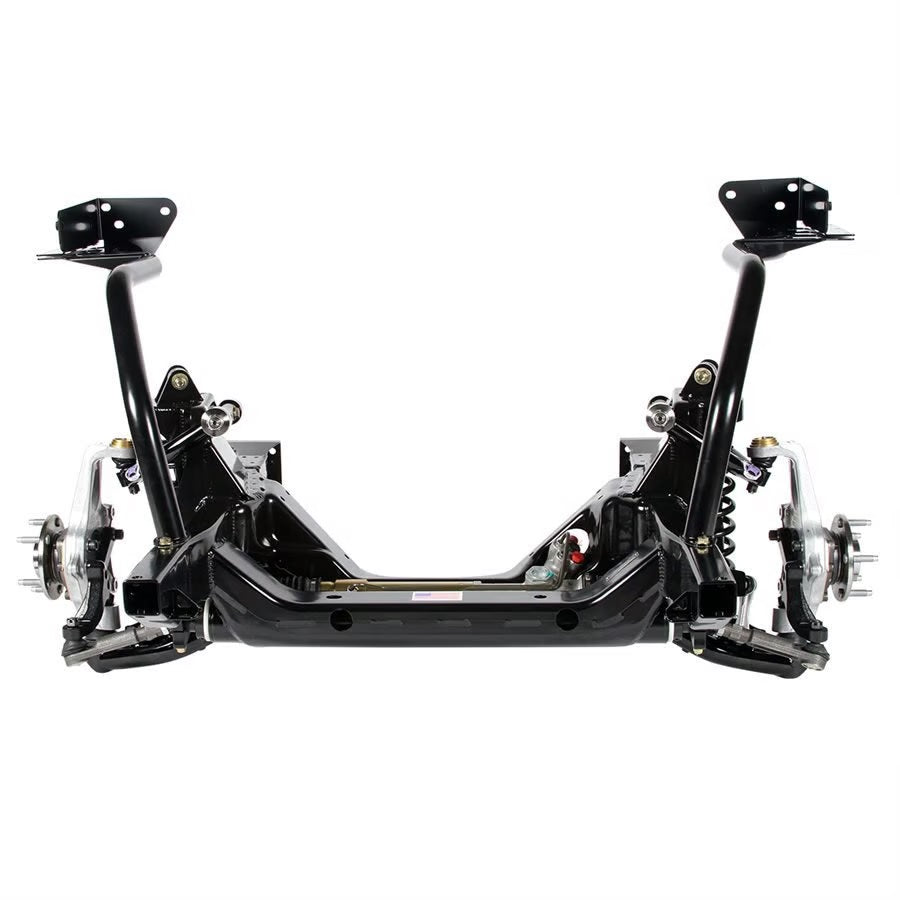

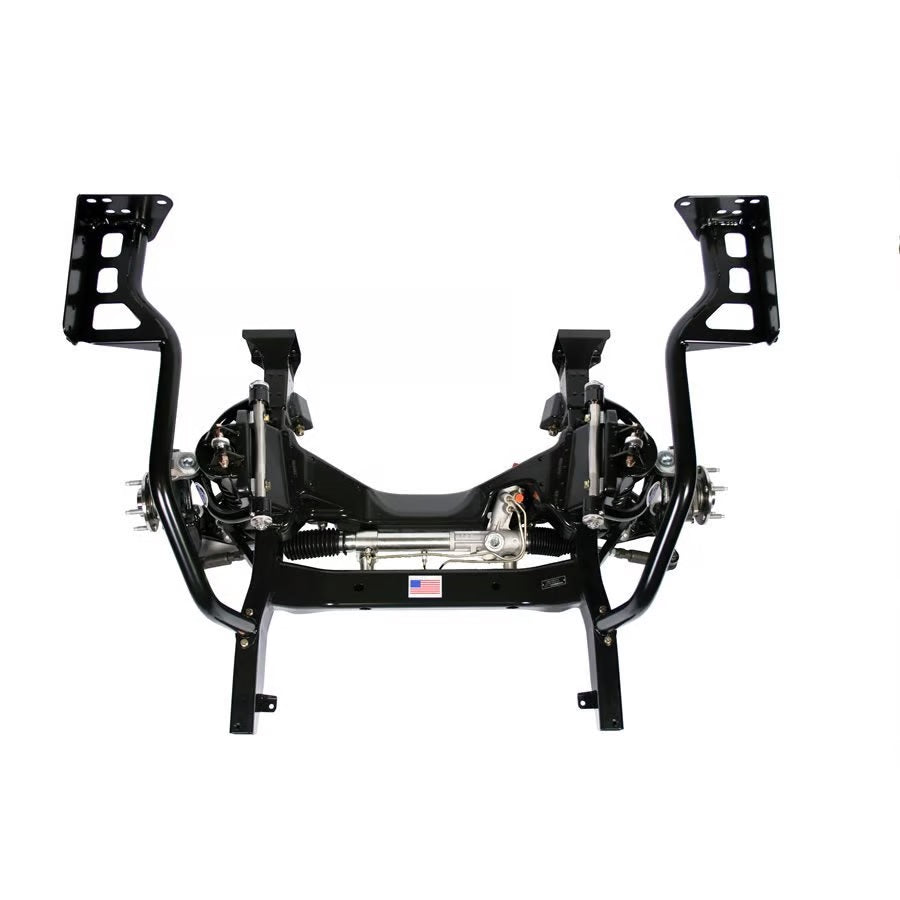

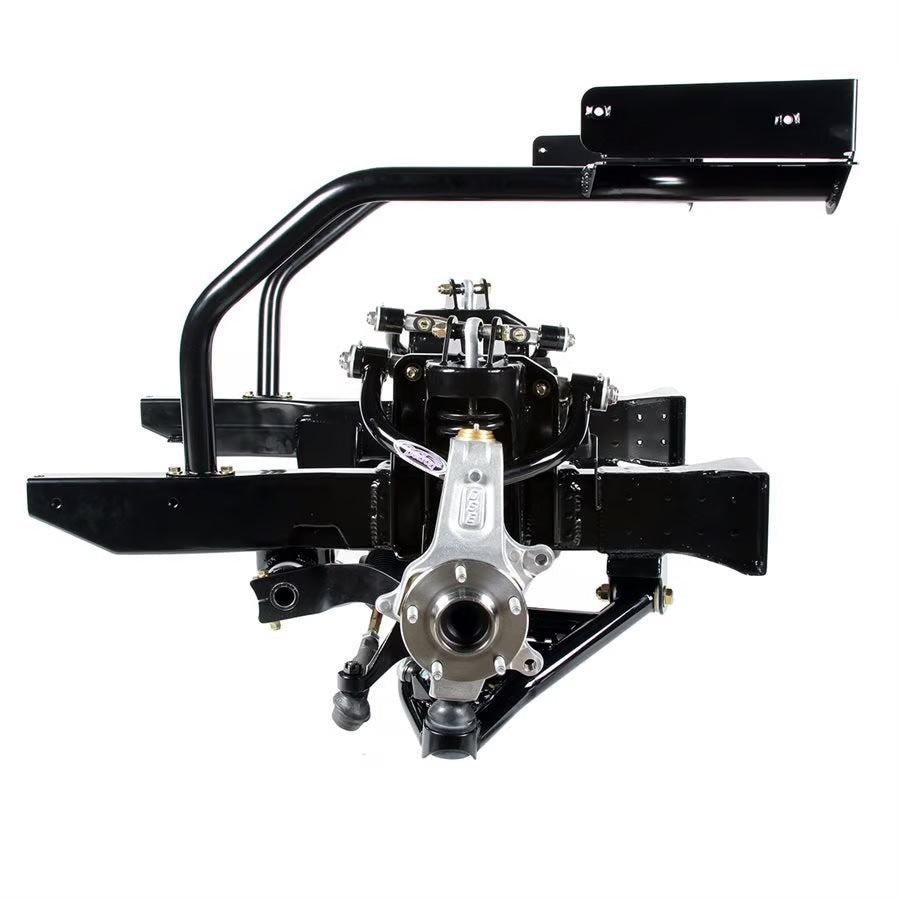

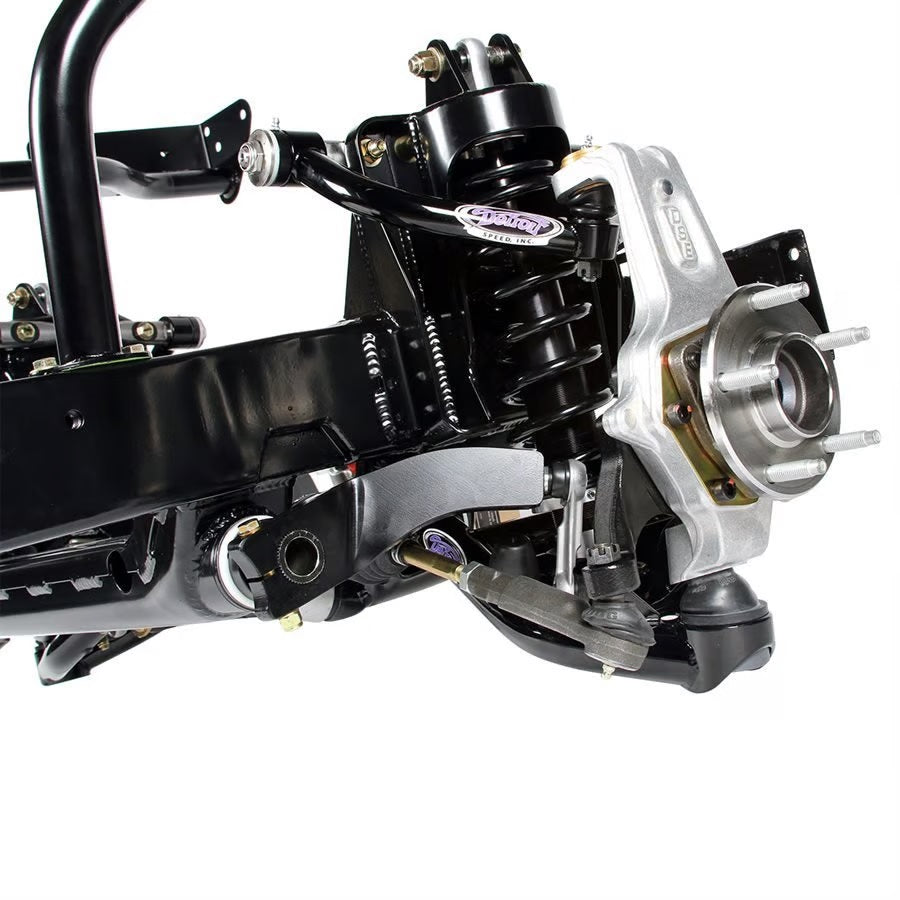

FRONT FRAME,SINGLE ADJ,66-67 CHEVY II

Brand New Detroit Speed Powder Coated Hydroformed Subframe - Double Adjustable Shocks - SBC & LS, Compatible with 1967-1969 Chevrolet Camaro, Pontiac Firebird, and 1968-1974 Chevrolet Nova (Part #032034-SDS).

Detroit Speed's front frame is a bolt-in replacement for the original stock subframe. It improves the handling and ride quality by utilizing Detroit Speed's unique suspension geometry. It is the ONLY Chevy II frame in the aftermarket industry with OEM quality stamped crossmembers for improved structural rigidity. The bay bars feature rigid integral hood hinge mounting and are hidden when used with Detroit Speed's Chevy II Inner Fenders package. Spring Rate: 400 lbs./in Spring Free Length: 10 in.

Single Adjustable Shock. Includes all features of base shock with 'Detroit Tuned' valving plus installed rebound adjustment with the simple turn of a knob while providing excellent ride quality on the street. SBC and LS engines have been designed as a direct bolt-in to this frame. The Detroit Speed frame has been designed, engineered, and developed for the road and track. This frame blends the benefits of current OEM technology and aftermarket performance into one product! The frame is sold in bare metal, uncoated and unassembled. If the powder coat option is purchased, assembly is included.

NOTE:   Must use at least 17" wheels that require a minimum inside wheel diameter of 16.250". For competition applications, the Detroit Speed rack & pinion fluid transfer conversion kit will replace the hardlines on your Detroit Speed rack & pinion using -4 AN steel fittings. The hoses are PTFE lined to handle the high pressure demands of the steering system and come with pre-crimped stainless steel fittings to attach to the -4 AN fittings.

Compatible with:

• Chevrolet:
  • 1966-1967 Chevy II

Features:

• TIG welded tubular upper and lower control arms

• OEM Quality stamped crossmembers

• Aluminum body coilover shocks with "Detroit Tuned" valving

• Coilover springs

• "Detroit Tuned" power rack and pinion steering

• Integrated splined sway bar with composite bushings

• Control arm cross shafts with caster tuner bushings

• Forged aluminum Detroit Speed spindles


Specs:

• Brand: Detroit Speed
• Control Arm Finish: Bare
• Product Type: Chevy II Front Subframe
• Spring Rate: 400lbs/in.
• Spring Free Length: 10in.
• Shock Type: Single Adjustable

You can view and download the complete assembly instruction booklets for this subframe here.
