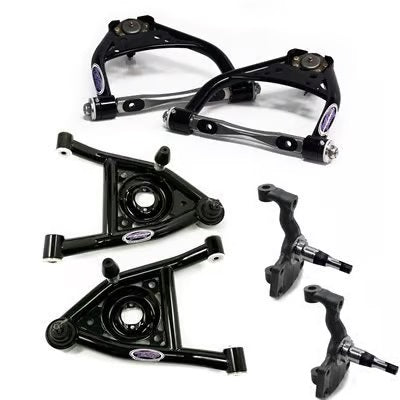

CONTROL ARM & SPINDLE KIT,67-72 A BODY

BRAND NEW DETROIT SPEED CONTROL ARM & SPINDLE KIT, COMPATIBLE WITH 1967-1972 GM A-BODY (PART #030105DS)

DETROIT SPEEDS EXCLUSIVE CONTROL ARM AND SPINDLE KIT IS DESIGNED TO WORK AS AN INTEGRATED SYSTEM ON YOUR VEHICLE. THE DETROIT SPEED SPINDLE IS 1-1/2" TALLER THAN THE STOCK SPINDLE AND PROVIDES 2" OF DROP FROM STOCK HEIGHT. THE TALLER SPINDLE HEIGHT IMPROVES HANDLING BY MODIFYING THE CAMBER CURVE RESULTING IN A NEGATIVE CAMBER GAIN DURING SUSPENSION COMPRESSION. THE STOCK STEER ARMS MOUNT IN THE OPTIMAL LOCATION TO MINIMIZE BUMP STEER. DETROIT SPEEDS A-BODY TUBULAR UPPER CONTROL ARMS PROVIDE INCREASED STRENGTH AND ADDITIONAL POSITIVE CASTER. THEY FEATURE FIVE AXIS LASER CUT TUBE ENDS AND BALL JOINT POCKETS FOR A PRECISE FIT. THE UPPER CONTROL ARMS ARE TIG WELDED IN FIXTURES TO GUARANTEE GEOMETRIC ACCURACY AND REPEATABILITY. THEY HAVE DELRIN BUSHINGS, NEW BALL JOINTS, AND A GLOSS BLACK POWDERCOAT FINISH. THE DETROIT SPEED A-BODY LOWER CONTROL ARMS FEATURE A ROBUST TUBULAR DESIGN WITH GUSSETS AND A CROSS BRACE. THEY FEATURE FIVE AXIS LASER CUT TUBE ENDS AND BALL JOINT POCKETS FOR A PRECISE FIT. THE LOWER CONTROL ARMS ARE TIG WELDED IN FIXTURES TO GUARANTEE GEOMETRIC ACCURACY AND REPEATABILITY. THEY HAVE DELRIN BUSHINGS WITH STEEL HOUSINGS AND CRUSH TUBES, NEW BALL JOINTS, AND A GLOSS BLACK POWDERCOAT FINISH.

APPLICATIONS:

INCLUDES:

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.
