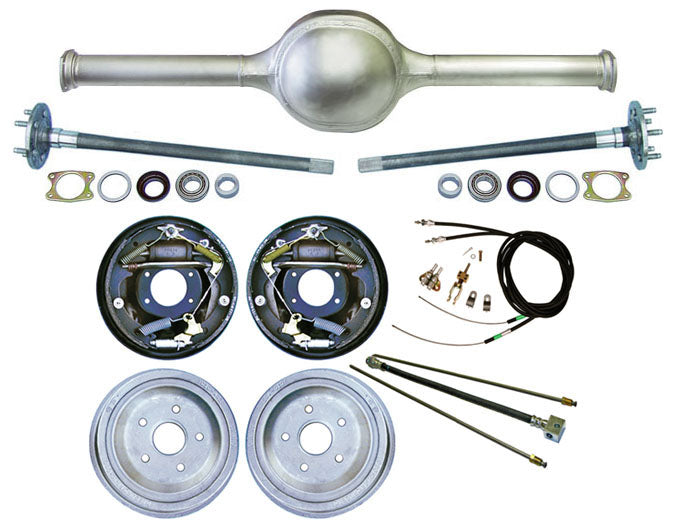

9" FORD 54" REAR END & BRAKES,10" DRUMS

9" FORD 54" REAR END & BRAKES,10" DRUMS

CUR UHR54INX-K0

$2,199.99
$2,199.99
This item requires an additional shipping fee of $60 over standard shipping.
View full details
  • CURRIE ENTERPRISES 9" FORD 54" REAR END WITH 31 SPLINE AXLES WITH CURRIE 10" DRUM BRAKE KIT, PARKING BRAKE CABLE KIT, AND BRAKE LINE KIT (PART #UHR54INX-K0). THESE ARE IDEAL FOR STREET RODS, HOT RODS, RAT RODS, RESTORATIONS, AND NUMEROUS OTHER PROJECTS.
    • ***THIS SET INCLUDES DRUMS THAT HAVE A 5 X 4 3/4" BOLT PATTERN. IF YOU NEED THE 5 X 4 1/2", JUST LET US KNOW AND WE CAN MAKE THAT SUBSTITUTION FOR YOU.***

    INCLUDES:

    • CURRIE 9-PLUS ROUND-BACK REAR END WITH 31 SPLINE AXLES (CURRIE #CE-UHR54INX)
      • 9-PLUS ROUNDBACK HOUSING
      • 31 SPLINE PERFORMANCE AXLE PACKAGE
      • 54" OVERALL WIDTH:
        • 54" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
        • WE ALSO HAVE THESE REAR ENDS AVAILABLE IN SEVERAL OTHER WIDTHS
      • HOUSING IS BUILT HOUSING-CENTERED WITH A 0.94" PINION OFFSET
      • STEEL 3" DIAMETER TUBES
      • SMALL WEBBED-STYLE CENTER EASILY ACCEPTS TRIANGULATED 4-LINK BRACKETS
      • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DO NOT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS
      • AXLES INCLUDE:
        • BOTH 5 X 4 1/2" AND 5 X 4 3/4" WHEEL BOLT PATTERNS
        • INCLUDES ONE SET OF 7/16" STUDS AND ONE SET OF 1/2" STUDS
        • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
        • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
      • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO", WHICH FIT THE CURRIE DRUMS PERFECTLY
    • CURRIE 10" HYDRAULIC DRUM BRAKE KIT (CURRIE PART #CE-6005B475):
      • CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
      • BRAKE KIT INCLUDES:
        • 10" HYDRAULIC DRUMS
          • 2 1/2" X 10"
          • 2.80" CENTER REGISTER HOLE
          • INCLUDES CABLE OPERATED PARKING BRAKE MECHANISMS
    • PARKING BRAKE CABLE KIT:
      • CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION
    • HARD LINE KIT:
      • STEEL HARD BRAKE LINE TUBING TO CONNECT THE CURRIE DRUMS TO THE INCLUDED RUBBER HOSE
      • RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINE ON THE FRAME
      • NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
