71-74 B MOPAR REAR END & WILWOOD 11" DISC BRAKES,LINES,CABLES,BLACK CALIPERS

71-74 B MOPAR REAR END & WILWOOD 11" DISC BRAKES,LINES,CABLES,BLACK CALIPERS

CUR MPB7174X-K4

$2,999.99
$2,999.99
This item requires an additional shipping fee of $60 over standard shipping.
View full details

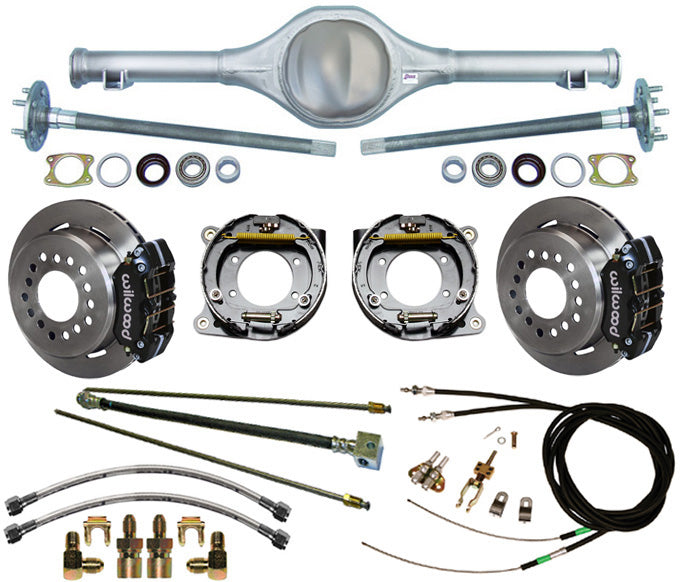

  • CURRIE ENTERPRISES REAR END WITH 31 SPLINE AXLES WITH WILWOOD DISC BRAKE KIT, PARKING BRAKE CABLE KIT, AND BRAKE LINE KIT FOR THE APPLICATIONS BELOW (PART #MPB7174X-K4). CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

    • FITS:

    • MOPAR:
      • 1971-1974 MOPAR B-BODY
    • DODGE:
      • 1971-1974 CHARGER
      • 1971-1974 CORONET
    • PLYMOUTH:
      • 1971 GTX
      • 1971-1974 ROAD RUNNER
      • 1971-1974 SATELLITE
    INCLUDES:

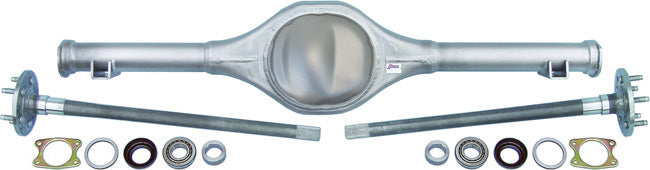

    • CURRIE 9-PLUS NOTCH-BACK REAR END WITH 31 SPLINE AXLES (CURRIE #CE-CE-MPB7174X)
      • 9-PLUS NOTCHBACK HEAVY DUTY HOUSING
      • 31 SPLINE PERFORMANCE AXLE PACKAGE
      • BUILT TO THE STOCK OVERALL WIDTH (63") AND PINION OFFSET SPECS
        • 63" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
      • HEAVY-DUTY LEAF SPRING PADS ARE INSTALLED IN THE STOCK LOCATION FOR AN EASY BOLT-IN INSTALLATION
      • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
      • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DONT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS
      • AXLES INCLUDE:
        • STOCK 5 X 4 1/2" WHEEL BOLT PATTERN
        • WHEEL STUDS INSTALLED
        • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
        • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
      • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO", WHICH FIT THE WILWOOD BRAKES PERFECTLY

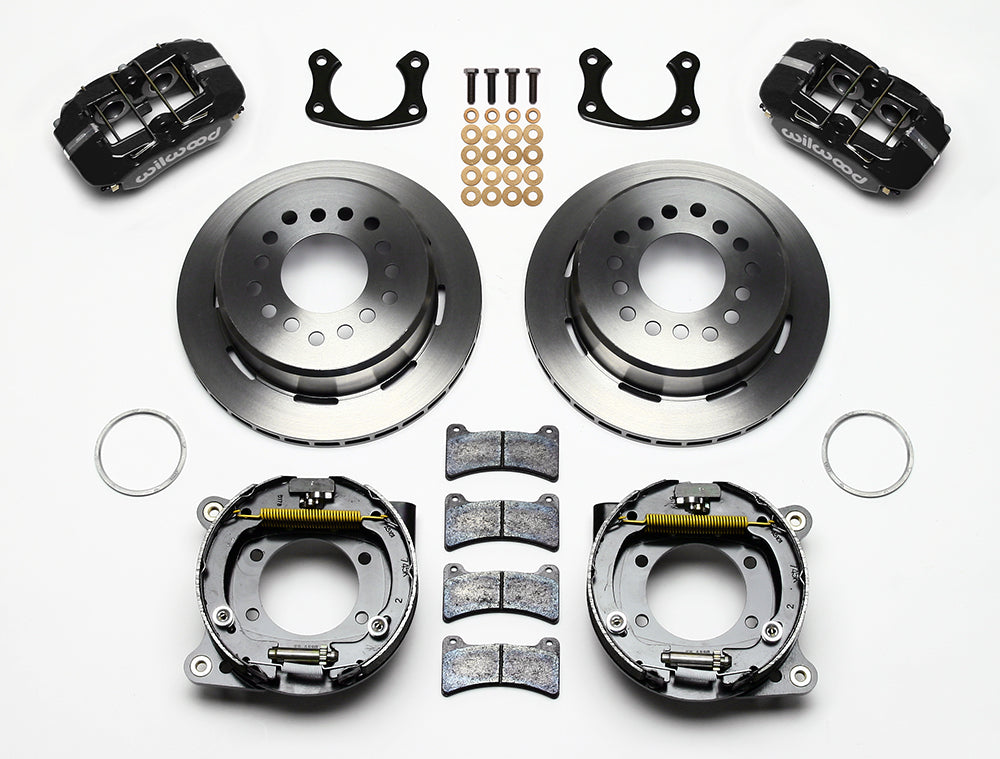

    • WILWOOD 11" DISC BRAKE KIT WITH STANDARD ROTORS AND BLACK CALIPERS (WILWOOD PART #140-11389):
      • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
      • DYNAPRO LOW-PROFILE PRO-SERIES REAR DISC BRAKE KITS PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLE. FORGED BILLET DYNAPRO LOW-PROFILE FOUR-PISTON CALIPERS, 11" ONE-PIECE HAT AND ROTOR ASSEMBLIES, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF CUSTOM PERFORMANCE STREET/STRIP AND SHOW MACHINES. THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING
      • THESE LOW-PROFILE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS
      • BRAKE KIT INCLUDES:
        • .810" THICK X 11.00" O.D. ROTORS WITH HATS
      • LOW-PROFILE 4 PISTON DYNAPRO CALIPERS - BLACK
      • DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS
      • BEARING RETAINERS
      • BP-10 SMART COMPOUND BRAKE PADS
      • ALL BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

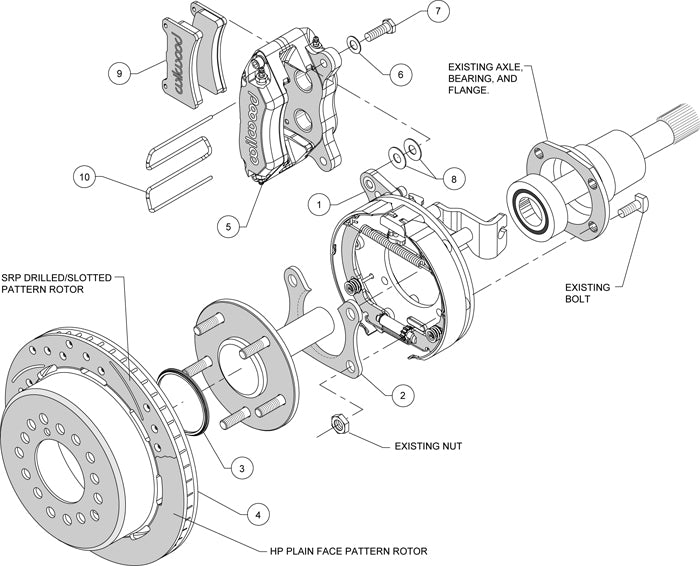

    • YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS BRAKE KIT HERE
  • PARKING BRAKE CABLE KIT:
    • CONNECTS TO THE WILWOOD PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION
  • FLEXLINE KIT:
    • STEEL BRAIDED BRAKE LINES, CALIPER FITTINGS, AND CHASSIS FITTINGS TO CONNECT THE CALIPERS TO THE HARD LINES
    • ALSO INCLUDES WELD-ON LINE TABS TO INSTALL ON YOUR REAR END
  • HARD LINE KIT:
    • STEEL HARD BRAKE LINE TUBING TO CONNECT THE CHASSIS FITTINGS TO THE INCLUDED RUBBER HOSE
    • RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINE ON THE FRAME
    • NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
    • Currie Mopar Rear Ends
