97-06 JEEP WRANGLER REAR&BRAKES,10"DRUMS

97-06 JEEP WRANGLER REAR&BRAKES,10"DRUMS

CUR JTJ9704X-K0

$2,999.99
$2,999.99
This item requires an additional shipping fee of $60 over standard shipping.
View full details

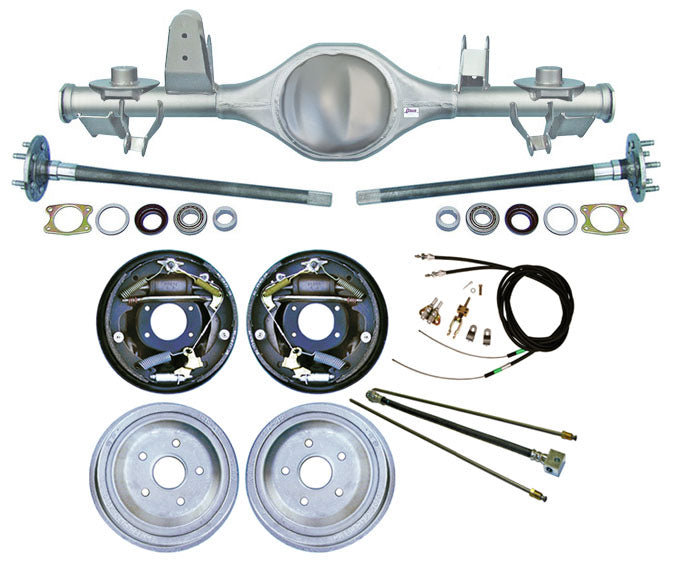

  • CURRIE ENTERPRISES REAR END WITH 31 SPLINE AXLES WITH CURRIE 10" DRUM BRAKE KIT, PARKING BRAKE CABLE KIT, AND BRAKE LINE KIT FOR THE APPLICATIONS BELOW (PART #JTJ9704X-K0). CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

    • FITS:

    • JEEP:
      • 1997-2006 TJ WRANGLER, INCLUDING RUBICON, SAHARA, SPORT, TOMB RAIDER, UNLIMITED, AND X

    INCLUDES:

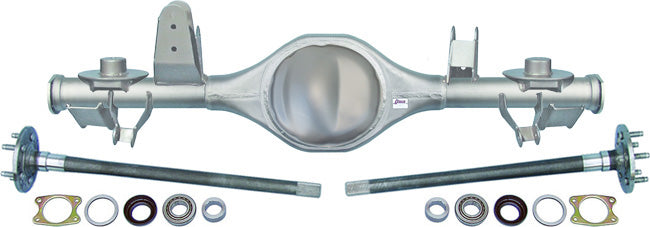

    • CURRIE 9-PLUS NOTCH-BACK REAR END WITH 31 SPLINE AXLES (CURRIE #CE-JTJ9704X)
      • 9-PLUS NOTCHBACK HEAVY DUTY HOUSING
      • 31 SPLINE PERFORMANCE AXLE PACKAGE
      • BUILT TO THE STOCK OVERALL WIDTH (60 1/2") AND PINION OFFSET SPECS
        • 60 1/2" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
      • ALL STOCK SUSPENSION BRACKETS ARE INSTALLED IN THE STOCK LOCATION FOR AN EASY BOLT-IN INSTALLATION INCLUDING TRAC BAR AND SHOCK MOUNTS
      • MULTIPLE TRAC BAR MOUNTING HOLES FOR VARYING LIFT AMOUNTS
      • SPRING INDEXING HUBS ARE PRE-DRILLED AND THREADED FOR AFTERMARKET BUMPSTOP KITS
      • SHOCK MOUNTS ARE ROLLED BACK TO ALLOW SHOCK BODY TO CLEAR SPRING PAD
      • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
      • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DO NOT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS
      • AXLES INCLUDE:
        • AXLES ARE DRILLED FOR BOTH 5 X 4 1/2" AND 5 X 5 1/2" WHEEL BOLT PATTERNS
        • WHEEL STUDS INSTALLED IN THE STOCK 5 X 4 1/2" PATTERN
        • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
        • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
      • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO", WHICH FIT THE CURRIE DRUMS PERFECTLY

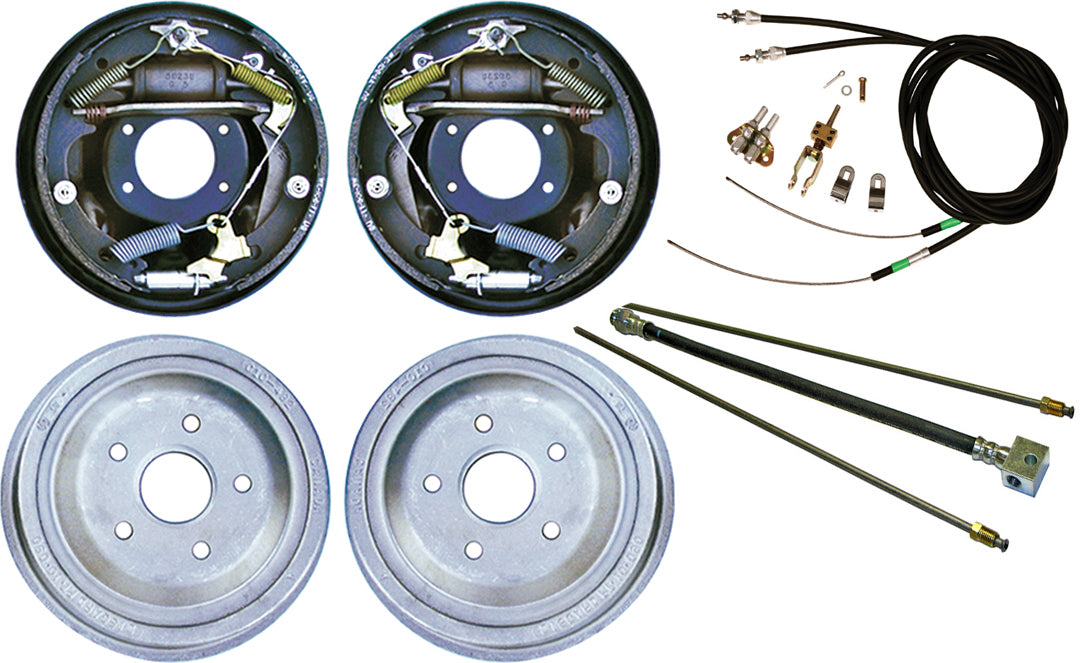

    • CURRIE 10" HYDRAULIC DRUM BRAKE KIT (CURRIE PART #CE-6005B412):
      • CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
      • BRAKE KIT INCLUDES:
        • 10" HYDRAULIC DRUMS
          • 5 X 4 1/2" BOLT PATTERN
          • 2 1/2" X 10"
          • 2.80" CENTER REGISTER HOLE
          • INCLUDES CABLE OPERATED PARKING BRAKE MECHANISMS
    • PARKING BRAKE CABLE KIT:
      • CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION
    • HARD LINE KIT:
      • STEEL HARD BRAKE LINE TUBING TO CONNECT THE CURRIE DRUMS TO THE INCLUDED RUBBER HOSE
      • RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINE ON THE FRAME
      • NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
    Currie Jeep Rear Ends
