68-74 X-BODY MUL REAR END/BRAKES,11"DRUM

68-74 X-BODY MUL REAR END/BRAKES,11"DRUM

CUR GMN6872M-K1

$2,399.99
$2,399.99
This item requires an additional shipping fee of $60 over standard shipping.
View full details

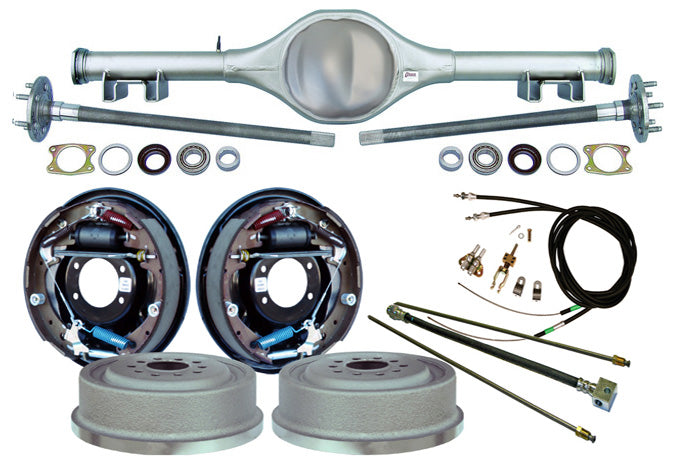

  • CURRIE ENTERPRISES REAR END WITH 31 SPLINE AXLES WITH CURRIE 11" DRUM BRAKE KIT, PARKING BRAKE CABLE KIT, AND BRAKE LINE KIT FOR THE APPLICATIONS BELOW (PART #GMN6872M-K1). CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

    • FITS:

    • CHEVROLET:
      • 1968-1974 CHEVY II & NOVA WITH MULTI-LEAF SPRINGS
    • BUICK:
      • 1973-1974 APOLLO WITH MULTI-LEAF SPRINGS
    • OLDSMOBILE:
      • 1973-1974 OMEGA WITH MULTI-LEAF SPRINGS
    • PONTIAC:
      • 1971-1974 VENTURA WITH MULTI-LEAF SPRINGS
    • WE ALSO HAVE THESE REAR ENDS SETS FOR MONO-LEAF VEHICLES AS WELL

    INCLUDES:

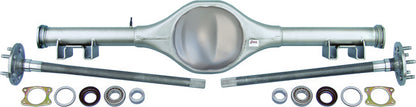

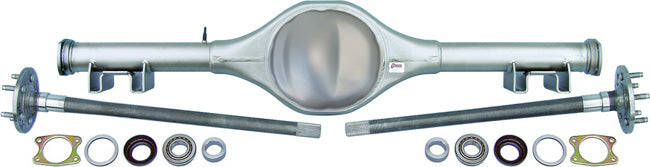

    • CURRIE 9-PLUS NOTCH-BACK REAR END WITH 31 SPLINE AXLES (CURRIE #CE-GMN6872MX)
      • 9-PLUS NOTCHBACK HEAVY DUTY HOUSING
      • 31 SPLINE PERFORMANCE AXLE PACKAGE
      • BUILT TO THE STOCK OVERALL WIDTH (60 1/4") AND PINION OFFSET SPECS
        • 60 1/4" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
      • HEAVY DUTY REPRODUCTIONS OF THE STOCK GM MULTI LEAF SPRING PADS ARE INSTALLED IN THE STOCK LOCATION FOR AN EASY BOLT IN INSTALLATION
      • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
      • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DONT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS
      • AXLES INCLUDE:
        • STOCK 5 X 4 3/4" WHEEL BOLT PATTERN
        • WHEEL STUDS INSTALLED
        • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
        • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
      • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO", WHICH FIT THE CURRIE DRUMS PERFECTLY

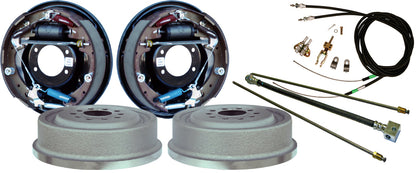

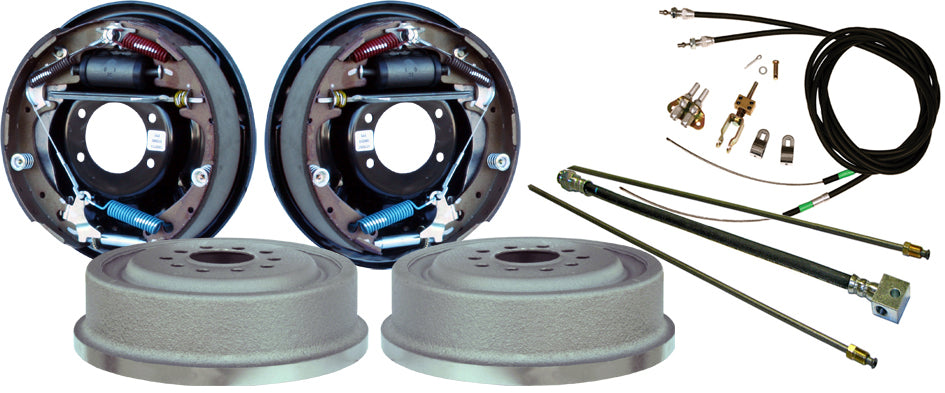

    • CURRIE 11" HYDRAULIC DRUM BRAKE KIT (CURRIE PART #CE-6005AD):
      • CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
      • BRAKE KIT INCLUDES:
        • 11" HYDRAULIC DRUMS
          • 5 X 4 3/4" BOLT PATTERN
          • 2 1/4" X 11"
          • 2.80" CENTER REGISTER HOLE
          • INCLUDES CABLE OPERATED PARKING BRAKE MECHANISMS
    • PARKING BRAKE CABLE KIT:
      • CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION
    • HARD LINE KIT:
      • STEEL HARD BRAKE LINE TUBING TO CONNECT THE CURRIE DRUMS TO THE INCLUDED RUBBER HOSE
      • RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINE ON THE FRAME
      • NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
