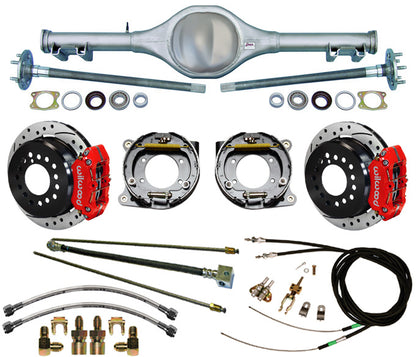

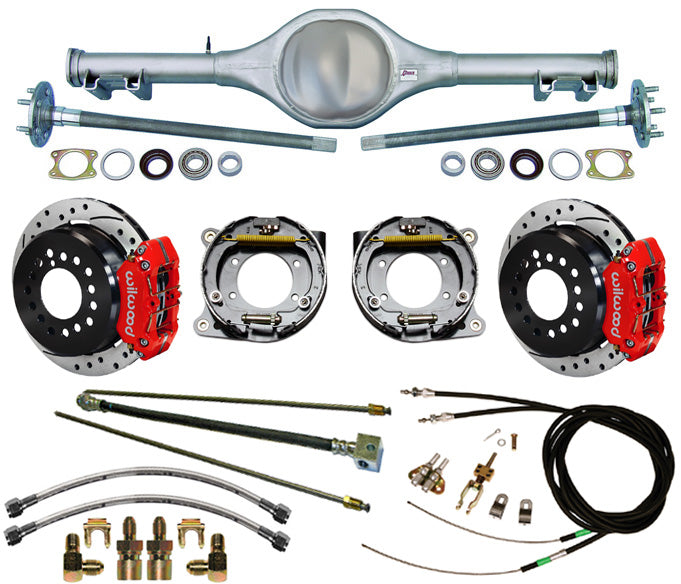

62-67 X-BODY MON REAR & WIL BRAKES,DR,RD

BRAND NEW CURRIE ENTERPRISES REAR END WITH 31 SPLINE AXLES WITH WILWOOD DISC BRAKE KIT INCLUDING DRILLED ROTORS & RED CALIPERS, PARKING BRAKE CABLE KIT, AND BRAKE LINE KIT

NOTE: CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

FITS:

• CHEVROLET: 1962-1967 CHEVY II & NOVA WITH MONO-LEAF SPRINGS

INCLUDES:

• CURRIE 9-PLUS NOTCH-BACK REAR END WITH 31 SPLINE AXLES (CURRIE #CE-GMN6267SX):
• 9-PLUS NOTCHBACK HEAVY DUTY HOUSING
• 31 SPLINE PERFORMANCE AXLE PACKAGE
• BUILT TO THE STOCK OVERALL WIDTH (57 7/8") AND PINION OFFSET SPECS
• 57 7/8" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
• HEAVY DUTY REPRODUCTIONS OF THE STOCK GM MONO LEAF SPRING PADS ARE INSTALLED IN THE STOCK LOCATION FOR AN EASY BOLT IN INSTALLATION
• HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
• THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK)
• AXLES INCLUDE:
• STOCK 5 X 4 3/4" WHEEL BOLT PATTERN
• WHEEL STUDS INSTALLED
• 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
• TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
• THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO"

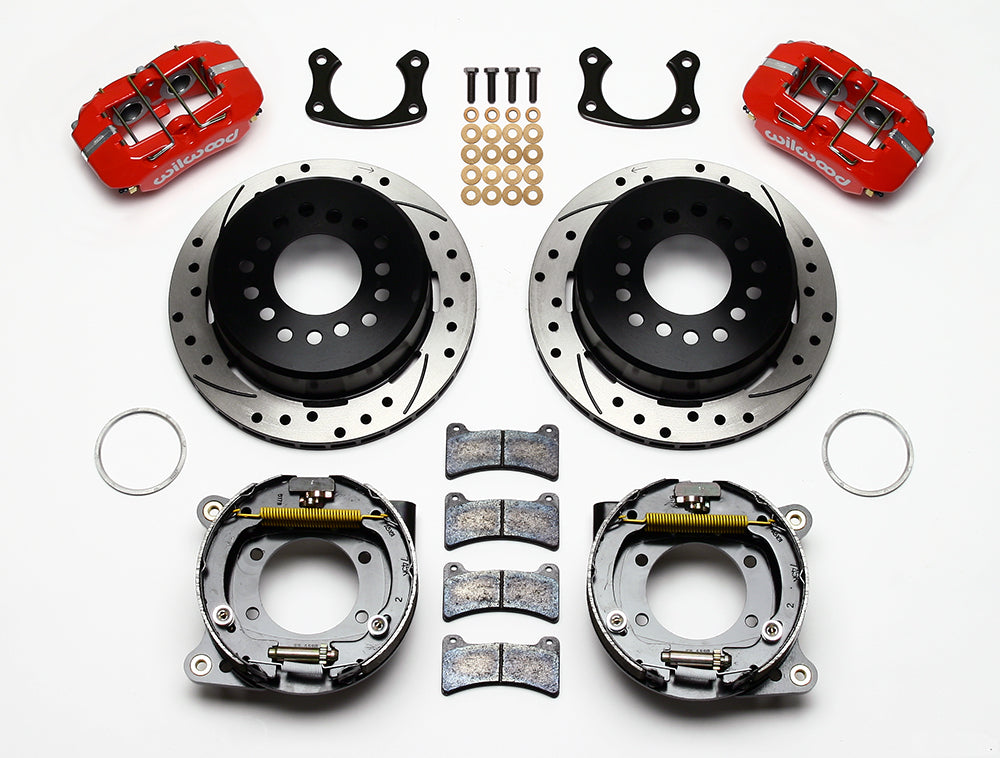

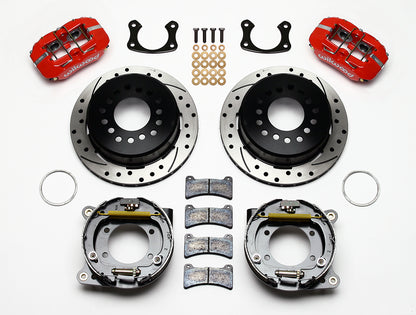

• WILWOOD 11" DISC BRAKE KIT WITH DRILLED ROTORS AND RED CALIPERS (WILWOOD PART #140-11389-DR):
• WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
• DYNAPRO LOW-PROFILE PRO-SERIES REAR DISC BRAKE KITS PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLE. FORGED BILLET DYNAPRO LOW-PROFILE FOUR-PISTON CALIPERS, 11" ONE-PIECE HAT AND ROTOR ASSEMBLIES, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF CUSTOM PERFORMANCE STREET/STRIP AND SHOW MACHINES. THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING
• THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS
• BRAKE KIT INCLUDES:
• DRILLED & SLOTTED .810" THICK X 11.00" O.D. ROTORS WITH HATS
• FEATURING 5 X 4 1/2", 5 X 4 3/4", AND 5 X 5" BOLT PATTERNS
• LOW-PROFILE 4 PISTON DYNAPRO CALIPERS - RED
• DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS
• BEARING RETAINERS
• BP-10 SMART COMPOUND BRAKE PADS
• ALL BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS
• YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS BRAKE KIT HERE.
• PARKING BRAKE CABLE KIT:
• CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION
• FLEXLINE KIT:
• STEEL BRAIDED BRAKE LINES, BANJO FITTINGS & BOLTS, AND CHASSIS FITTINGS TO CONNECT THE CALIPERS TO THE HARD LINES
• ALSO INCLUDES WELD-ON LINE TABS TO INSTALL ON YOUR REAR END
• HARD LINE KIT:
• STEEL HARD BRAKE LINE TUBING TO CONNECT THE CURRIE DRUMS TO THE INCLUDED RUBBER HOSE
• RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINE ON THE FRAME
• NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
