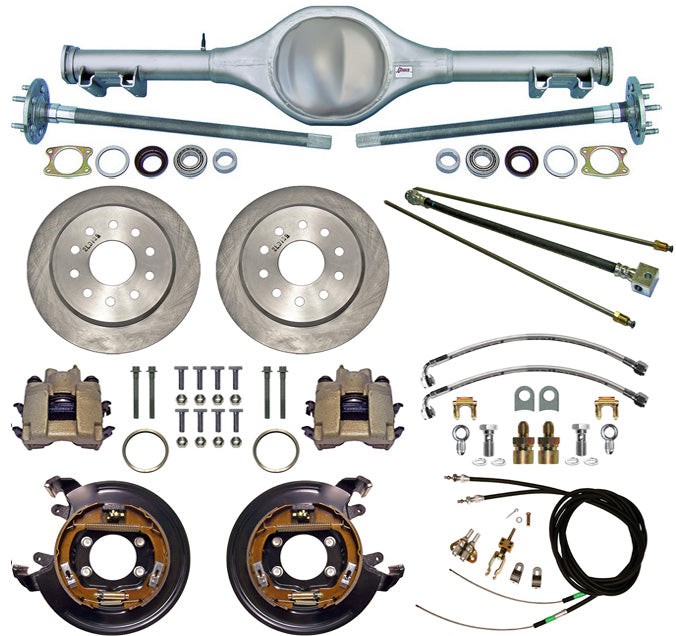

62-67 X-BODY MON REAR END/BRAKES,11"DISC

BRAND NEW CURRIE ENTERPRISES REAR END WITH 31 SPLINE AXLES WITH CURRIE DISC BRAKE KIT, PARKING BRAKE CABLE KIT, AND BRAKE LINE KIT

NOTE: CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

FITS:

• CHEVROLET: 1962-1967 CHEVY II & NOVA WITH MONO-LEAF SPRINGS

INCLUDES:

• CURRIE 9-PLUS NOTCH-BACK REAR END WITH 31 SPLINE AXLES (CURRIE #CE-GMN6267SX):
• 9-PLUS NOTCHBACK HEAVY DUTY HOUSING
• 31 SPLINE PERFORMANCE AXLE PACKAGE
• BUILT TO THE STOCK OVERALL WIDTH (57 7/8") AND PINION OFFSET SPECS
• 57 7/8" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
• HEAVY DUTY REPRODUCTIONS OF THE STOCK GM MONO LEAF SPRING PADS ARE INSTALLED IN THE STOCK LOCATION FOR AN EASY BOLT IN INSTALLATION
• HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
• THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK)
• AXLES INCLUDE:
• STOCK 5 X 4 3/4" WHEEL BOLT PATTERN
• WHEEL STUDS INSTALLED
• 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
• TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
• THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO"
• CURRIE 11" DISC BRAKE KIT (CURRIE PART #CE-6012E6):
• CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
• THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS
• BRAKE KIT INCLUDES:
• 0.50" THICK X 11.00" O.D. SOLID ROTORS WITH HATS
• FEATURING BOTH 5 X 4 1/2" AND 5 X 4 3/4" BOLT PATTERNS
• SINGLE PISTON BRAKE CALIPERS WITH PADS
• BACKING PLATE / CALIPER MOUNTING BRACKET PLATES WITH DRUM-STYLE PARKING BRAKE ASSEMBLIES INSTALLED
• NECESSARY BOLTS, NUTS, AND REGISTERS TO INSTALL THE BRAKING SYSTEM ON BOTH REAR WHEELS
• PARKING BRAKE CABLE KIT:
• CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION
• FLEXLINE KIT:
• STEEL BRAIDED BRAKE LINES, BANJO FITTINGS & BOLTS, AND CHASSIS FITTINGS TO CONNECT THE CALIPERS TO THE HARD LINES
• ALSO INCLUDES WELD-ON LINE TABS TO INSTALL ON YOUR REAR END
• HARD LINE KIT:
• STEEL HARD BRAKE LINE TUBING TO CONNECT THE CURRIE DRUMS TO THE INCLUDED RUBBER HOSE
• RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINE ON THE FRAME
• NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
