62-67 X-BODY MON REAR END/BRAKES,10"DRUM

62-67 X-BODY MON REAR END/BRAKES,10"DRUM

CUR GMN6267S-K0

$2,399.99
$2,399.99
This item requires an additional shipping fee of $60 over standard shipping.
View full details

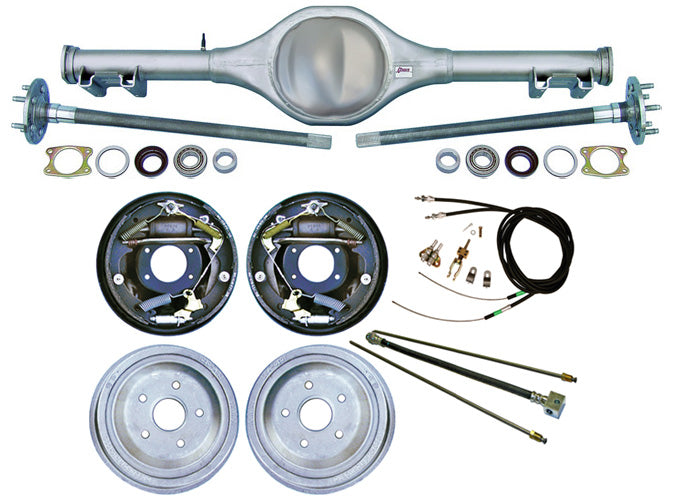

BRAND NEW CURRIE ENTERPRISES REAR END WITH 31 SPLINE AXLES WITH CURRIE 10" DRUM BRAKE KIT, PARKING BRAKE CABLE KIT, AND BRAKE LINE KIT

NOTE: CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

FITS:

  • CHEVROLET: 1962-1967 CHEVY II WITH MONO-LEAF SPRINGS

INCLUDES:

  • CURRIE 9-PLUS NOTCH-BACK REAR END WITH 31 SPLINE AXLES (CURRIE #CE-GMN6267SX):
    • 9-PLUS NOTCHBACK HEAVY DUTY HOUSING
    • 31 SPLINE PERFORMANCE AXLE PACKAGE
    • BUILT TO THE STOCK OVERALL WIDTH (57 7/8") AND PINION OFFSET SPECS
      • 57 7/8" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
    • HEAVY DUTY REPRODUCTIONS OF THE STOCK GM MONO LEAF SPRING PADS ARE INSTALLED IN THE STOCK LOCATION FOR AN EASY BOLT IN INSTALLATION
    • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
    • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK)
    • AXLES INCLUDE:
      • STOCK 5 X 4 3/4" WHEEL BOLT PATTERN
      • WHEEL STUDS INSTALLED
      • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
      • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
    • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO"
  • CURRIE 10" HYDRAULIC DRUM BRAKE KIT (CURRIE PART #CE-6005B475):
    • CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
    • BRAKE KIT INCLUDES:
      • 10" HYDRAULIC DRUMS
        • 5 X 4 3/4" BOLT PATTERN
        • 2 1/2" X 10"
        • 2.80" CENTER REGISTER HOLE
        • INCLUDES CABLE OPERATED PARKING BRAKE MECHANISMS
  • PARKING BRAKE CABLE KIT:
    • CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION
  • HARD LINE KIT:
    • STEEL HARD BRAKE LINE TUBING TO CONNECT THE CURRIE DRUMS TO THE INCLUDED RUBBER HOSE
    • RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINE ON THE FRAME
    • NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
Currie GM Rear Ends > GM X-Body, 1962-1967
