67-69 F-BODY MUL STAGGER,REAR,DISC,DRILLED

67-69 F-BODY MUL STAGGER,REAR,DISC,DRILLED

CUR GMF6769M-S3

$2,599.99
$2,599.99
This item requires an additional shipping fee of $60 over standard shipping.
View full details

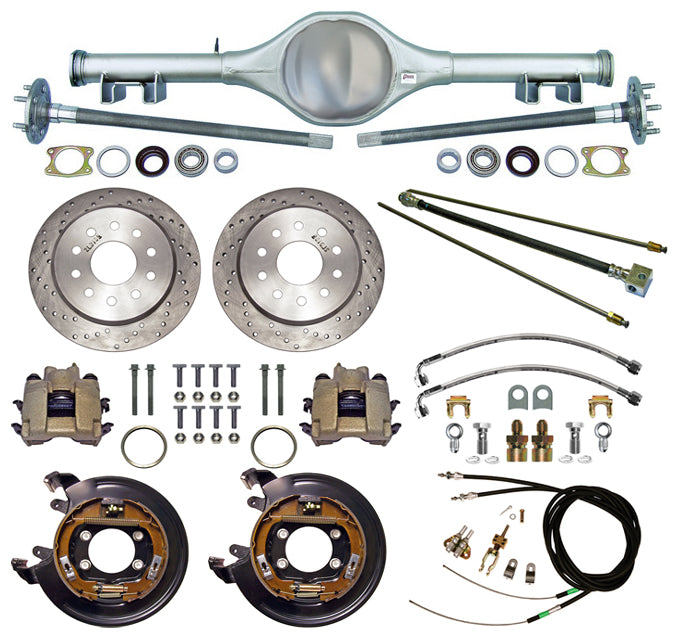

  • CURRIE ENTERPRISES REAR END WITH 31 SPLINE AXLES WITH CURRIE DRILLED DISC BRAKE KIT, PARKING BRAKE CABLE KIT, AND BRAKE LINE KIT FOR THE APPLICATIONS BELOW (PART #GMF6769M-S3). CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

    • FITS:

    • CHEVROLET:
      • 1967-1969 CAMARO WITH MULTI-LEAF SPRINGS AND WITH STAGGERED SHOCKS***
    • PONTIAC:
      • 1967-1969 FIREBIRD WITH MULTI-LEAF SPRINGS AND WITH STAGGERED SHOCKS***
    • "STAGGERED SHOCK" APPLICATIONS HAVE THE LEFT SIDE SHOCK IN BACK OF THE REAR END HOUSING AND THE RIGHT SIDE SHOCK IN FRONT. IN THESE APPLICATIONS, ITS NECESSARY TO HAVE THIS MODIFIED LEFT SIDE BRAKE KIT, WHICH MOUNTS THE CALIPER IN FRONT OF THE HOUSING TO AVOID ANY CLEARANCE ISSUES WITH THE SHOCK.
    • ***WE ALSO HAVE THIS SAME REAR END SET FOR APPLICATIONS:
        WITH MULTI-LEAFS AND WITHOUT STAGGERED SHOCKS WITH MONO-LEAFS AND WITH STAGGERED SHOCKS WITH MONO-LEAFS AND WITHOUT STAGGERED SHOCKS

    INCLUDES:

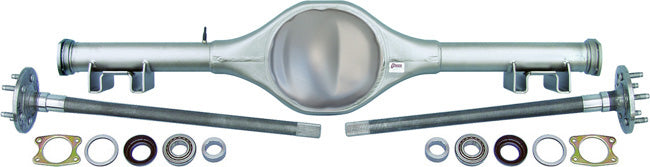

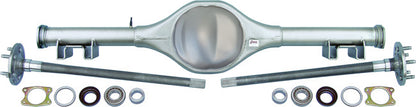

    • CURRIE 9-PLUS NOTCH-BACK REAR END WITH 31 SPLINE AXLES (CURRIE #CE-GMF6769MX)
      • 9-PLUS NOTCHBACK HEAVY DUTY HOUSING
      • 31 SPLINE PERFORMANCE AXLE PACKAGE
      • BUILT TO THE STOCK OVERALL WIDTH (60 1/4") AND PINION OFFSET SPECS
        • 60 1/4" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
      • HEAVY DUTY REPRODUCTIONS OF THE STOCK GM MULTI LEAF SPRING PADS ARE INSTALLED IN THE STOCK LOCATION FOR AN EASY BOLT IN INSTALLATION
      • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
      • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DONT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS
      • AXLES INCLUDE:
        • STOCK 5 X 4 3/4" WHEEL BOLT PATTERN
        • WHEEL STUDS INSTALLED
        • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
        • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
      • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO", WHICH FIT THE CURRIE BRAKES PERFECTLY

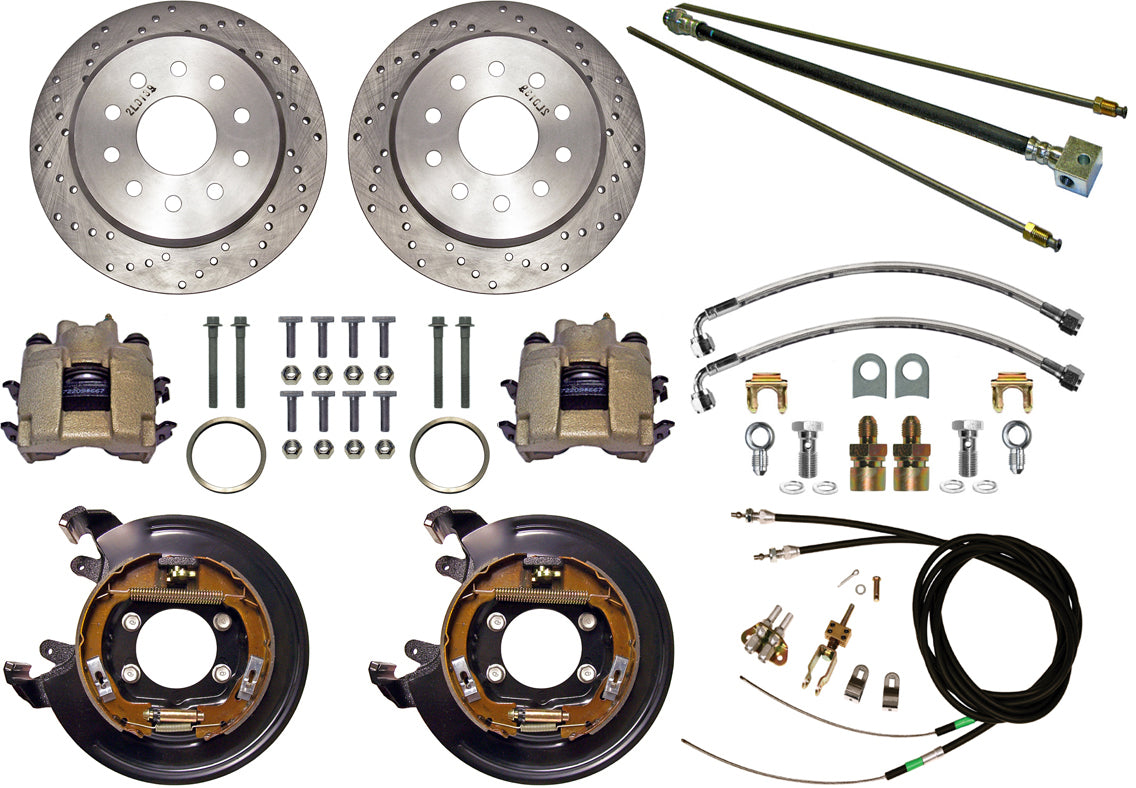

    • CURRIE 11" DRILLED DISC BRAKE KIT FOR STAGGERED SHOCKS (CURRIE PART #CE-6012DGMF):
      • CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
      • THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS
      • BRAKE KIT INCLUDES:
        • CROSS-DRILLED, 0.50" THICK X 11.00" O.D. ROTORS WITH HATS
          • FEATURING BOTH 5 X 4 1/2" AND 5 X 4 3/4" BOLT PATTERNS
        • SINGLE PISTON BRAKE CALIPERS WITH PADS
        • BACKING PLATE / CALIPER MOUNTING BRACKET PLATES WITH DRUM-STYLE PARKING BRAKE ASSEMBLIES INSTALLED
        • NECESSARY BOLTS, NUTS, AND REGISTERS TO INSTALL THE BRAKING SYSTEM ON BOTH REAR WHEELS
    • PARKING BRAKE CABLE KIT:
      • CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION
    • FLEXLINE KIT:
      • STEEL BRAIDED BRAKE LINES, BANJO FITTINGS & BOLTS, AND CHASSIS FITTINGS TO CONNECT THE CALIPERS TO THE HARD LINES
      • ALSO INCLUDES WELD-ON LINE TABS TO INSTALL ON YOUR REAR END
    • HARD LINE KIT:
      • STEEL HARD BRAKE LINE TUBING TO CONNECT THE CHASSIS FITTINGS TO THE INCLUDED RUBBER HOSE
      • RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINE ON THE FRAME
      • NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
