88-98 C1500 5-LUG REAR END & WILWOOD BRAKES,11" ROTORS,RED CALIPERS,LINES,CABLES

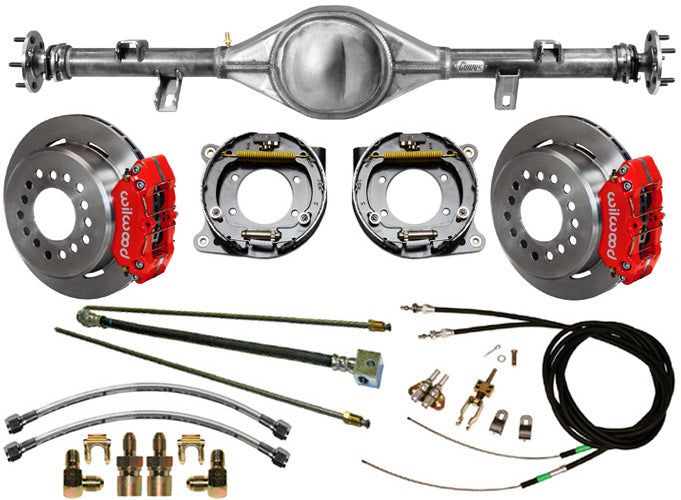

Brand New Currie Enterprises Rear End with 31 Spline Axles with Wilwood Disc Brake Kit including Rotors & Red Calipers, Parking Brake Cable Kit, and Brake Line Kit for the applications below (Part #GMC8898X5-K5).  Currie Crate Rear Ends are designed to be a bolt-in upgrade.

Fits:

• Chevrolet Trucks:
  • Will Fit All 1988-1998 C1500 2wd Trucks with 5-Lug wheels
• GMC Trucks:
  • Will Fit All 1988-1998 C1500 2wd Trucks with 5-Lug wheels


Includes:

• Currie 9-Plus Centurian Notch-Back Rear End with 31 Spline Axles (Currie #CE-GMC8898X5)
  • 31 Spline performance axle package
  • Built to the stock overall width (65") and pinion offset specs
    • 65" is measured outside-of-axle-flange to outside-of-axle-flange, in other words, where the wheel bolts on to where the wheel bolts on
  • Includes heavy-duty leaf spring pads and shock mounts weld-on in the stock location
  • Housing includes all 3rd member studs installed
  • These are 9" Ford center sections, so they do require a 9" Ford 3rd Member (sometimes referred to as a Chunk);  if you don't currently have one, we do offer them in several ratios.
  • Axles include:
    • Stock 5 x 5" wheel bolt pattern
    • 14mm Wheel studs installed
    • 1/4" Thick heavy-duty bearing retainer plates
    • Tapered Timken style wheel bearings pressed on
  • The Axle flanges on this rear end are the Big Bearing Ford (New Style), also known as "Torino", which fit the Wilwood brakes perfectly

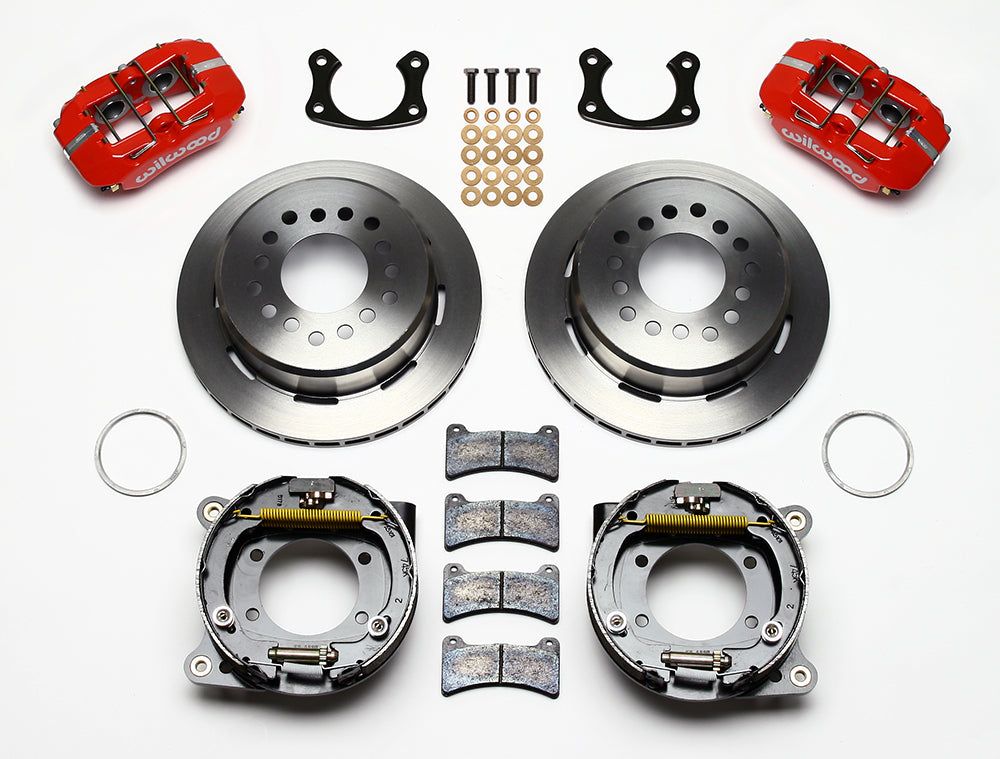

• Wilwood 11" Disc Brake Kit with Standard Rotors and Red Calipers (Wilwood Part #140-11389-R):
  • Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.
  • Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axle.  Forged billet Dynapro Low-Profile four-piston calipers, 11" one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking
  • These Low-Profile Brake kits require at least 15" diameter wheels
  • Brake Kit includes:
    • .810" Thick x 11.00" O.D. Rotors with Hats
    • Low-Profile 4 Piston Dynapro Calipers - Red
    • Drum Parking Brake Assemblies with Caliper Mounting Brackets
    • Bearing Retainers
    • BP-10 Smart Compound Brake Pads
    • All Bolts, Washers, and Shims necessary to install the complete braking system on both rear wheels
  • You can view and download the complete assembly instruction booklet for this brake kit here
  • We also offer the Wilwood kits with different options, including Black and Red calipers, with both standard and drilled/slotted rotors.  You can see all of the options below.  Just let us know if you would like to upgrade to one of these other kits:
    • You can see all of the kits here.
• Parking Brake Cable Kit:
  • Connects to the Wilwood Parking Brake Assemblies, then comes together to join the stock cable behind the transmission
• Flexline Kit:
  • Steel braided brake lines, caliper fittings, and chassis fittings to connect the calipers to the hard lines
  • Also includes weld-on line tabs to install on your rear end
• Hard Line Kit:
  • Steel hard brake line tubing to connect the chassis fittings to the included rubber hose
  • Rubber hose connects those hard lines to the line on the frame
  • Note: Tubing bending is generally necessary for the installation of these lines
