70-87 C10 5-LUG REAR END & BRAKES,11" DRUMS,LINES,CABLES

70-87 C10 5-LUG REAR END & BRAKES,11" DRUMS,LINES,CABLES

CUR GMC70875-K1

$2,499.99
$2,499.99
This item requires an additional shipping fee of $60 over standard shipping.
View full details

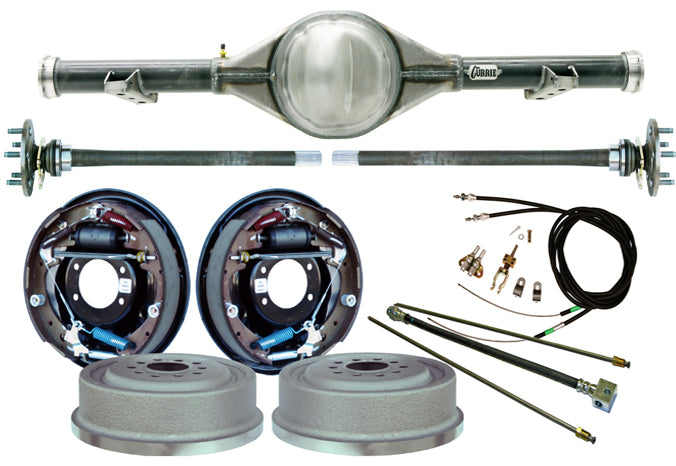

  • BRAND NEW CURRIE ENTERPRISES REAR END WITH 31 SPLINE AXLES WITH CURRIE 11" DRUM
    • BRAKE KIT, PARKING BRAKE CABLE KIT, AND BRAKE LINE KIT FOR THE APPLICATIONS BELOW (PART #GMC7087X5-K1). CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

    FITS:

    • CHEVROLET TRUCKS:
      • WILL FIT ALL LATE-1970 TO 1987 C-10 2WD TRUCKS WITH 5-LUG WHEELS
    • GMC TRUCKS:
      • WILL FIT ALL LATE-1970 TO 1987 C15/C1500 2WD TRUCKS WITH 5-LUG WHEELS

    INCLUDES:

    • CURRIE 9-PLUS CENTURIAN NOTCH-BACK REAR END WITH 31 SPLINE AXLES (CURRIE #CE-GMC7087X5)
      • 31 SPLINE PERFORMANCE AXLE PACKAGE
      • BUILT TO THE STOCK OVERALL WIDTH (63 5/8") AND PINION OFFSET SPECS
        • 63 5/8" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
      • INCLUDES EITHER HEAVY-DUTY GM TRUCK TRAILING ARM PADS OR HEAVY-DUTY LEAF SPRING PADS WELD-ON IN THE STOCK LOCATION (WE WILL CONTACT YOU AFTER PURCHASE TO DETERMINE WHICH ONE YOU TRUCK NEEDS)
      • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
      • GMT7087X5 GMC7072X5 GMC7387X5
      • AXLES INCLUDE:
        • STOCK 5 X 5" WHEEL BOLT PATTERN
        • 1/2" WHEEL STUDS INSTALLED
        • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
        • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
      • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO", WHICH FIT THE CURRIE DRUMS PERFECTLY
    • CURRIE 11" HYDRAULIC DRUM BRAKE KIT (CURRIE PART #CE-6005ACT):
      • CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
      • BRAKE KIT INCLUDES:
        • 11" HYDRAULIC DRUMS
          • BOTH 5 X 4 1/2" AND 5 X 5" BOLT PATTERNS
          • 2 1/4" X 11"
          • 2.80" CENTER REGISTER HOLE
          • INCLUDES CABLE OPERATED PARKING BRAKE MECHANISMS
    • PARKING BRAKE CABLE KIT:
      • CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION
    • HARD LINE KIT:
      • STEEL HARD BRAKE LINE TUBING TO CONNECT THE CURRIE DRUMS TO THE INCLUDED RUBBER HOSE
      • RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINE ON THE FRAME
      • NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
