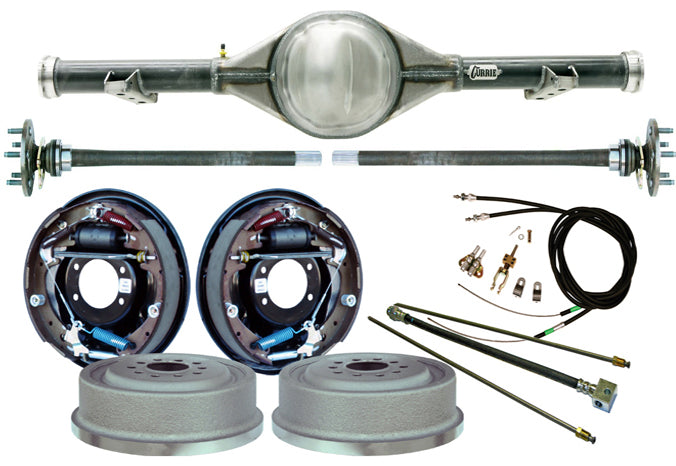

60-62 C10 5LUG REAR END & BRAKES,11"DRUM

BRAND NEW CURRIE ENTERPRISES REAR END WITH 31 SPLINE AXLES WITH CURRIE 11" DRUM BRAKE KIT, PARKING BRAKE CABLE KIT, AND BRAKE LINE KIT FOR THE APPLICATIONS BELOW (PART #GMC6062X5-K1). CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

FITS:

• CHEVROLET C-10 TRUCKS:
  • WILL FIT ALL 1960 TO 1962 C-10 2WD TRUCKS WITH 5-LUG WHEELS
• CHEVROLET C-10 PANELS:
  • **1960 TO 1962 C-10 PANEL**
    • **THIS REAR END WILL FIT THESE C-10 PANELS IF THEY HAVE TRAILING ARMS; IT DOESNT HAVE THE PADS TO ACCEPT LEAF SPRINGS**
• GMC TRUCKS:
  • **1960 TO 1962 C15/C1500 2WD TRUCKS WITH 5-LUG WHEELS**
    • **THIS REAR END WILL FIT THESE GMC TRUCKS IF THEY HAVE TRAILING ARMS; IT DOESNT HAVE THE PADS TO ACCEPT LEAF SPRINGS**
• ***WE HAVE THIS SAME REAR END WITH 6-LUG AXLES***

INCLUDES:

• CURRIE 9-PLUS CENTURIAN NOTCH-BACK REAR END WITH 31 SPLINE AXLES (CURRIE #CE-GMC6062X5)
  • 31 SPLINE PERFORMANCE AXLE PACKAGE
  • BUILT TO THE STOCK OVERALL WIDTH (62 1/8") AND PINION OFFSET SPECS
    • 62 1/8" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
  • ALL NEW HEAVY-DUTY GM TRUCK TRAILING ARM PADS ARE INSTALLED IN THE STOCK LOCATION (43 1/2" CENTER-TO-CENTER AT 12 DEGREES) FOR AN EASY BOLT IN INSTALLATION
  • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
  • GMT6062X5
  • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DONT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS.
  • AXLES INCLUDE:
    • STOCK 5 X 5" WHEEL BOLT PATTERN
    • 1/2" WHEEL STUDS INSTALLED
    • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
    • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
  • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO", WHICH FIT THE CURRIE DRUMS PERFECTLY
• CURRIE 11" HYDRAULIC DRUM BRAKE KIT (CURRIE PART #CE-6005ACT):
  • CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
  • BRAKE KIT INCLUDES:
    • 11" HYDRAULIC DRUMS
      • BOTH 5 X 4 1/2" AND 5 X 5" BOLT PATTERNS
      • 2 1/4" X 11"
      • 2.80" CENTER REGISTER HOLE
      • INCLUDES CABLE OPERATED PARKING BRAKE MECHANISMS
• PARKING BRAKE CABLE KIT:
  • CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION
• HARD LINE KIT:
  • STEEL HARD BRAKE LINE TUBING TO CONNECT THE CURRIE DRUMS TO THE INCLUDED RUBBER HOSE
  • RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINE ON THE FRAME
  • NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
