64-65 MUSTANG REPLICA REAR & BRAKES,BK,D

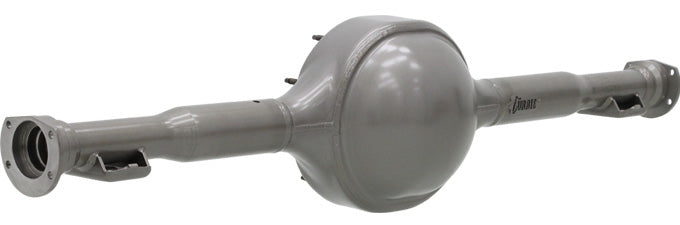

• FOR THE MUSTANG AFFICIANADO THAT WANTS THE BEST, CURRIES 64-65 MUSTANG REPLICA HOUSINGS ARE FOR YOU. THIS HOUSING IS 100% NEW AND FEATURES THE ROUND-BACK HOUSING CENTER. THE AXLE TUBES ARE SWEDGED FROM 3" DOWN TO 2 1/4" TO REPLICATE THE ORIGINAL. FEATURES BILLET SMALL BEARING FORD HOUSING ENDS, AND EXACT DUPLICATE LEAF SPRING PADS MOUNTED IN THE FACTORY LOCATION. THE ONLY THING CURRIE DIDNT DUPLICATE IS FORDS UGLY FACTORY WELDS.

FITS:

• 1964-1965 FORD MUSTANG
• 1964-1965 FORD RANCHERO
• 1964-1965 MERCURY COMET

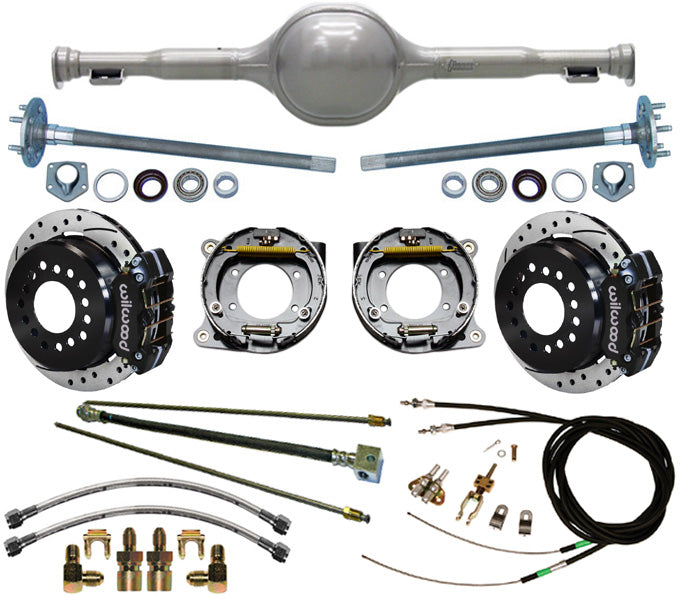

INCLUDES:

• CURRIE REPLICA ROUND-BACK REAR END WITH 31 SPLINE AXLES (CURRIE #CE-FDR6465X)
  • 31 SPLINE PERFORMANCE AXLE PACKAGE
  • BUILT TO THE STOCK OVERALL WIDTH (57 3/8") AND PINION OFFSET SPECS
    • 57 3/8" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
  • LEAF SPRING PADS ARE INSTALLED IN THE STOCK LOCATION FOR AN EASY BOLT-IN INSTALLATION
  • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
  • AXLES INCLUDE:
    • STOCK 5 X 4 1/2" WHEEL BOLT PATTERN
    • WHEEL STUDS INSTALLED
    • BEARING RETAINER PLATES
    • WHEEL BEARINGS PRESSED ON
  • THE AXLE FLANGES ON THIS REAR END ARE THE ORIGINAL SMALL BEARING FORD, WHICH FIT THE WILWOOD BRAKES PERFECTLY

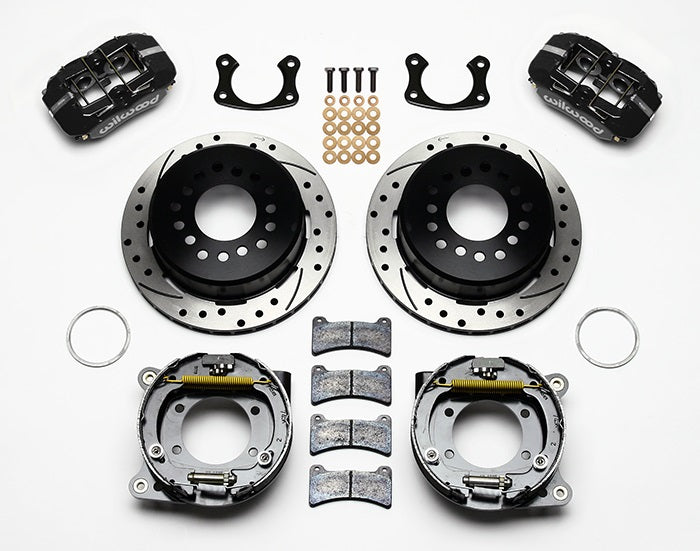

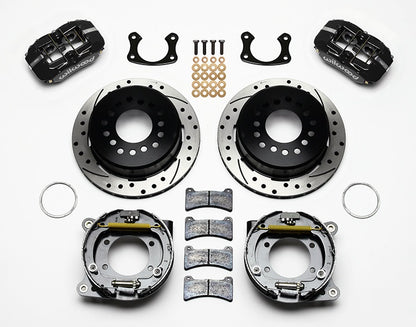

• WILWOOD 11" DISC BRAKE KIT WITH DRILLED ROTORS AND BLACK CALIPERS (WILWOOD PART #140-11403-D):
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
  • DYNAPRO LOW-PROFILE PRO-SERIES REAR DISC BRAKE KITS PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLE. FORGED BILLET DYNAPRO LOW-PROFILE FOUR-PISTON CALIPERS, 11" ONE-PIECE HAT AND ROTOR ASSEMBLIES, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF CUSTOM PERFORMANCE STREET/STRIP AND SHOW MACHINES. THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING
  • THESE LOW-PROFILE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS
  • BRAKE KIT INCLUDES:
    • DRILLED & SLOTTED, .810" THICK X 11.00" O.D. ROTORS WITH HATS
      • FEATURING 5 X 4 1/2", 5 X 4 3/4", AND 5 X 5" BOLT PATTERNS
    • LOW-PROFILE 4 PISTON DYNAPRO CALIPERS - BLACK
    • DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS
    • BEARING RETAINERS
    • BP-10 SMART COMPOUND BRAKE PADS
    • ALL BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS
  • YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS BRAKE KIT HERE
• PARKING BRAKE CABLE KIT:
  • CONNECTS TO THE WILWOOD PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION
• FLEXLINE KIT:
  • STEEL BRAIDED BRAKE LINES, CALIPER FITTINGS, AND CHASSIS FITTINGS TO CONNECT THE CALIPERS TO THE HARD LINES
  • ALSO INCLUDES WELD-ON LINE TABS TO INSTALL ON YOUR REAR END
• HARD LINE KIT:
  • STEEL HARD BRAKE LINE TUBING TO CONNECT THE CHASSIS FITTINGS TO THE INCLUDED RUBBER HOSE
  • RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINE ON THE FRAME
  • NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
