79-93 MUSTANG 5L REAR & WIL BRAKES,DRILLED

FITS:

• 1979-1993 FORD MUSTANG
  • 5-LUG APPLICATIONS ONLY
• 1979-1993 FORD THUNDERBIRD
  • 5-LUG APPLICATIONS ONLY; MAKE SURE TO VERIFY THAT YOUR STOCK REAR END MATCHES THE 59 1/2" WIDTH
• 1979-1983 FORD FAIRMONT
  • 5-LUG APPLICATIONS ONLY; MAKE SURE TO VERIFY THAT YOUR STOCK REAR END MATCHES THE 59 1/2" WIDTH
• 1979-1986 MERCURY CAPRI
  • 5-LUG APPLICATIONS ONLY
• 1979-1993 MERCURY COUGAR
  • 5-LUG APPLICATIONS ONLY
• 1979-1983 MERCURY ZEPHYR
  • 5-LUG APPLICATIONS ONLY; MAKE SURE TO VERIFY THAT YOUR STOCK REAR END MATCHES THE 59 1/2" WIDTH
• WE DO HAVE REAR END KITS AVAILABLE FOR 4-LUG APPLICATIONS AS WELL

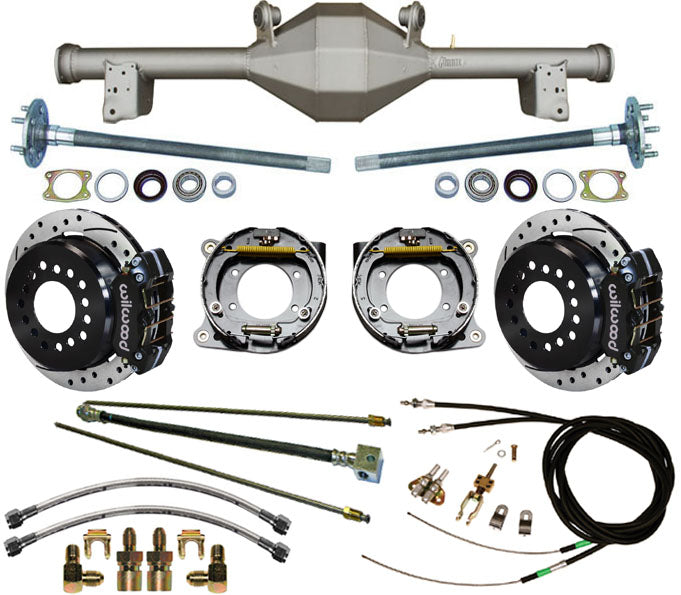

INCLUDES:

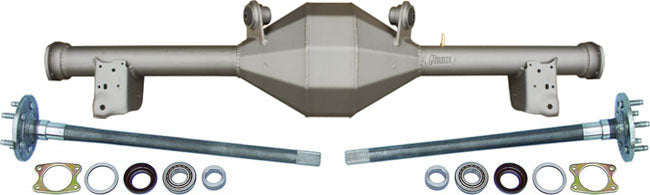

• CURRIE F9 FABRICATED REAR END WITH 31 SPLINE AXLES (CURRIE #CE-FDM7993X5)
  • F9 FABRICATED HEAVY DUTY HOUSING
  • 31 SPLINE PERFORMANCE AXLE PACKAGE
  • BUILT TO THE STOCK OVERALL WIDTH (59 1/2") AND PINION OFFSET SPECS
    • 59 1/2" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
  • STOCK SUSPENSION BRACKETS ARE INSTALLED IN THE STOCK LOCATION FOR AN EASY BOLT-IN INSTALLATION, AND URETHANE UPPER CONTROL ARM BUSHINGS ARE INSTALLED IN THE UPPER CONTROL ARM HOUSING BRACKETS
  • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
  • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DONT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS
  • AXLES INCLUDE:
    • STOCK 5 X 4 1/2" WHEEL BOLT PATTERN
    • WHEEL STUDS INSTALLED
    • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
    • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
  • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO", WHICH FIT THE WILWOOD BRAKES PERFECTLY

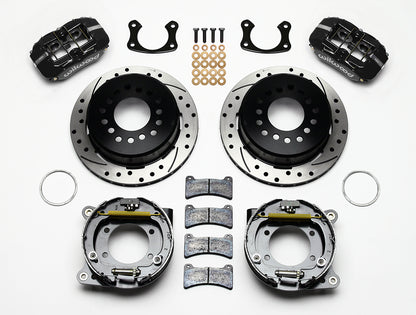

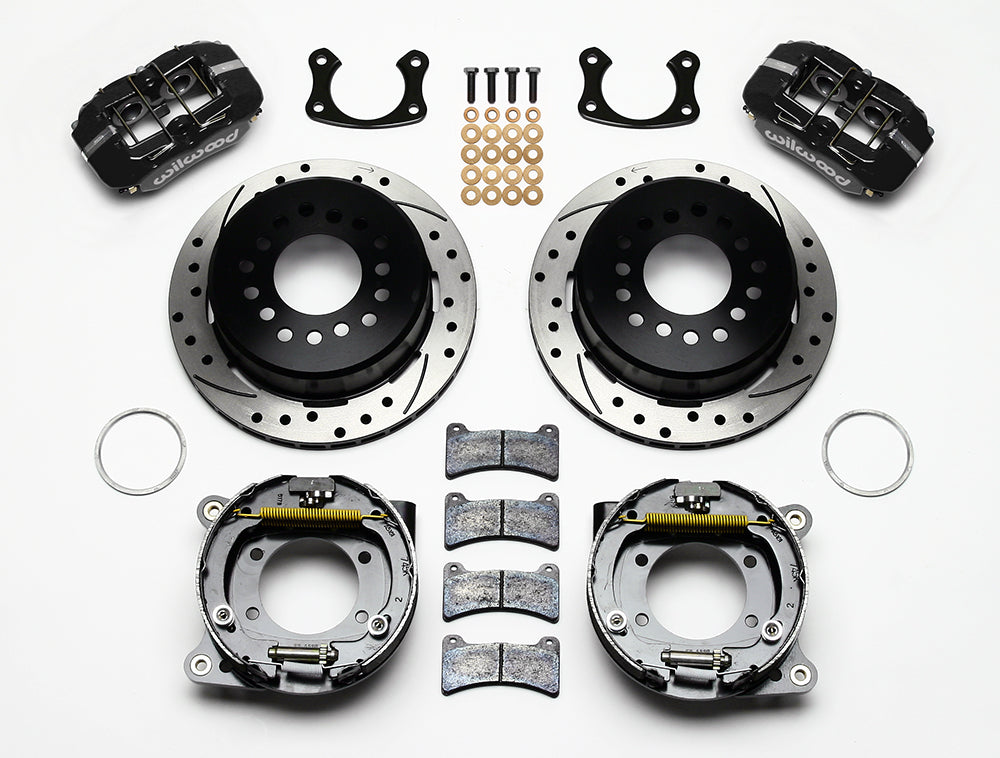

• WILWOOD 11" DISC BRAKE KIT WITH DRILLED ROTORS AND BLACK CALIPERS (WILWOOD PART #140-11389-D):
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
  • DYNAPRO LOW-PROFILE PRO-SERIES REAR DISC BRAKE KITS PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLE. FORGED BILLET DYNAPRO LOW-PROFILE FOUR-PISTON CALIPERS, 11" ONE-PIECE HAT AND ROTOR ASSEMBLIES, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF CUSTOM PERFORMANCE STREET/STRIP AND SHOW MACHINES. THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING
  • THESE LOW-PROFILE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS

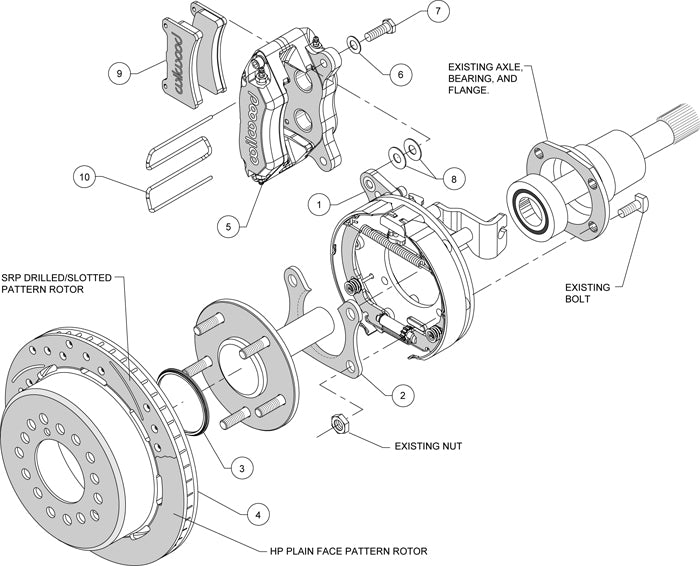

  • BRAKE KIT INCLUDES:
    • DRILLED & SLOTTED, .810" THICK X 11.00" O.D. ROTORS WITH HATS
      • FEATURING 5 X 4 1/2", 5 X 4 3/4", AND 5 X 5" BOLT PATTERNS
    • LOW-PROFILE 4 PISTON DYNAPRO CALIPERS - BLACK
    • DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS
    • BEARING RETAINERS
    • BP-10 SMART COMPOUND BRAKE PADS
    • ALL BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS
  • YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS BRAKE KIT HERE
• PARKING BRAKE CABLE KIT:
  • CONNECTS TO THE WILWOOD PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION
• FLEXLINE KIT:
  • STEEL BRAIDED BRAKE LINES, CALIPER FITTINGS, AND CHASSIS FITTINGS TO CONNECT THE CALIPERS TO THE HARD LINES
  • ALSO INCLUDES WELD-ON LINE TABS TO INSTALL ON YOUR REAR END
• HARD LINE KIT:
  • STEEL HARD BRAKE LINE TUBING TO CONNECT THE CHASSIS FITTINGS TO THE INCLUDED RUBBER HOSE
  • RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINE ON THE FRAME
  • NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
