79-93 MUSTANG 5L REAR END/BRAKES,DISC,DR

FITS:

• 1979-1993 FORD MUSTANG
  • 5-LUG APPLICATIONS ONLY
• 1979-1993 FORD THUNDERBIRD
  • 5-LUG APPLICATIONS ONLY; MAKE SURE TO VERIFY THAT YOUR STOCK REAR END MATCHES THE 59 1/2" WIDTH
• 1979-1983 FORD FAIRMONT
  • 5-LUG APPLICATIONS ONLY; MAKE SURE TO VERIFY THAT YOUR STOCK REAR END MATCHES THE 59 1/2" WIDTH
• 1979-1986 MERCURY CAPRI
  • 5-LUG APPLICATIONS ONLY
• 1979-1993 MERCURY COUGAR
  • 5-LUG APPLICATIONS ONLY
• 1979-1983 MERCURY ZEPHYR AS WELL

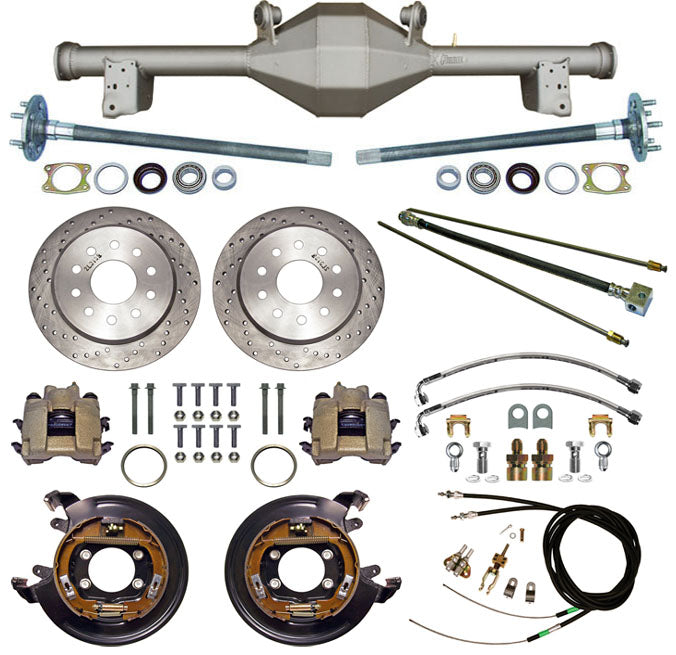

INCLUDES:

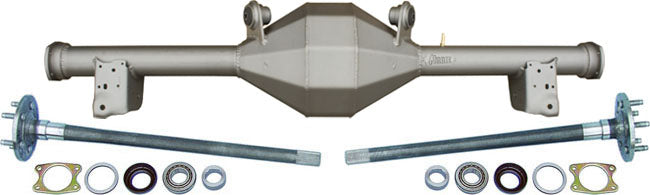

• CURRIE F9 FABRICATED REAR END WITH 31 SPLINE AXLES (CURRIE #CE-FDM7993X5)
  • F9 FABRICATED HEAVY DUTY HOUSING
  • 31 SPLINE PERFORMANCE AXLE PACKAGE
  • BUILT TO THE STOCK OVERALL WIDTH (59 1/2") AND PINION OFFSET SPECS
    • 59 1/2" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
  • STOCK SUSPENSION BRACKETS ARE INSTALLED IN THE STOCK LOCATION FOR AN EASY BOLT-IN INSTALLATION, AND URETHANE UPPER CONTROL ARM BUSHINGS ARE INSTALLED IN THE UPPER CONTROL ARM HOUSING BRACKETS
  • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
  • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DONT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS
  • AXLES INCLUDE:
    • STOCK 5 X 4 1/2" WHEEL BOLT PATTERN
    • WHEEL STUDS INSTALLED
    • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
    • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
  • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO", WHICH FIT THE CURRIE BRAKES PERFECTLY

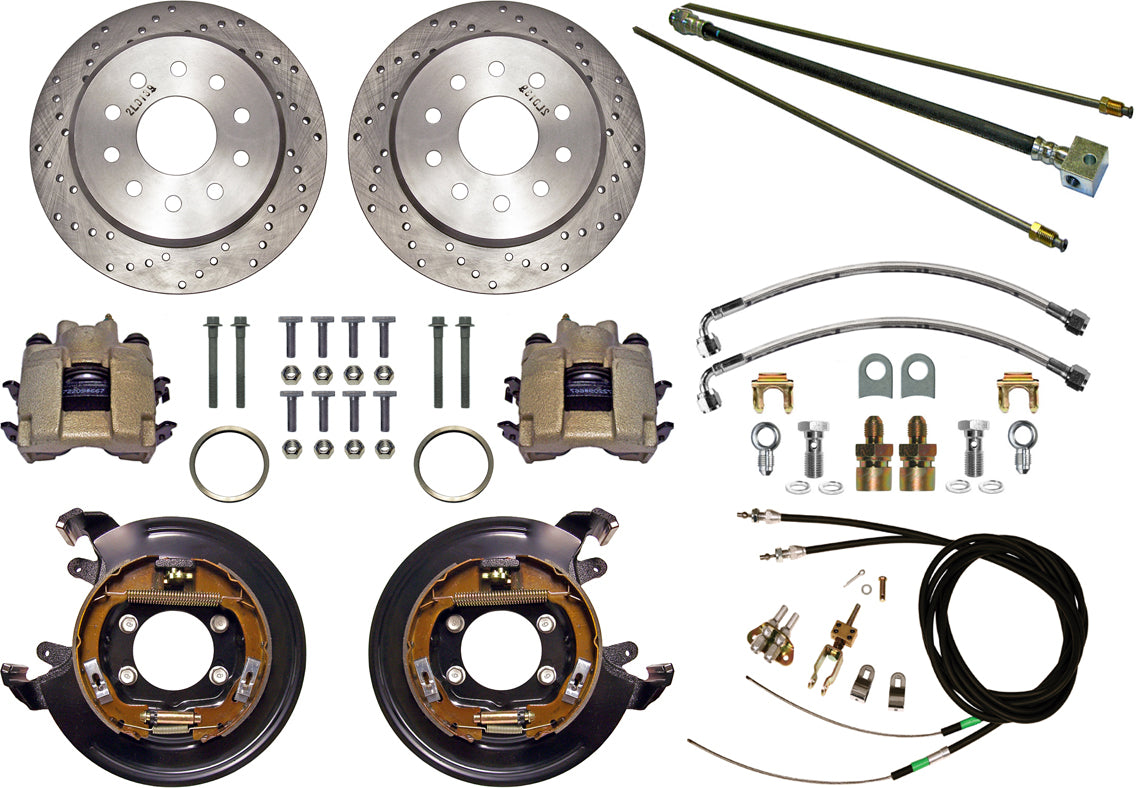

• CURRIE 11" DRILLED DISC BRAKE KIT (CURRIE PART #CE-6012D6):
  • CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
  • THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS
  • BRAKE KIT INCLUDES:
    • CROSS-DRILLED, 0.50" THICK X 11.00" O.D. ROTORS WITH HATS
      • FEATURING BOTH 5 X 4 1/2" AND 5 X 4 3/4" BOLT PATTERNS
    • SINGLE PISTON BRAKE CALIPERS WITH PADS
    • BACKING PLATE / CALIPER MOUNTING BRACKET PLATES WITH DRUM-STYLE PARKING BRAKE ASSEMBLIES INSTALLED
    • NECESSARY BOLTS, NUTS, AND REGISTERS TO INSTALL THE BRAKING SYSTEM ON BOTH REAR WHEELS
• PARKING BRAKE CABLE KIT:
  • CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION
• FLEXLINE KIT:
  • STEEL BRAIDED BRAKE LINES, BANJO FITTINGS & BOLTS, AND CHASSIS FITTINGS TO CONNECT THE CALIPERS TO THE HARD LINES
  • ALSO INCLUDES WELD-ON LINE TABS TO INSTALL ON YOUR REAR END
• HARD LINE KIT:
  • STEEL HARD BRAKE LINE TUBING TO CONNECT THE CHASSIS FITTINGS TO THE INCLUDED RUBBER HOSE
  • RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINE ON THE FRAME
  • NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
