79-93 MUSTANG 5L REAR END/BRAKES,11"DRUM

FITS:

• 1979-1993 FORD MUSTANG
  • 5-LUG APPLICATIONS ONLY
• 1979-1993 FORD THUNDERBIRD
  • 5-LUG APPLICATIONS ONLY; MAKE SURE TO VERIFY THAT YOUR STOCK REAR END MATCHES THE 59 1/2" WIDTH
• 1979-1983 FORD FAIRMONT
  • 5-LUG APPLICATIONS ONLY; MAKE SURE TO VERIFY THAT YOUR STOCK REAR END MATCHES THE 59 1/2" WIDTH
• 1979-1986 MERCURY CAPRI
  • 5-LUG APPLICATIONS ONLY
• 1979-1993 MERCURY COUGAR
  • 5-LUG APPLICATIONS ONLY
• 1979-1983 MERCURY ZEPHYR
  • 5-LUG APPLICATIONS ONLY; MAKE SURE TO VERIFY THAT YOUR STOCK REAR END MATCHES THE 59 1/2" WIDTH

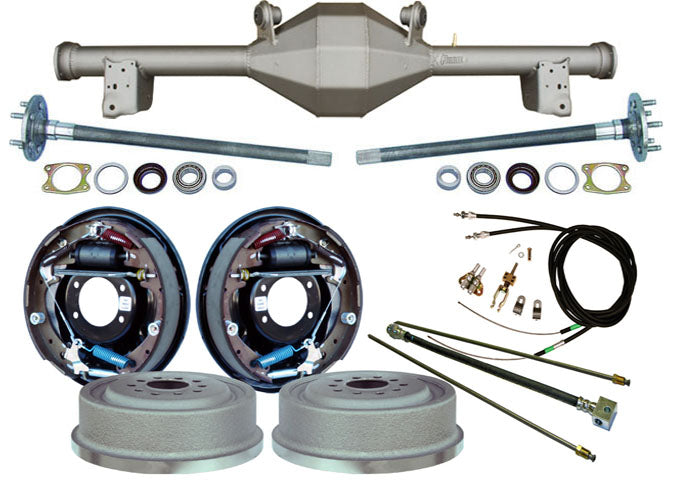

  INCLUDES:

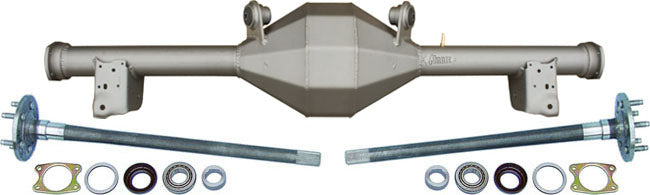

  • CURRIE F9 FABRICATED REAR END WITH 31 SPLINE AXLES (CURRIE #CE-FDM7993X5)
    • F9 FABRICATED HEAVY DUTY HOUSING
    • 31 SPLINE PERFORMANCE AXLE PACKAGE
    • BUILT TO THE STOCK OVERALL WIDTH (59 1/2") AND PINION OFFSET SPECS
      • 59 1/2" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
    • STOCK SUSPENSION BRACKETS ARE INSTALLED IN THE STOCK LOCATION FOR AN EASY BOLT-IN INSTALLATION, AND URETHANE UPPER CONTROL ARM BUSHINGS ARE INSTALLED IN THE UPPER CONTROL ARM HOUSING BRACKETS
    • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
    • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DONT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS
    • AXLES INCLUDE:
      • STOCK 5 X 4 1/2" WHEEL BOLT PATTERN
      • WHEEL STUDS INSTALLED
      • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
      • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
    • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO", WHICH FIT THE CURRIE DRUMS PERFECTLY

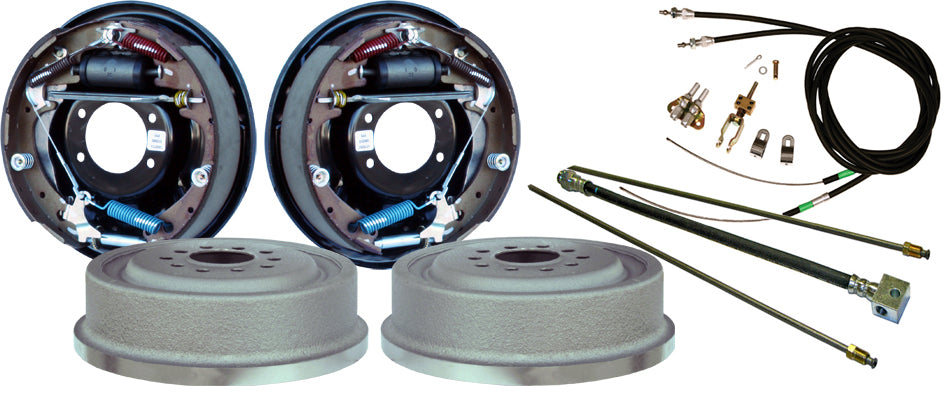

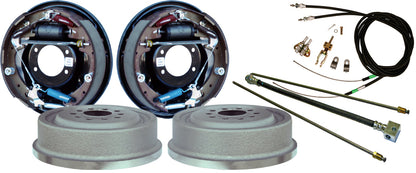

  • CURRIE 11" HYDRAULIC DRUM BRAKE KIT (CURRIE PART #CE-6005AD):
    • CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
    • BRAKE KIT INCLUDES:
      • 11" HYDRAULIC DRUMS
        • 5 X 4 1/2" BOLT PATTERN
        • 2 1/4" X 11"
        • 2.80" CENTER REGISTER HOLE
        • INCLUDES CABLE OPERATED PARKING BRAKE MECHANISMS
  • PARKING BRAKE CABLE KIT:
    • CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION
  • HARD LINE KIT:
    • STEEL HARD BRAKE LINE TUBING TO CONNECT THE CURRIE DRUMS TO THE INCLUDED RUBBER HOSE
    • RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINE ON THE FRAME
    • NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
