66-77 BRONCO REAR END & BRAKES,DISC,DRILLED ROTORS

66-77 BRONCO REAR END & BRAKES,DISC,DRILLED ROTORS

SKU:CUR FDB6677X-K3

Regular price $2,599.99
Regular price Sale price $2,599.99
This item requires an additional shipping fee of $60 over standard shipping.
View full details

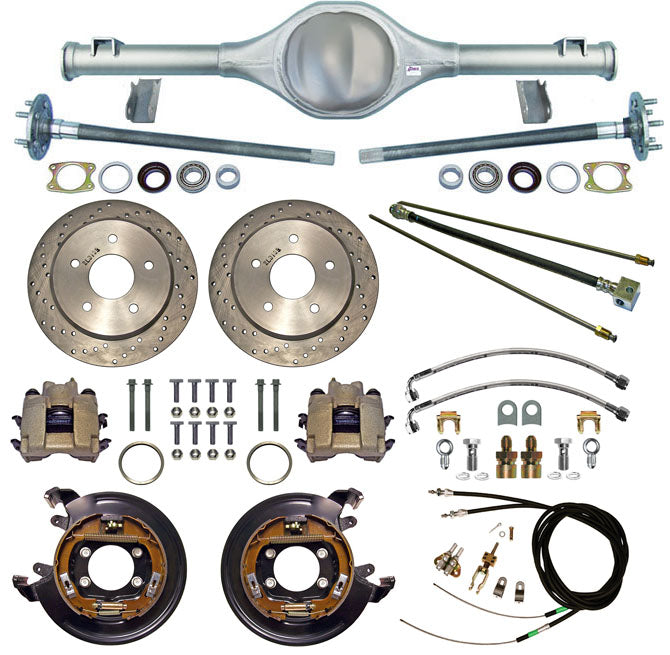

  • CURRIE ENTERPRISES REAR END WITH 31 SPLINE AXLES WITH CURRIE DRILLED DISC BRAKE KIT, PARKING BRAKE CABLE KIT, AND BRAKE LINE KIT FOR THE APPLICATIONS BELOW (PART #FDB6677X-K3). CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.
  • FITS:

    • 1966-1977 FORD BRONCO

    INCLUDES:

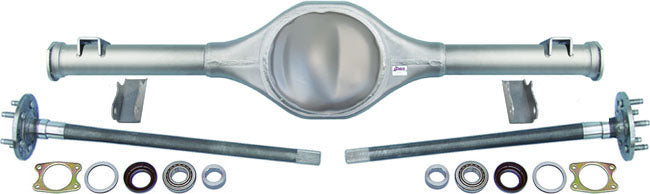

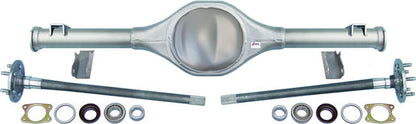

    • CURRIE 9-PLUS NOTCH-BACK REAR END WITH 31 SPLINE AXLES (CURRIE #CE-FDB6677X)
      • 9-PLUS NOTCHBACK HEAVY DUTY HOUSING
      • 31 SPLINE PERFORMANCE AXLE PACKAGE
      • BUILT TO THE STOCK OVERALL WIDTH (58") AND PINION OFFSET SPECS
        • 58" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
      • HEAVY-DUTY 2 1/4" WIDE LEAF SPRING PADS ARE INSTALLED ON THE UNIT AND SHOCK MOUNTS ARE SENT LOOSE, SO THAT YOU MAY TEST-FIT THEM WITH YOUR BRAKES BEFORE WELDING THEM ON
      • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
      • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DONT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS
      • AXLES INCLUDE:
        • STOCK 5 X 5 1/2" WHEEL BOLT PATTERN
        • WHEEL STUDS INSTALLED
        • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
        • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
      • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO", WHICH FIT THE CURRIE BRAKES PERFECTLY

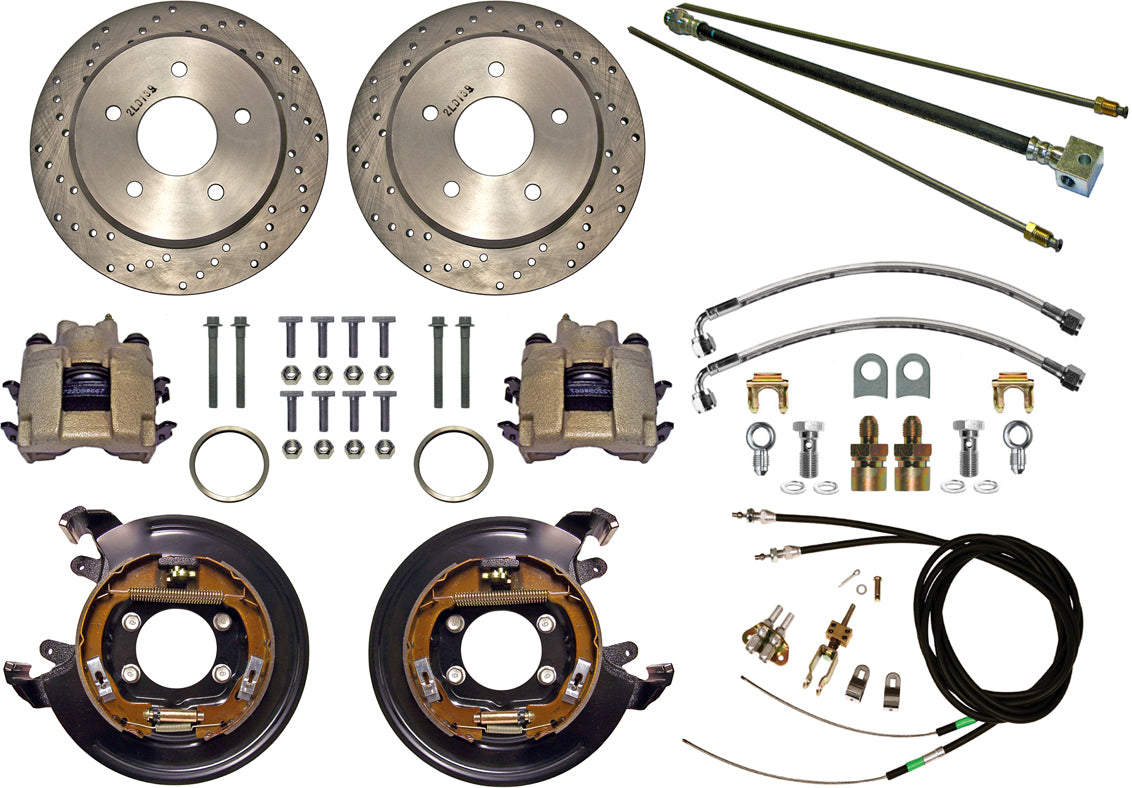

    • CURRIE 11" DRILLED DISC BRAKE KIT (CURRIE PART #CE-6012D4):
      • CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
      • THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS
      • BRAKE KIT INCLUDES:
        • CROSS-DRILLED, 0.50" THICK X 11.00" O.D. ROTORS WITH HATS
          • 5 X 5 1/2" BOLT PATTERN
        • SINGLE PISTON BRAKE CALIPERS WITH PADS
        • BACKING PLATE / CALIPER MOUNTING BRACKET PLATES WITH DRUM-STYLE PARKING BRAKE ASSEMBLIES INSTALLED
        • NECESSARY BOLTS, NUTS, AND REGISTERS TO INSTALL THE BRAKING SYSTEM ON BOTH REAR WHEELS
    • PARKING BRAKE CABLE KIT:
      • CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION
    • FLEXLINE KIT:
      • STEEL BRAIDED BRAKE LINES, BANJO FITTINGS & BOLTS, AND CHASSIS FITTINGS TO CONNECT THE CALIPERS TO THE HARD LINES
      • ALSO INCLUDES WELD-ON LINE TABS TO INSTALL ON YOUR REAR END
    • HARD LINE KIT:
      • STEEL HARD BRAKE LINE TUBING TO CONNECT THE CHASSIS FITTINGS TO THE INCLUDED RUBBER HOSE
      • RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINE ON THE FRAME
      • NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
