REAR KIT,HOT ROD,UNIVERSAL,50"

REAR KIT,HOT ROD,UNIVERSAL,50"

CUR CE-UHR50INX

$1,199.99
$1,199.99
This item requires an additional shipping fee of $50 over standard shipping.
View full details

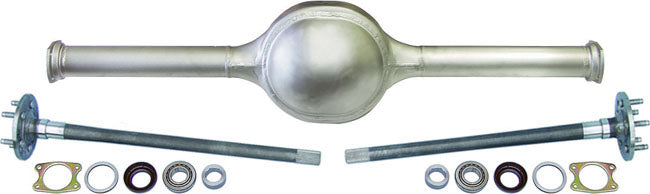

  • CURRIE ENTERPRISES UNIVERSAL 50" HOT ROD ROUND-BACK REAR END WITH 31 SPLINE FLANGED AXLES FOR THE APPLICATIONS BELOW (CURRIE PART #CE-UHR50INX).

    • FEATURES:

    • 9-PLUS ROUNDBACK HEAVY DUTY HOUSING
    • 31 SPLINE PERFORMANCE AXLE PACKAGE
    • 50" OVERALL WIDTH:
      • 52" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
      • WE ALSO HAVE THESE REAR ENDS AVAILABLE IN SEVERAL OTHER WIDTHS
    • HOUSING IS BUILT HOUSING-CENTERED WITH A 0.94" PINION OFFSET
    • STEEL 3" DIAMETER TUBES
    • SMALL WEBBED-STYLE CENTER EASILY ACCEPTS TRIANGULATED 4-LINK BRACKETS
    • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DO NOT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS

    AXLES INCLUDE:

    • BOTH 5 X 4 1/2" AND 5 X 4 3/4" WHEEL BOLT PATTERNS
    • INCLUDES ONE SET OF 7/16" STUDS AND ONE SET OF 1/2" STUDS
    • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
    • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
    • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO":
