REAR KIT,87-95 JEEP,YJ

REAR KIT,87-95 JEEP,YJ

CUR CE-JYJ8795X

$1,499.99
$1,499.99
This item requires an additional shipping fee of $50 over standard shipping.
View full details

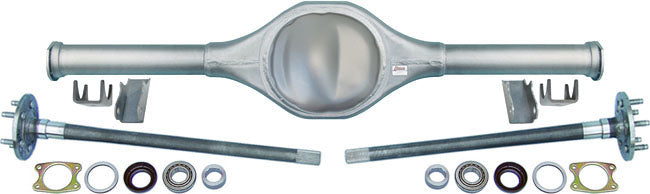

  • CURRIE ENTERPRISES 9-PLUS NOTCH-BACK REAR END WITH 31 SPLINE FLANGED AXLES FOR THE APPLICATIONS BELOW (CURRIE PART #CE-JYJ8795X). CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

    • FITS:

    • JEEP:
      • 1987-1995 YJ WRANGLER, INCLUDING SAHARA, RENEGADE, LAREDO, RIO GRANDE

    FEATURES:

    • 9-PLUS NOTCHBACK HEAVY DUTY HOUSING
    • 31 SPLINE PERFORMANCE AXLE PACKAGE
    • BUILT TO THE STOCK OVERALL WIDTH (60") AND PINION OFFSET SPECS
      • 60" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
    • HEAVY DUTY 2 1/4 WIDE LEAF SPRING PADS AND STOCK STYLE SHOCK MOUNTS ARE INCLUDED, BUT NOT INSTALLED ON THE UNIT SO THAT YOU MAY SET THE CORRECT PINION ANGLE OF THE UNIT BEFORE WELDING THEM ON
    • NO TRAC BAR MOUNTING PROVISIONS ON HOUSING; TRAC BAR MAY BE REMOVED
    • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
    • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DO NOT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS

    AXLES INCLUDE:

    • AXLES ARE DRILLED FOR BOTH 5 X 4 1/2" AND 5 X 5 1/2" WHEEL BOLT PATTERNS
    • WHEEL STUDS INSTALLED IN THE STOCK 5 X 4 1/2" PATTERN
    • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
    • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON

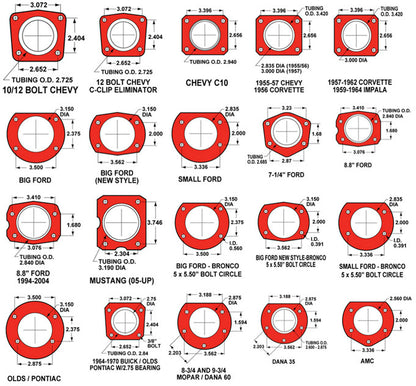

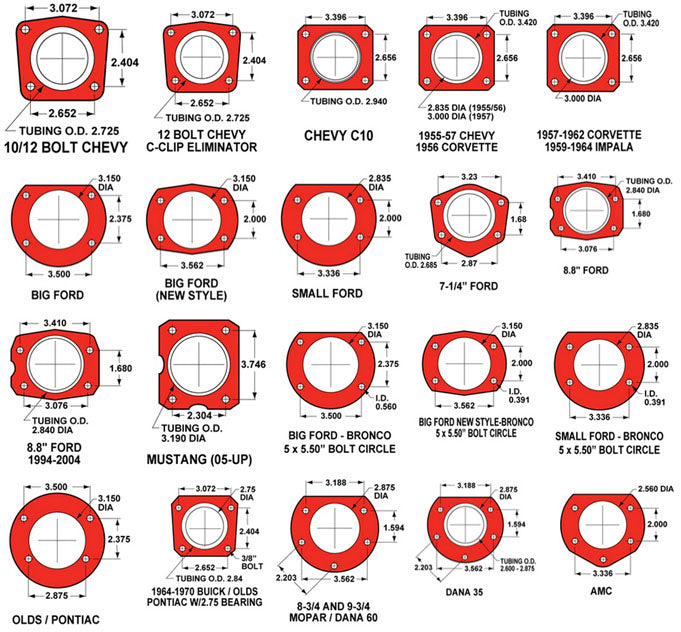

    • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO":
    Currie Jeep Rear Ends
