REAR KIT,84-01 JEEP,XJ CHEROKEE

REAR KIT,84-01 JEEP,XJ CHEROKEE

CUR CE-JXJ8403X

$1,499.99
$1,499.99
This item requires an additional shipping fee of $50 over standard shipping.
View full details

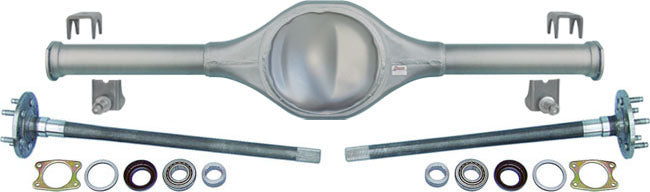

  • CURRIE ENTERPRISES 9-PLUS NOTCH-BACK REAR END WITH 31 SPLINE FLANGED AXLES FOR THE APPLICATIONS BELOW (CURRIE PART #CE-JXJ8403X, ALSO COMMONLY REFERRED TO AS A CE-JXJ8401X). CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

    • FITS:

    • JEEP:
      • 1984-2001 XJ CHEROKEE, GRAND WAGONEER, AND WAGONEER, INCLUDING CLASSIC, LIMITED, AND SPORT

    FEATURES:

    • 9-PLUS NOTCHBACK HEAVY DUTY HOUSING
    • 31 SPLINE PERFORMANCE AXLE PACKAGE
    • BUILT TO THE STOCK OVERALL WIDTH (60 5/8") AND PINION OFFSET SPECS
      • 60 5/8" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
    • HEAVY DUTY 2 1/4" WIDE LEAF SPRING PADS AND XJ SPECIFIC SHOCK MOUNTS ARE INCLUDED WITH THE UNIT AND MUST BE SET TO DESIRED DEGREE BY THE CUSTOMER AND WELDED AT TIME OF INSTALLATION
    • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
    • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DO NOT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS

    AXLES INCLUDE:

    • AXLES ARE DRILLED FOR BOTH 5 X 4 1/2" AND 5 X 5 1/2" WHEEL BOLT PATTERNS
    • WHEEL STUDS INSTALLED IN THE STOCK 5 X 4 1/2" PATTERN
    • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
    • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
    • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO":
