REAR KIT,97-06 JEEP,TJ & LJ UNLIMITED

REAR KIT,97-06 JEEP,TJ & LJ UNLIMITED

CUR CE-JTJ9704X

$1,999.99
$1,999.99
This item requires an additional shipping fee of $50 over standard shipping.
View full details

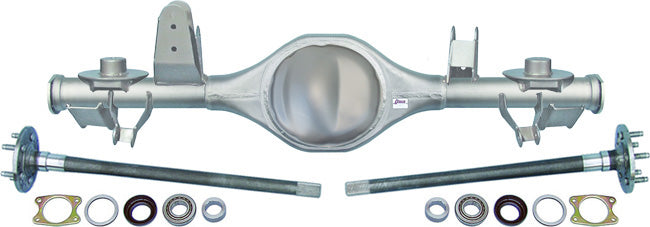

  • CURRIE ENTERPRISES 9-PLUS NOTCH-BACK REAR END WITH 31 SPLINE FLANGED AXLES FOR THE APPLICATIONS BELOW (CURRIE PART #CE-JTJ9704X). CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

    • FITS:

    • JEEP:

      • 1997-2006 TJ WRANGLER, INCLUDING RUBICON, SAHARA, SPORT, TOMB RAIDER, UNLIMITED, AND X

    FEATURES:

    • 9-PLUS NOTCHBACK HEAVY DUTY HOUSING
    • 31 SPLINE PERFORMANCE AXLE PACKAGE
    • BUILT TO THE STOCK OVERALL WIDTH (60 1/2") AND PINION OFFSET SPECS
    • 60 1/2" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
    • ALL STOCK SUSPENSION BRACKETS ARE INSTALLED IN THE STOCK LOCATION FOR AN EASY BOLT-IN INSTALLATION INCLUDING TRAC BAR AND SHOCK MOUNTS
    • MULTIPLE TRAC BAR MOUNTING HOLES FOR VARYING LIFT AMOUNTS
    • SPRING INDEXING HUBS ARE PRE-DRILLED AND THREADED FOR AFTERMARKET BUMPSTOP KITS
    • SHOCK MOUNTS ARE ROLLED BACK TO ALLOW SHOCK BODY TO CLEAR SPRING PAD
    • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
    • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DON T CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS.

    AXLES INCLUDE:

    • AXLES ARE DRILLED FOR BOTH 5 X 4 1/2" AND 5 X 5 1/2" WHEEL BOLT PATTERNS

    • WHEEL STUDS INSTALLED IN THE STOCK 5 X 4 1/2" PATTERN

    • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES

    • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON

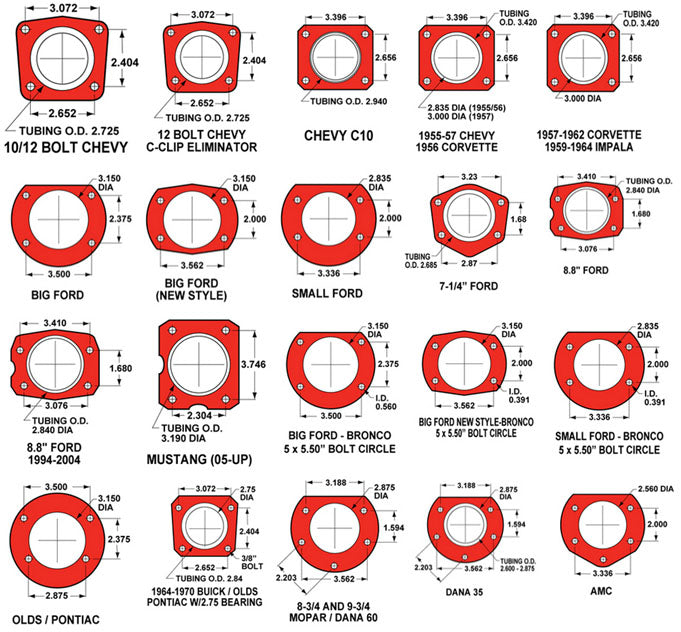

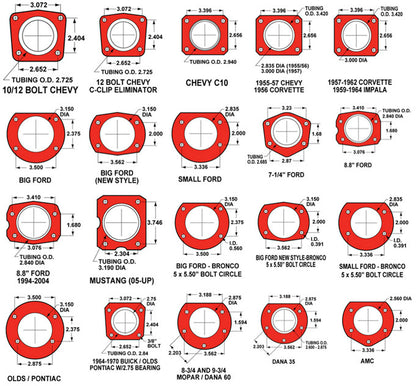

    • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO":
