REAR KIT,82-86 JEEP,CJ

REAR KIT,82-86 JEEP,CJ

CUR CE-JCJ8286X

$1,999.99
$1,999.99
This item requires an additional shipping fee of $50 over standard shipping.
View full details

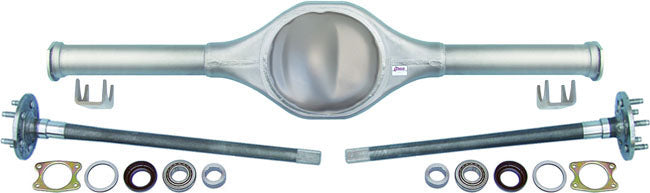

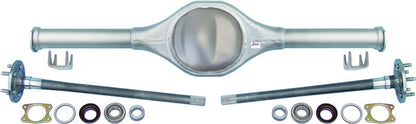

  • CURRIE ENTERPRISES 9-PLUS NOTCH-BACK REAR END WITH 31 SPLINE FLANGED AXLES FOR THE APPLICATIONS BELOW (CURRIE PART #CE-JCJ8286X). CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

    • FITS:

    • JEEP:
      • 1982-1986 CJ5, CJ7, CJ8 (SCRAMBLER), LAREDO, AND RENEGADE

    FEATURES:

    • 9-PLUS NOTCHBACK HEAVY DUTY HOUSING
    • 31 SPLINE PERFORMANCE AXLE PACKAGE
    • BUILT TO THE STOCK OVERALL WIDTH (56") AND PINION OFFSET SPECS
      • 56" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
    • HEAVY DUTY 2 1/4" WIDE LEAF SPRING PADS ARE INCLUDED, BUT NOT INSTALLED ON THE UNIT SO THAT YOU MAY SET THE CORRECT PINION ANGLE OF THE UNIT BEFORE WELDING THEM ON
    • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
    • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DO NOT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS

    AXLES INCLUDE:

    • STOCK 5 X 5 1/2" WHEEL BOLT PATTERN
    • WHEEL STUDS INSTALLED
    • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
    • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON

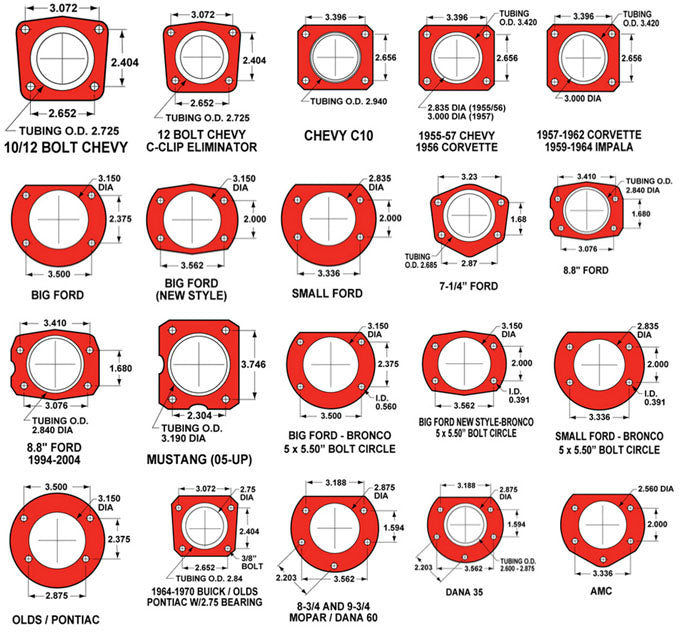

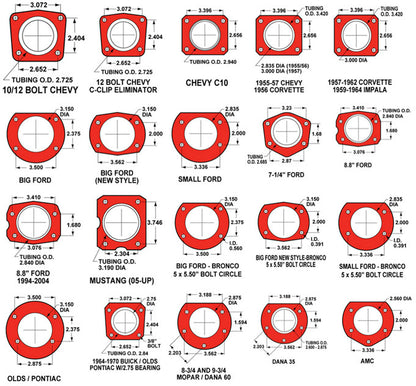

    • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO":

    • WE HAVE CURRIE DISC BRAKE KITS AVAILABLE TO BOLT DIRECTLY ON THIS REAR END
