REAR KIT,82-97 S-10 PICKUP,2 WD,CHEVY

REAR KIT,82-97 S-10 PICKUP,2 WD,CHEVY

CUR CE-GMS8297X

$1,399.99
$1,399.99
This item requires an additional shipping fee of $50 over standard shipping.
View full details

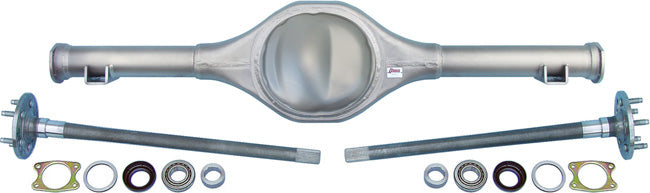

  • CURRIE ENTERPRISES 9-PLUS NOTCH-BACK REAR END WITH 31 SPLINE FLANGED AXLES FOR THE APPLICATIONS BELOW (CURRIE PART #CE-GMS8297X). CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

    • FITS:

    • CHEVROLET:
      • 1982-1997 2WD S-10 AND 2WD S-10 BLAZER, 2-DOOR AND 4-DOOR
    • GMC:
      • 1982-1997 2WD S-15 AND 2WD S-15 JIMMY, 2-DOOR AND 4-DOOR
    • OLDSMOBILE:
      • 1991-1994 2WD BRAVADA
    FEATURES:
    • 9-PLUS NOTCHBACK HEAVY DUTY HOUSING
    • 31 SPLINE PERFORMANCE AXLE PACKAGE
    • BUILT TO THE STOCK OVERALL WIDTH (54 1/2") AND PINION OFFSET SPECS
    • 54 1/2" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
    • HEAVY DUTY 2 1/4" WIDE LEAF SPRING PADS ARE INCLUDED AND INSTALLED AT STOCK SPECS
    • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
    • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DO NOT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS

    AXLES INCLUDE:

    • STOCK 5 X 4 3/4" WHEEL BOLT PATTERN
    • WHEEL STUDS INSTALLED
    • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
    • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON

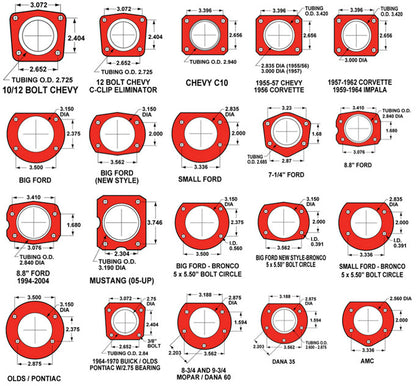

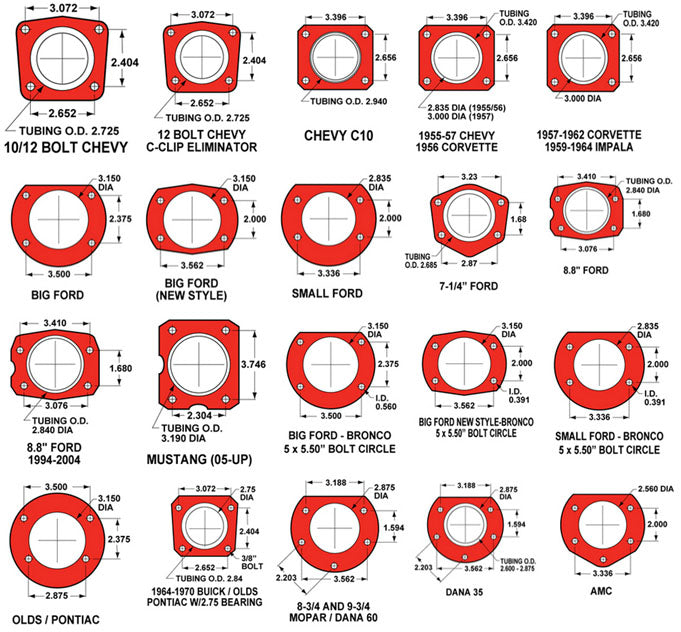

    • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO"
    Currie GM Rear Ends > GM S-10/15, 1982-1997
