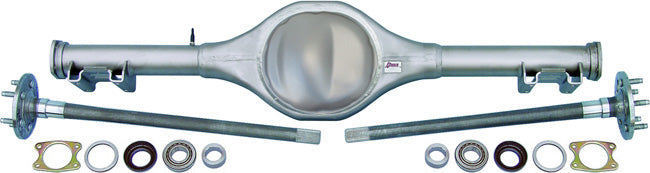

REAR KIT,68-72 GM X-BODY/NOVA,MONO

• CHEVROLET:
• 1968-1974 CHEVY II & NOVA WITH MONO-LEAF (SINGLE LEAF) SPRINGS
• BUICK:
• 1973-1974 APOLLO WITH MONO-LEAF (SINGLE LEAF) SPRINGS
• OLDSMOBILE:
• 1973-1974 OMEGA WITH MONO-LEAF (SINGLE LEAF) SPRINGS
• PONTIAC:
• 1971-1974 VENTURA WITH MONO-LEAF (SINGLE LEAF) SPRINGS
• WE ALSO HAVE THESE REAR ENDS FOR MULTI-LEAF VEHICLES AS WELL

• 9-PLUS NOTCHBACK HEAVY DUTY HOUSING
• 31 SPLINE PERFORMANCE AXLE PACKAGE
• BUILT TO THE STOCK OVERALL WIDTH (60 1/4") AND PINION OFFSET SPECS
• 60 1/4" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
• HEAVY DUTY REPRODUCTIONS OF THE STOCK GM MONO LEAF SPRING PADS ARE INSTALLED IN THE STOCK LOCATION FOR AN EASY BOLT IN INSTALLATION
• HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
• THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DON T CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS

AXLES INCLUDE:

• STOCK 5 X 4 3/4" WHEEL BOLT PATTERN
• WHEEL STUDS INSTALLED
• 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
• TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
• THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO":
