REAR KIT,62-67 GM X-BODY/NOVA,MONO

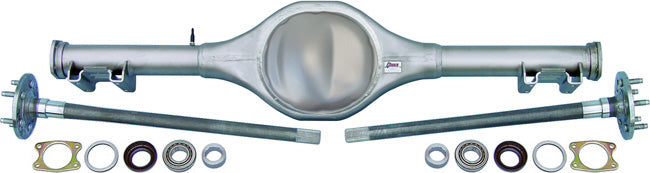

BRAND NEW CURRIE ENTERPRISES 9-PLUS NOTCH-BACK REAR END WITH 31 SPLINE FLANGED AXLES

NOTE: CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

FITS:

• CHEVROLET: 1962-1967 CHEVY II WITH MONO-LEAF SPRINGS

FEATURES:

• 9-PLUS NOTCHBACK HEAVY DUTY HOUSING
• 31 SPLINE PERFORMANCE AXLE PACKAGE
• BUILT TO THE STOCK OVERALL WIDTH (57 7/8") AND PINION OFFSET SPECS
• 57 7/8" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
• HEAVY DUTY REPRODUCTIONS OF THE STOCK GM MONO LEAF SPRING PADS ARE INSTALLED IN THE STOCK LOCATION FOR AN EASY BOLT IN INSTALLATION
• HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
• THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK)
• AXLES INCLUDE:
• STOCK 5 X 4 3/4" WHEEL BOLT PATTERN
• WHEEL STUDS INSTALLED
• 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
• TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
• THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO"
