REAR KIT 88-98 GM 1500 2WD TRUCK,5 LUG

Brand New Currie Enterprises Rear End with 31 Spline Axles for the applications below (Part #CE-GMC8898X5). Currie Crate Rear Ends are designed to be a bolt-in upgrade.

Fits:

• Chevrolet Trucks:
  • Will Fit All 1988-1998 C1500 2wd Trucks with 5-Lug wheels
• GMC Trucks:
  • Will Fit All 1988-1998 C1500 2wd Trucks with 5-Lug wheels
• ***We have this same Rear End with 6-Lug axles here***

Includes:

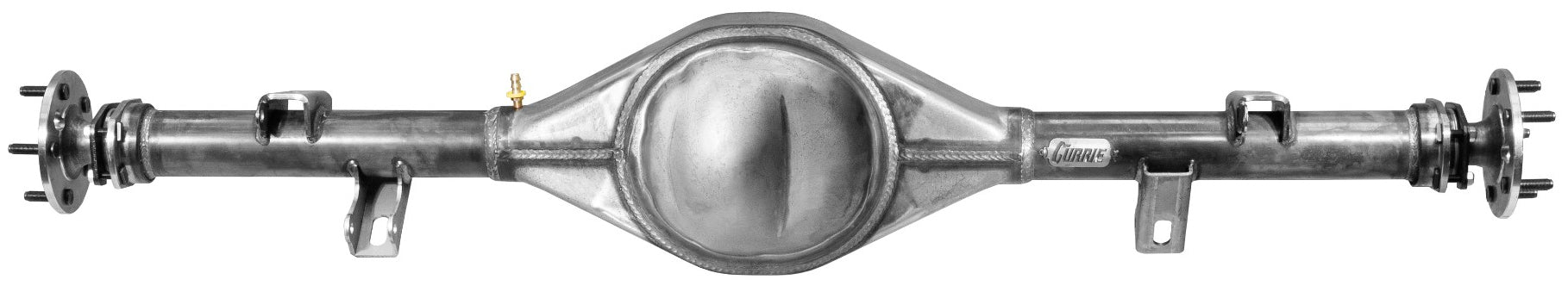

• Currie 9-Plus Centurian Notch-Back Rear End with 31 Spline Axles
  • 31 Spline performance axle package
  • Built to the stock overall width (65") and pinion offset specs
    • 65" is measured outside-of-axle-flange to outside-of-axle-flange, in other words, where the wheel bolts on to where the wheel bolts on
  • Includes heavy-duty leaf spring pads and shock mounts weld-on in the stock location
  • Housing includes all 3rd member studs installed
  • These are 9" Ford center sections, so they do require a 9" Ford 3rd Member (sometimes referred to as a Chunk);  if you don't currently have one, we do offer them in several ratios.
  • Axles include:
    • Stock 5 x 5" wheel bolt pattern
    • 14mm Wheel studs installed
    • 1/4" Thick heavy-duty bearing retainer plates
    • Tapered Timken style wheel bearings pressed on
  • The Axle flanges on this rear end are the Big Bearing Ford (New Style), also known as "Torino", which fit the Wilwood brakes perfectly
