REAR KIT 70-72 GM TRUCK,5 LUG,TRUCK TRAILING ARMS

REAR KIT 70-72 GM TRUCK,5 LUG,TRUCK TRAILING ARMS

CUR CE-GMC70725

$1,499.99
$1,499.99
This item requires an additional shipping fee of $50 over standard shipping.
View full details

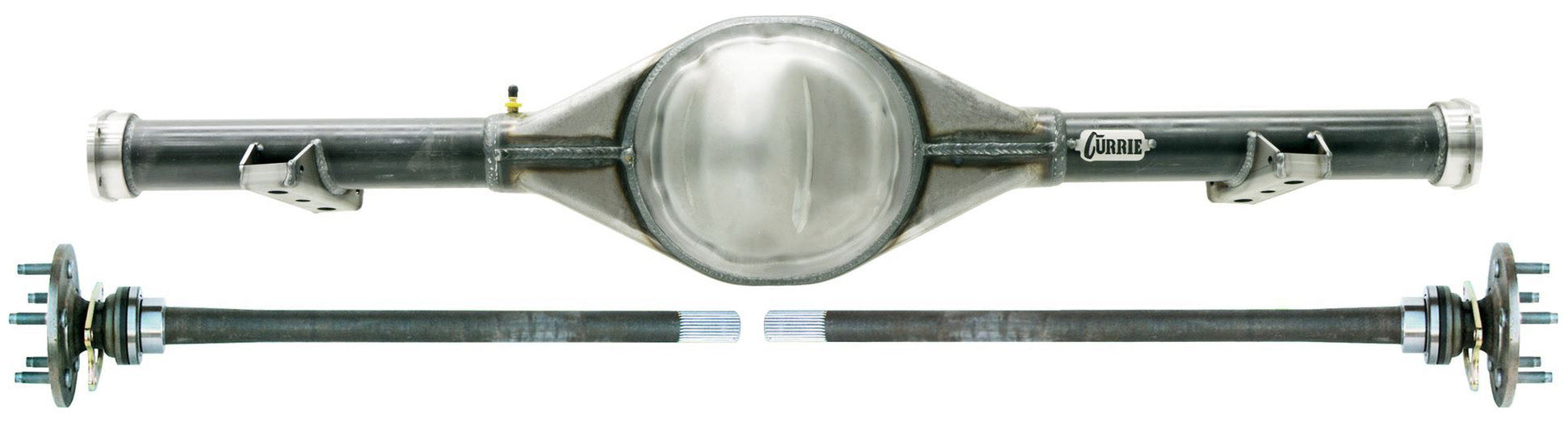

  • BRAND NEW CURRIE ENTERPRISES 9-PLUS CENTURION NOTCH-BACK REAR END WITH 31 SPLINE FLANGED AXLES FOR THE APPLICATIONS BELOW (CURRIE PART #CE-GMC7072X5). CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

    • FITS:

    • CHEVROLET TRUCKS:
      • WILL FIT ALL LATE-1970 TO 1972 C-10 2WD TRUCKS WITH 5-LUG WHEELS
    • GMC TRUCKS:
      • WILL FIT ALL LATE-1970 TO 1972 C15/C1500 2WD TRUCKS WITH 5-LUG WHEELS
    • ***WE HAVE THIS SAME REAR END WITH 6-LUG AXLES***

    FEATURES:

    • 9-PLUS CENTURION NOTCHBACK HEAVY DUTY HOUSING
    • 31 SPLINE PERFORMANCE AXLE PACKAGE
    • BUILT TO THE STOCK OVERALL WIDTH (63 5/8") AND PINION OFFSET SPECS
      • 63 5/8" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
    • INCLUDES HEAVY-DUTY GM TRUCK TRAILING ARM PADS.
    • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
    • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DONT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS.
    • AXLES INCLUDE:
      • STOCK 5 X 5" WHEEL BOLT PATTERN
      • 1/2" WHEEL STUDS INSTALLED
      • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
      • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
    • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO":
