REAR KIT 60-62 GM TRUCK,6 LUG

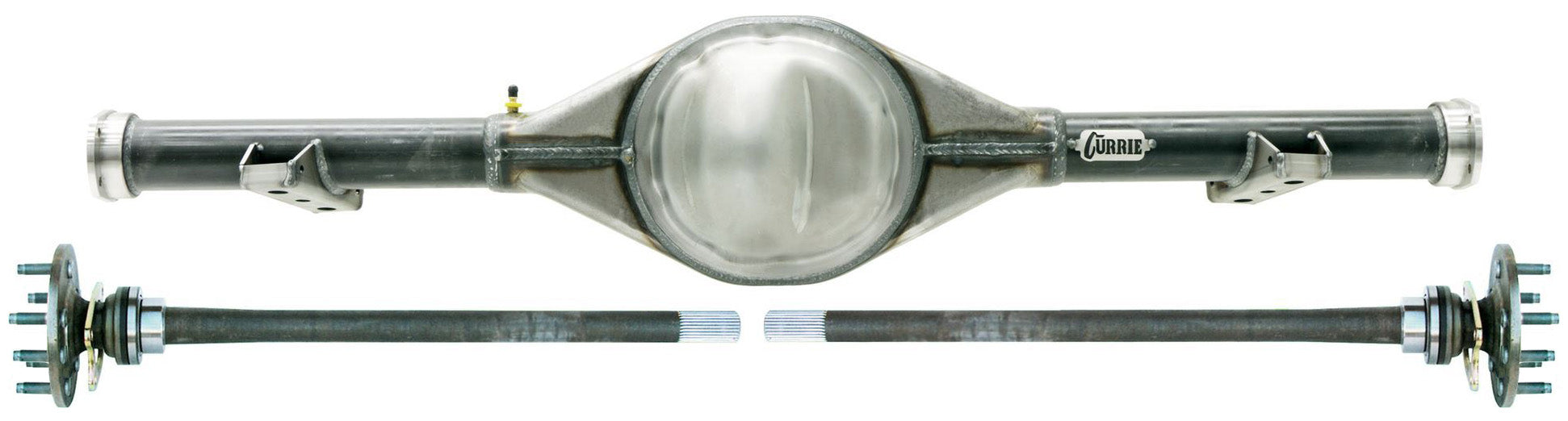

BRAND NEW CURRIE ENTERPRISES 9-PLUS CENTURION NOTCH-BACK REAR END WITH 31 SPLINE FLANGED AXLES FOR THE APPLICATIONS BELOW (CURRIE PART #CE-GMC6062X6). CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

FITS:

• CHEVROLET C-10 TRUCKS:
  • WILL FIT ALL 1960 TO 1962 C-10 2WD TRUCKS WITH 6-LUG WHEELS
• CHEVROLET C-10 PANELS:
  • **1960 TO 1962 C-10 PANEL**
    • **THIS REAR END WILL FIT THESE C-10 PANELS IF THEY HAVE TRAILING ARMS; IT DOESNT HAVE THE PADS TO ACCEPT LEAF SPRINGS**
• GMC TRUCKS:
  • **1960 TO 1962 C15/C1500 2WD TRUCKS WITH 6-LUG WHEELS**
    • **THIS REAR END WILL FIT THESE GMC TRUCKS IF THEY HAVE TRAILING ARMS; IT DOESNT HAVE THE PADS TO ACCEPT LEAF SPRINGS**

FEATURES:

• 9-PLUS CENTURION NOTCHBACK HEAVY DUTY HOUSING
• 31 SPLINE PERFORMANCE AXLE PACKAGE
• BUILT TO THE STOCK OVERALL WIDTH (62 1/8") AND PINION OFFSET SPECS
  • 62 1/8" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
• ALL NEW HEAVY-DUTY GM TRUCK TRAILING ARM PADS ARE INSTALLED IN THE STOCK LOCATION (43 1/2" CENTER-TO-CENTER AT 12 DEGREES) FOR AN EASY BOLT IN INSTALLATION
• HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
• GMT6062X6
• THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DONT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS
• AXLES INCLUDE:
  • 6 X 5 1/2" WHEEL BOLT PATTERN
  • 7/16" WHEEL STUDS INSTALLED
  • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
  • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
• THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO":
